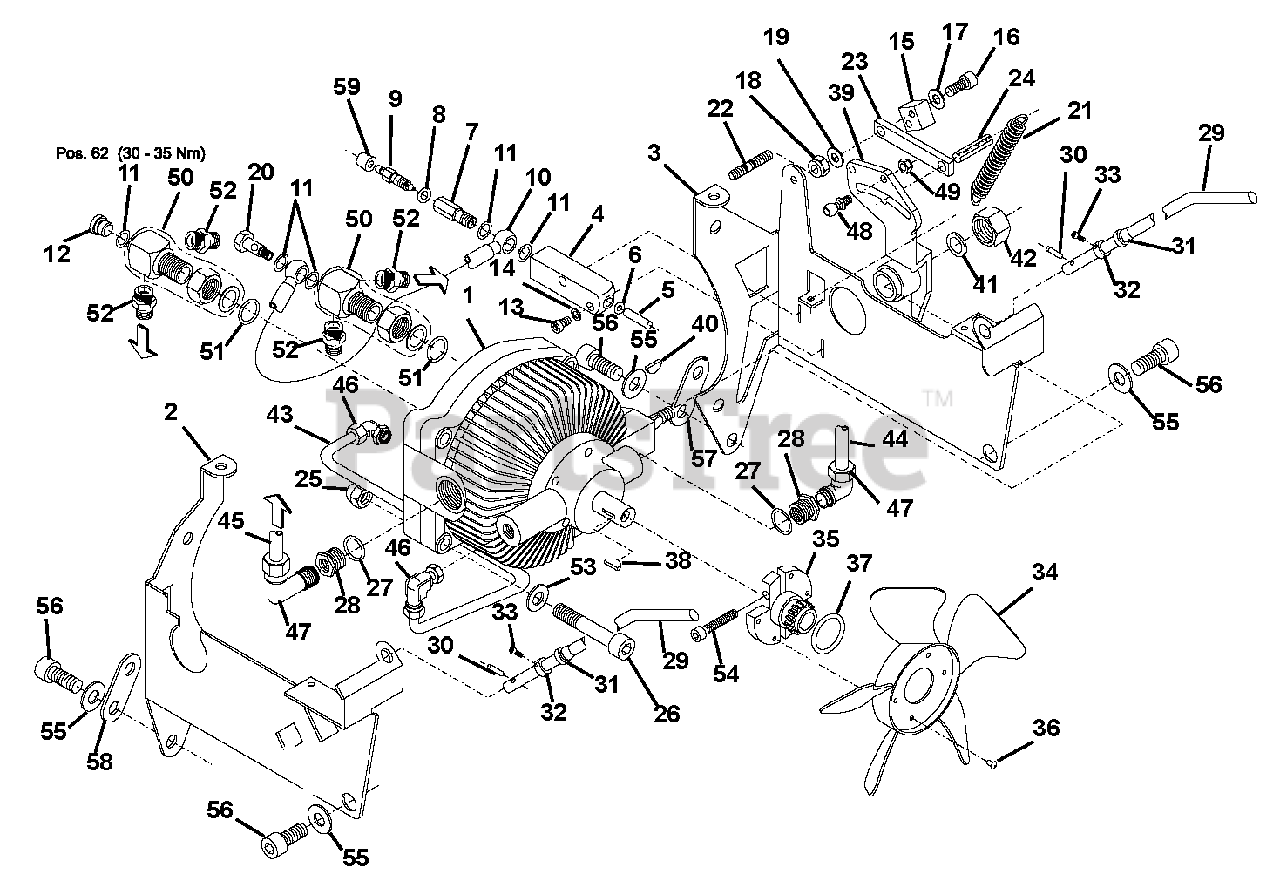

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydrostat Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Hydrostat Parts Diagram

  • Title

1

Gravely 00838400

Hydraulic Pump

$

$

Not available

Gravely 00838500

Axe, Input

$

$

Not available

2

Gravely 00838600

Bracket, Left Hydrostat

$

$

Not available

3

Gravely 00838700

Bracket, Right Hydrostat

$

$

Not available

4

Gravely 00838800

Bushing, Guide

$

$

Not available

5

Gravely 00838900

Piston

$

$

Not available

6

Gravely 00839000

O-Ring, D3770 6,07 x 1,78

$

$

Not available

7

Gravely 00839100

Bolt, Hollow Special

$

$

Not available

8

Gravely 08657500

O-Ring, D3770 6.00 x 3.00

$

$

Not available

9

Gravely 08657400

Bolt

$

$

Not available

10

Gravely 00839200

Hydraulic Hose

$

$

Not available

11

Gravely 00839300

Ring, Gasket

$

$

Not available

12

Gravely 00839400

Plug, Drain D910 Right 1/8"

$

$

Not available

13

Gravely 00839500

Screw, Cylinder, D912 Metric 4 x 12

$

$

Not available

14

Gravely 08660500

Washer, Form Metric 4.1/10.2 x 1.0

$

$

Not available

15

Gravely 00839600

Bearing

$

$

Not available

16

Gravely 08668400

Screw, D912 Metric 6 x 12

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 08620600

Washer, M6

$

$

Not available

18

Gravely 08625000

Nut, Lock, D985 M6

$

$

Not available

19

Gravely 00839700

Washer, D125 6,4 x 12 x 1,6

$

$

Not available

20

Gravely 00839800

Bolt, Hallow

$

$

Not available

21

Gravely 08669400

Spring, Tension, 1.2/10.8 x 62

$

$

Not available

22

Gravely 00839900

Stud, D939 Metric 6FO x 16

$

$

Not available

23

Gravely 00840000

Lever

$

$

Not available

24

Gravely 00840300

Pin, Heavy

$

$

Not available

25

Gravely 00840400

Cap Nut, D1587 M10

$

$

Not available

26

Gravely 08648000

Screw, D912 M10 x 60

$

$

Not available

27

Gravely 00840500

O-Ring, D3770 199,00 x 2,40

$

$

Not available

28

Gravely 00840600

Connector

$19.00

$

Usually ships in 4-12 days

0

29

Gravely 00840700

Control Rod

$

$

Not available

30

Gravely 00840800

Pin, Heavy, D1481 4 x 20

$

$

Not available

31

Gravely 08677900

Collar

$

$

Not available

32

Gravely 00840900

Adjustment Ring

$

$

Not available

33

Gravely 00841500

Screw, Cylinder, D912 Metric 4 x 5

$

$

Not available

34

Gravely 08691400

Fan

$

$

Not available

35

Gravely 00841600

Driver

$

$

Not available

36

Gravely 08691500

Rivet, Blind

$

$

Not available

37

Gravely 00841700

O-Ring, D3770 28,00 x 5,00

$

$

Not available

38

Gravely 00841800

Key, D6888 3/16" x 3/4"

$

$

Not available

39

Gravely 00841900

Shift Rod

$

$

Not available

40

Gravely 00842700

Key, Woodruff D6888 1/8" x 5/8"

$

$

Not available

41

Gravely 00842800

Lock Washer, D127A M13

$

$

Not available

42

Gravely 00842900

Hex Nut, 1/2"X13 UNC

$

$

Not available

43

Gravely 00843000

Pipe, Hydraulic Assembly

$

$

Not available

44

Gravely 00843200

Pipe, Hydraulic Assembly

$

$

Not available

45

Gravely 00843300

Pipe, Hydraulic Assembly

$

$

Not available

46

Gravely 00843400

Connector

$97.02

$

Usually ships in 4-12 days

0

47

Gravely 00827900

Swivelling Screw-Fitting, XSWV

$

$

Not available

48

Gravely 00836200

Joint Ball Pin

$

$

Not available

49

Gravely 08625000

Nut, Lock, M6

$

$

Not available

50

Gravely 00843500

Connector Assembly

$145.34

$

Usually ships in 4-12 days

0

51

Gravely 00840500

O-Ring, D3770 199,00 x 2,40

$

$

Not available

52

Gravely 00843600

Connector

$15.18

$

Usually ships in 4-12 days

0

53

Gravely 08642500

Washer, Form Steel 10.2/20.25 x 1.6

$

$

Not available

54

Gravely 00843700

Screw, Metric 8 x 35

$

$

Not available

55

Gravely 08607600

Washer

$

$

Not available

56

Gravely 00830000

Screw, D912 M10 x 25

$3.99

$

Usually ships in 4-12 days

0

57

Gravely 00843800

Plate

$

$

Not available

58

Gravely 00843900

Plate

$

$

Not available

59

Gravely 08653300

Cap

$

$

Not available
