985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

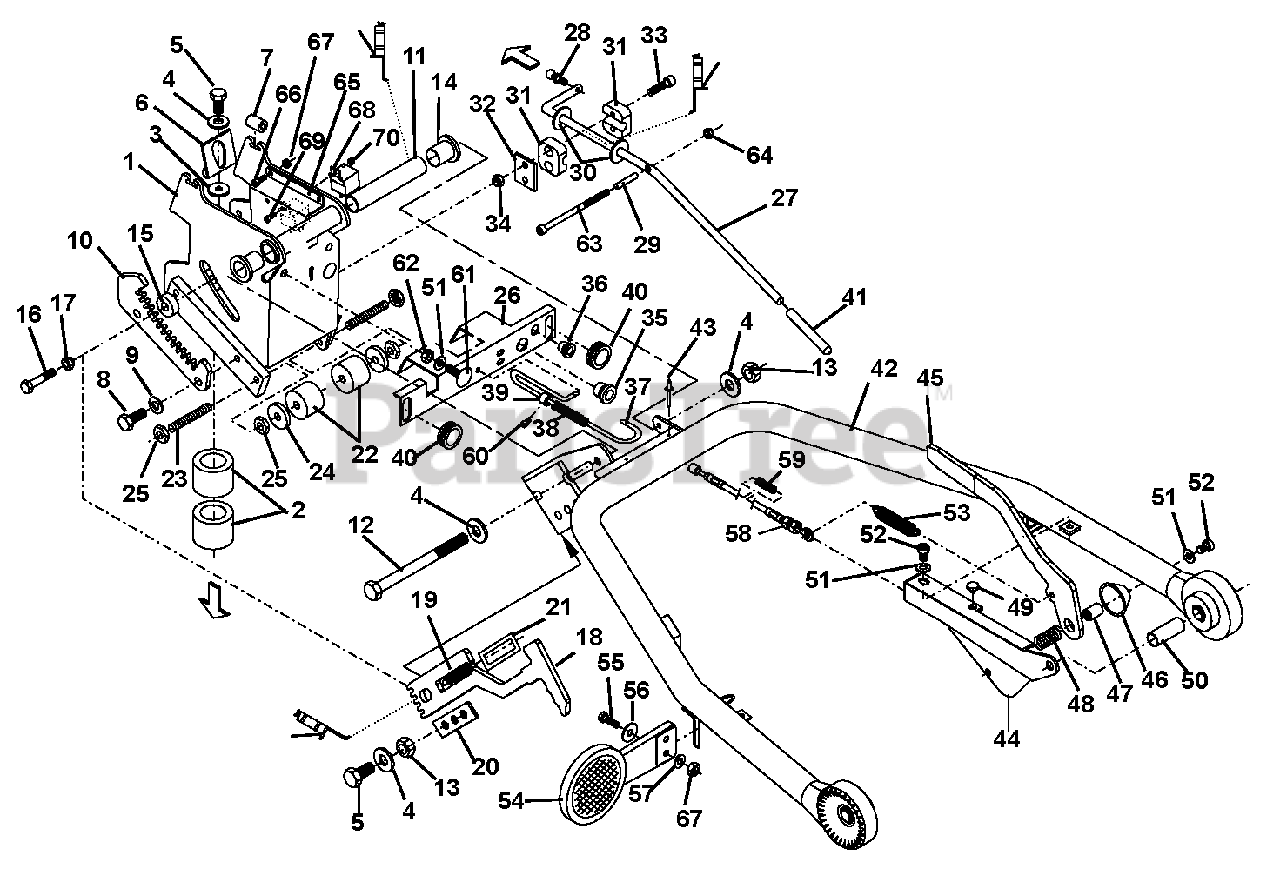

Handlebar Parts Diagram

  • Title

1

Gravely 00848600

Support Handle (Includes Item 2)

Note: (Includes Item 2)

$

$

Not available

2

Gravely 08670500

Silentbloc

$

$

Not available

3

Gravely 00828600

Washer

$

$

Not available

4

Gravely 00828700

Turnbuckel, D6796 13,0 x 293,0

$

$

Not available

5

Gravely 08672000

Bolt, Hex, D933 M12 x 30

$

$

Not available

6

Gravely 00848700

Fish-Plate

$

$

Not available

7

Gravely 08646800

Hose

$

$

Not available

8

Gravely 00848800

Hex Bolt, D933 M10 x 25 10.9

$

$

Not available

9

Gravely 08642500

Washer, FORM Steel 10.2/20.25 x 1.6

$

$

Not available

10

Gravely 00848900

Segment

$

$

Not available

11

Gravely 00849000

Shaft

$

$

Not available

12

Gravely 00849100

Screw, Cylinder, D912 M12 x 170

$

$

Not available

13

Gravely 00849200

Hex Nut, D6915 M12

$

$

Not available

14

Gravely 00849300

Bushing, 20/23/3021,5

$

$

Not available

15

Gravely 00849400

Guide

$

$

Not available

16

Gravely 08677300

Screw, D912 Metric 8 x 40A

$

$

Not available

17

Gravely 08622000

Nut, Lock, D985 Metric 8

$

$

Not available

18

Gravely 00849500

Lever

$

$

Not available

19

Gravely 00849600

Spring Tension

$

$

Not available

20

Gravely 00849700

Plate, Belt Guide

$

$

Not available

21

Gravely 00849800

Sliding Washer

$

$

Not available

22

Gravely 00849900

Damper

$

$

Not available

23

Gravely 00830400

Threaded Pin, D913 M10 x 70

$

$

Not available

24

Gravely 00832900

Washer, 11,5 x 35 x 6

$

$

Not available

25

Gravely 08663000

Nut, Hex, D439B M10

$

$

Not available

26

Gravely 00850600

Dash Panel Assembly

$

$

Not available

27

Gravely 00850700

Control Rod

$

$

Not available

28

Gravely 00836200

Joint Ball Pin, D71803 10 A

$

$

Not available

29

Gravely 00850800

Dowel Pin, 6 x 40

$

$

Not available

30

Gravely 00850900

Ring, Idler, Self Propelled 220

$

$

Not available

31

Gravely 00851000

Clamp, PAAR

$

$

Not available

32

Gravely 00851100

Plate, Weldment

$

$

Not available

33

Gravely 08624900

Screw, D912 M6 x 35

$

$

Not available

34

Gravely 08625000

Nut, Lock, D985 M6

$

$

Not available

35

Gravely 00851200

Collar

$

$

Not available

36

Gravely 08677900

Collar

$

$

Not available

37

Gravely 00851300

Bar, Lock

$

$

Not available

38

Gravely 00851400

Pressure Spring, 1,25 x 8 x 69

$

$

Not available

39

Gravely 08608500

Adjust Ring

$

$

Not available

40

Gravely 08621600

Grommet

$

$

Not available

41

Gravely 08678300

Knob, Plastic

$

$

Not available

42

Gravely 00851500

Handle

$

$

Not available

43

Gravely 08691500

Rivit, Blind

$

$

Not available

44

Gravely 00851600

Control Guide Right

$

$

Not available

45

Gravely 00851700

Lever, Brake

$

$

Not available

46

Gravely 08682500

Spacer

$

$

Not available

47

Gravely 08682800

Bushing W/Tread

$

$

Not available

48

Gravely 08682700

Spring, Pressure

$

$

Not available

49

Gravely 08683400

Stop, Pressure Switch

$

$

Not available

50

Gravely 00851800

Collar

$

$

Not available

51

Gravely 08605800

Washer, M8

$

$

Not available

52

Gravely 08669000

Screw, ISO7380 Metric 8 x 12

$

$

Not available

53

Gravely 08622800

Spring, Tension

$

$

Not available

54

Gravely 00851900

Rear Reflector, Left 140 x D 92

$

$

Not available

55

Gravely 00852400

Hex Bolt, D933 Metric 5 x 20

$

$

Not available

56

Gravely 00852500

Washer, D440 7 x 22 x 2

$

$

Not available

57

Gravely 08631900

Washer, M6

$

$

Not available

58

Gravely 00852600

Brake Cable

$

$

Not available

59

Gravely 00852700

Spring Tension

$

$

Not available

60

Gravely 00841500

Screw, Cylinder, D912 Metric 4 x 5

$

$

Not available

61

Gravely 00852800

Truss Head Screw, D603 M8 x 20

$

$

Not available

62

Gravely 08605700

Nut, Hex D934 M8

$

$

Not available

63

Gravely 00852900

Screw, Cylinder, D912 M3 x 50

$

$

Not available

64

Gravely 08634600

Nut, Lock, D985 M3

$

$

Not available

65

Gravely 00853100

Bracket

$

$

Not available

66

Gravely 08640200

Screw, D912 Metric 6 x 15

$

$

Not available

67

Gravely 08625000

Nut, Lock, D985 M6

$

$

Not available

68

Gravely 08629000

Relay

$71.99

$

Usually ships in 4-12 days

0

69

Gravely 08625300

Screw, D912 M5 x 12

$

$

Not available

70

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0
