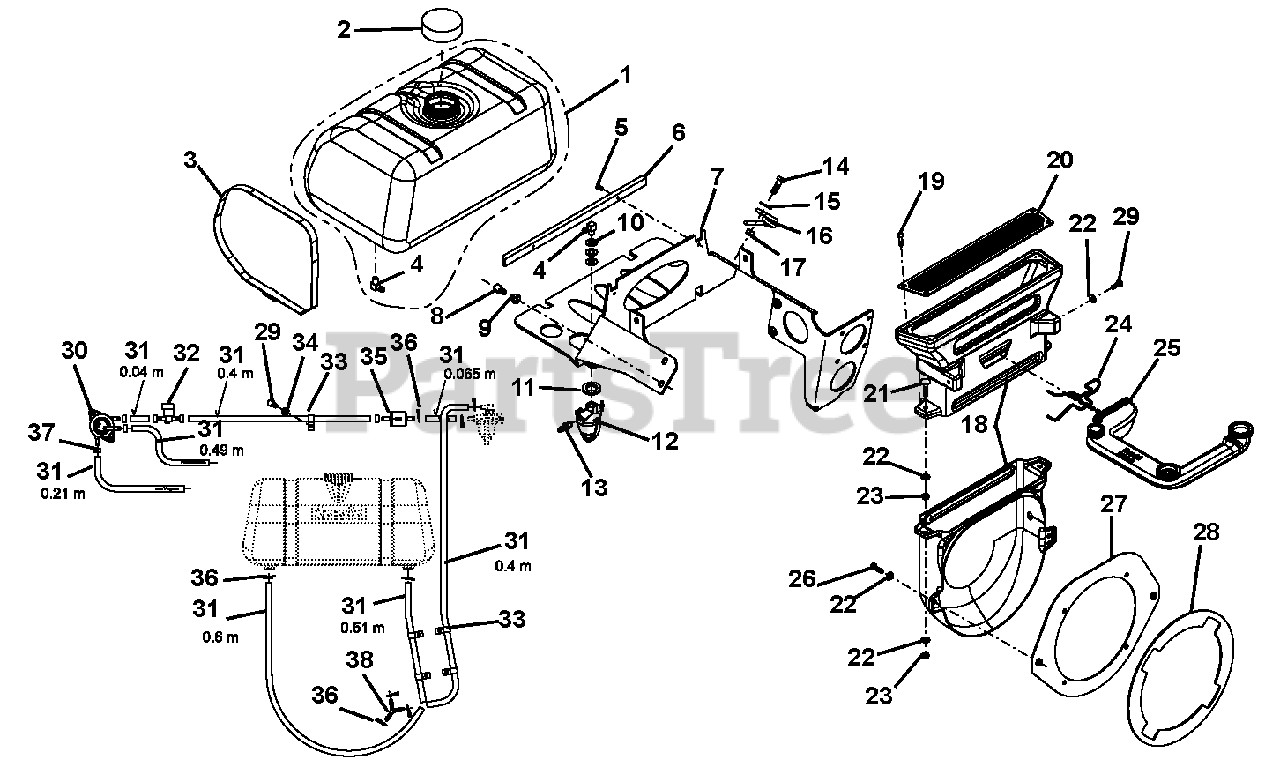

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Fuel Tank And Pump Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Fuel Tank And Pump Parts Diagram

  • Title
1

Gravely 00858500

Fuel Tank, INKL. (Includes item 4)

Note: (Includes item 4)

$

$

Not available

2

Gravely 08692400

Cap, Fuel

$

$

Not available

$

$

Not available

4

Gravely 00858700

Connector

$29.29

$

Usually ships in 4-12 days

0

5

Gravely 00858800

Countersunk Bolt, D7991 Metric 5X

$

$

Not available

6

Gravely 00858900

Base, Plastic

$

$

Not available

7

Gravely 00859000

Fuel Gauge

$

$

Not available

8

Gravely 08604300

Bolt, Hex D933 M8 x 20

$

$

Not available

9

Gravely 08605800

Washer, M8

$

$

Not available

10

Gravely 00859100

Bell Washer, D2093B 20 x 10,2

$

$

Not available

11

Gravely 00859200

Washer, D1440 20 x 32 x 4

$

$

Not available

12

Gravely 00859300

Gasoline Filter

$

$

Not available

13

Gravely 08666600

Connector, 495.194

$22.81

$

Usually ships in 4-12 days

0

14

Gravely 00859400

Hex Bolt, D933 Metric 8 x 25

$

$

Not available

15

Gravely 08616300

Washer, Metric 8

$

$

Not available

16

$

$

Not available

17

Gravely 08622000

Nut, Lock, D985 Metric 8

$

$

Not available

18

Gravely 00859600

Channel Assembly, 20 Pro Steer

$

$

Not available

19

Gravely 00859700

Oval Head Screw, D7981C 6,3

$

$

Not available

20

$

$

Not available

21

Gravely 00859900

Screw, BN 289 M6 x 30

$

$

Not available

22

Gravely 08604900

Washer, M6

$

$

Not available

23

Gravely 08625000

Nut, Lock, D985 M6

$

$

Not available

24

$

$

Not available

25

Gravely 00861200

Pipe, 228.6 x 253.31 x 49.5

$

$

Not available

26

Gravely 00861400

Hex Bolt, D933 Metric 6 x 20

$

$

Not available

27

$

$

Not available

28

Gravely 00861700

Spacer Plate

$

$

Not available

29

Gravely 00683300

Hex Bolt, D933 Metric 6 x 16

$

$

Not available

30

Gravely 08665900

Fuel, Pump, 808.856

$

$

Not available

$

$

Not available

32

Gravely 00861800

Fuel Cock, Gasoline Shut-Off

$

$

Not available

33

Gravely 00861900

Mounting Clip, 12 x 1

$

$

Not available

34

Gravely 08620600

Washer, M6

$

$

Not available

35

Gravely 00682500

Gasoline Filter, 691035

$13.99

$

Usually ships in 4-12 days

0

36

Gravely 08646700

Hose, Clamp

$

$

Not available

37

Gravely 08666400

Clamp, 93.053

$

$

Not available

38

Gravely 08692500

Fitting, Y

$

$

Not available
