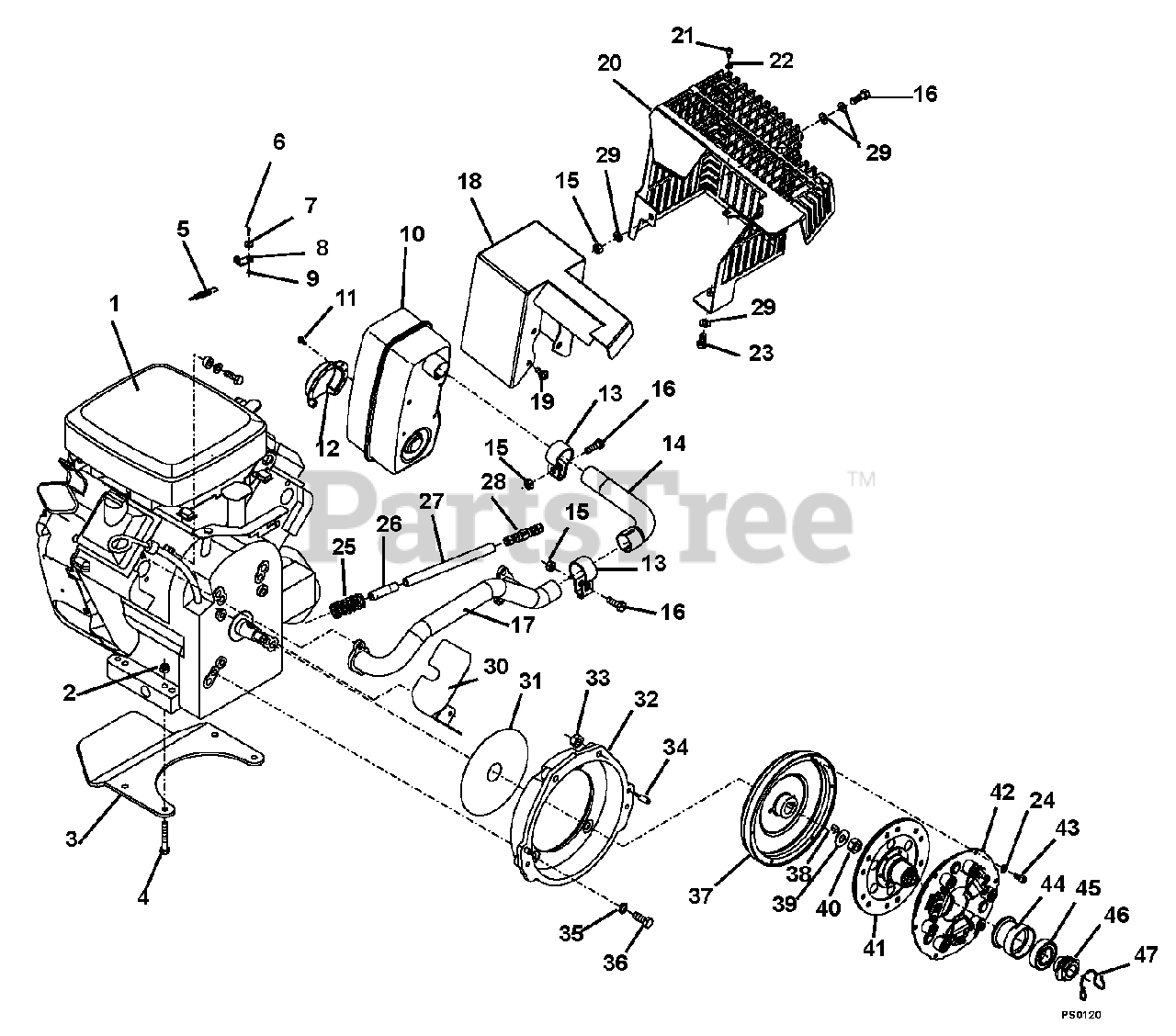

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Engine Parts Diagram

  • Title

1

Gravely 00856300

Engine

$

$

Not available

2

Gravely 08622000

Nut, Lock, D985 Metric 8

$

$

Not available

3

Gravely 08667400

Plate, Guard

$

$

Not available

4

Gravely 08667500

Bolt, Hex D931 Metric 8 x 45

$

$

Not available

5

Gravely 00856400

Spring, Tension D912 Metric 2 x 10

$

$

Not available

6

Gravely 00856500

Screw

$

$

Not available

7

Gravely 00856600

Support

$

$

Not available

8

Gravely 08669300

Shackle

$

$

Not available

9

Gravely 00856700

Hex Nut, D934-Metric 2

$

$

Not available

10

Gravely 00856800

Silencer

$

$

Not available

11

Gravely 00856900

Screw

$

$

Not available

12

Gravely 00682600

Deflector

$

$

Not available

13

Gravely 00857000

Clamp

$

$

Not available

14

Gravely 00857100

Exhaust Pipe

$

$

Not available

15

Gravely 08605700

Nut, Hex D934 M8

$

$

Not available

16

Gravely 08635100

Bolt, Hex, D933 Metric 8 x 25

$

$

Not available

17

Gravely 00857200

Manifold

$

$

Not available

18

Gravely 00857300

Heat Protector

$

$

Not available

19

Gravely 00857400

Screw, D7500D M6 x 16

$

$

Not available

20

Gravely 00857500

Heat Protector

$

$

Not available

21

Gravely 00857600

Screw, D912 Metric 5 x 8

$

$

Not available

22

Gravely 08634300

Washer, M5

$

$

Not available

23

Gravely 08621400

Bolt, Hex, D933 Metric 8 x 16

$

$

Not available

24

Gravely 00857700

Pressure Spring, 3,2/20 x 49,5

$

$

Not available

25

Gravely 00857800

Ventilation Valve

$

$

Not available

26

Gravely 00857900

Hose, 904001 LW 10 x 14

$

$

Not available

27

Gravely 00858000

Nipple, Reduction, D1=12

$

$

Not available

28

Gravely 00858100

Adjustment Ring, D705A 8-H8

$

$

Not available

29

Gravely 08605800

Washer, M8

$

$

Not available

30

Gravely 00858200

Heat Protector

$

$

Not available

31

Gravely 08664700

Plate, Intermediate

$

$

Not available

32

Gravely 08664800

Engine, Flange

$

$

Not available

33

Gravely 08616100

Nut, Lock, D934 M10

$

$

Not available

34

Gravely 08664900

Pin, Straight, BN 855 8-H8 x 20

$

$

Not available

35

Gravely 08643400

Washer, FORM Z 10.2/16.1 x 1.6

$

$

Not available

36

Gravely 08665100

Bolt, Hex, UNC 3/8" x 1"

$

$

Not available

37

Gravely 08665200

Flywheel

$

$

Not available

38

Gravely 08664600

Key, Feather, D6885A 6 x 6 x 16

$

$

Not available

39

Gravely 08604600

Washer

$

$

Not available

40

Gravely 00858300

Hex Nut, D934 M12 x 1,25

$

$

Not available

41

Gravely 08665600

Disk, Clutch

$

$

Not available

42

Gravely 08692200

Pressure Plate

$

$

Not available

43

Gravely 08665800

Screw, D912 Metric 6 x 14

$

$

Not available

44

Gravely 08649400

Ring, Pressure

$

$

Not available

45

Gravely 08649500

Bearing, Ball, 6005 2RS

$

$

Not available

46

Gravely 00858400

Pressure Ring

$

$

Not available

47

Gravely 00835800

Spring, Lock

$

$

Not available
