985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Battery Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

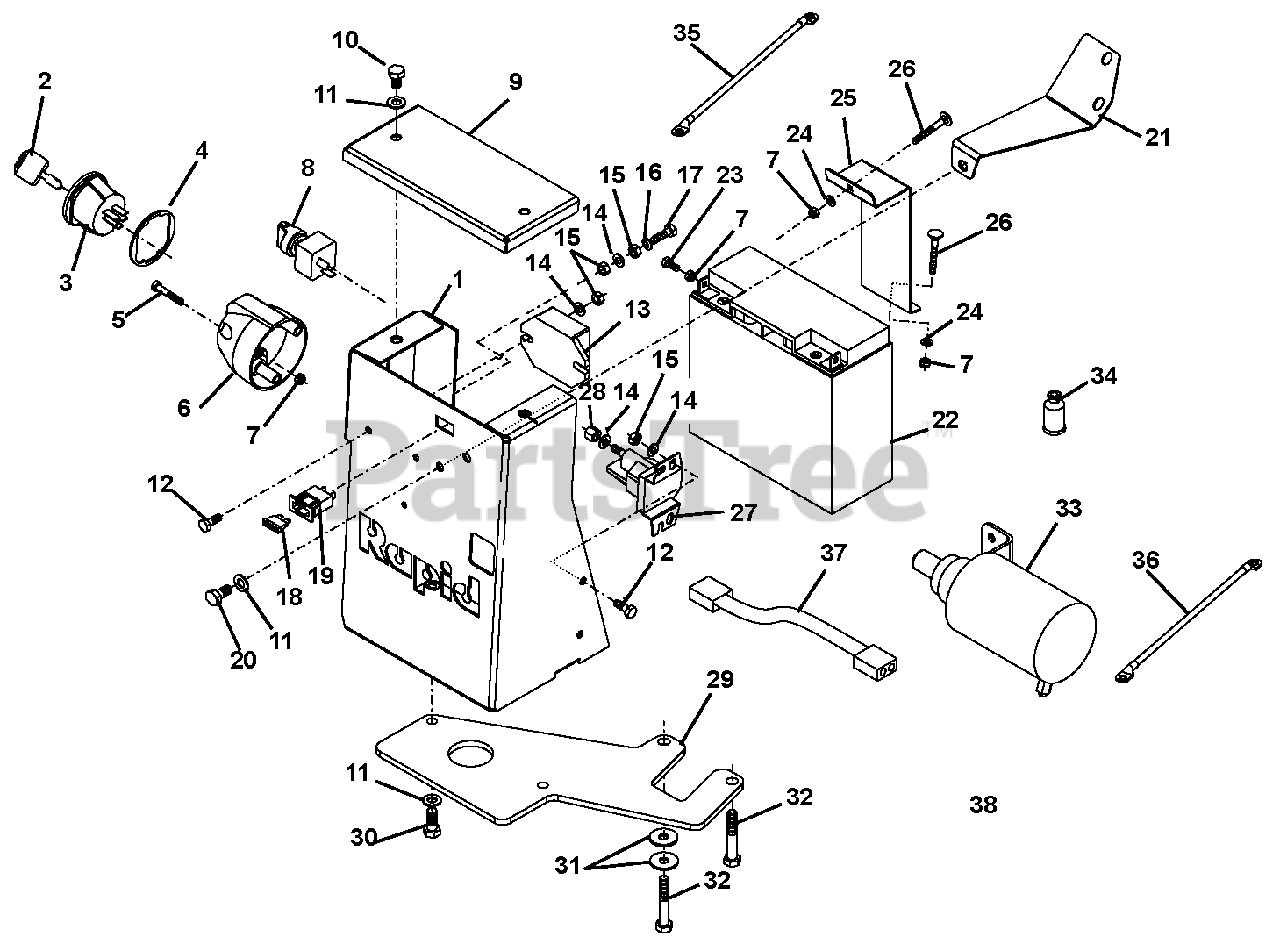

Battery Parts Diagram

  • Title

1

Gravely 00683000

Battery Container

$

$

Not available

2

Gravely 08697300

Assembly, Key

$11.99

$

Usually ships in 4-12 days

0

3

Gravely 08697200

Assembly, Starter Switch

$64.99

$

Usually ships in 4-12 days

0

4

Gravely 00862200

Spacer

$

$

Not available

5

Gravely 00683100

Screw, Cylindrical Head

$

$

Not available

6

Gravely 00683200

Plug, Socket

$

$

Not available

7

Gravely 08614600

Nut, Lock M5

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00690600

Switch, Rotary

$

$

Not available

9

Gravely 00862300

Cover

$

$

Not available

10

Gravely 08621900

Bolt, Hex D933 M8 x 12

$

$

Not available

11

Gravely 08605800

Washer, Form S 8.2/16.2 x 1.4

$

$

Not available

12

Gravely 00683300

Bolt, Hex M6 x 16

$

$

Not available

13

Gravely 00683400

Regulator

$

$

Not available

14

Gravely 08620600

Washer

$

$

Not available

15

Gravely 08608900

Nut, Hex M6

$

$

Not available

16

Gravely 08675000

Washer, Lock M6

$

$

Not available

17

Gravely 00861400

Bolt, Hex M6 x 20

$

$

Not available

18

Gravely 08637500

15A, Fuse

$

$

Not available

19

Gravely 00680100

Fuse Box

$264.99

$

Usually ships in 4-12 days

0

20

Gravely 08621400

Bolt, Hex M8 x 16

$

$

Not available

21

Gravely 00862400

Bracket

$

$

Not available

22

Gravely 08690700

Battery, Rapid

$672.99

$

Usually ships in 4-12 days

0

23

Gravely 00862500

Bolt, D933 M5 x 12

$

$

Not available

24

Gravely 08614200

Washer, 5.3 x 10 x 1

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 00862600

Bolt, Fastener

$

$

Not available

26

Gravely 00862700

Screw, Truss Head, D603 M5 x 40

$

$

Not available

27

Gravely 08696800

Relay

$

$

Not available

28

Gravely 00862800

Nut, Hex UNC1/4"

$

$

Not available

29

Gravely 00862900

Support, Battery

$

$

Not available

30

Gravely 08604300

Bolt, Hex M8 x 20

$

$

Not available

31

Gravely 00863600

Washer, 8.4 x 25 x 2

$

$

Not available

32

Gravely 08622400

Bolt, Hex M8 x 50

$

$

Not available

33

Gravely 00863700

Electrical Starter

$

$

Not available

34

Gravely 00690000

Protecting Cap

$28.99

$

In Stock, only 1 left!

0

35

Gravely 00683900

Cable, Black

$41.99

$

Usually ships in 4-12 days

0

36

Gravely 00684000

Cable, Red

$

$

Not available

37

Gravely 00863800

Cable

$

$

Not available

38

Gravely 08696900

Wiring Harness

$

$

Not available
