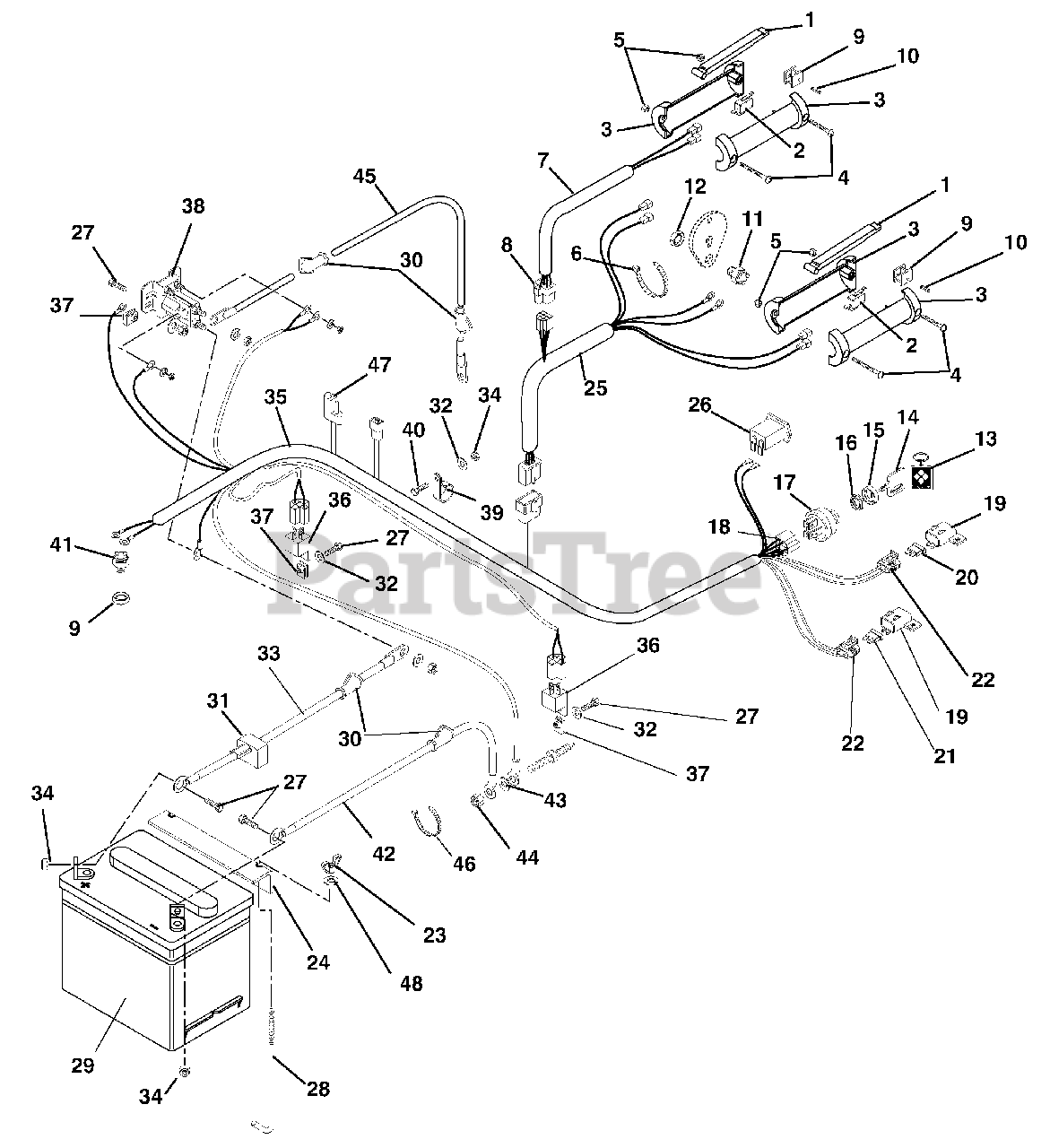

985313 - Gravely Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Electrical System - Electric Start Parts Diagram

Walk-Behind 2-Wheel Tractor

Electrical System - Electric Start Parts Diagram

  • Title
1

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

3

Gravely 08870200

Handle-Left Hand & Right Hand

$35.99

$

In Stock, only 2 left!

0

4

Gravely 06118300

Screw-Machine 10-24 x 1.50

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 041634

Tie Wrap-Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 08594200

Harness-Steering Brake (114,117, 119, 309)

Note: (114,117, 119, 309)

$

$

Not available

8

Gravely 038057

Connector
(Superseded to 20645000)

$

$

Not available

9

Gravely 08855100

Holder-Switch

$

$

Not available

10

Gravely 05808100

Pin-Roll .094 x .750

$0.99

$

In Stock, only 2 left!

0

11

Gravely 051919

Switch-Interlock Closed (Forward/Reverse)
(Superseded to 08571900)

Note: (Forward/Reverse)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

14

Gravely 02460700

Key Switch

$7.99

$

In Stock, Qty 20+

0

15

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

17

Gravely 03602300

Ignition Switch (115, 117, 119, 307, 309, 311-313)

Note: (115, 117, 119, 307, 309, 311-313)

$26.99

$

In Stock, only 1 left!

0

17

Gravely 019223

Ignition Switch (114)
(Superseded to 59211800)

Note: (114)

$68.99

$

In Stock, Qty 14

0

18

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

19

Gravely 045921

Cover (114, 115, 117, 307, 309, 311-313)
(Superseded to 20822800)

Note: (114, 115, 117, 307, 309, 311-313)

$

$

Not available

19

Gravely 045921

Cover (119)
(Superseded to 20822800)

Note: (119)

$

$

Not available

20

Gravely 00524600

Fuse-30 AMP (115,117, 307, 309, 311, 312)

Note: (115,117, 307, 309, 311, 312)

$

$

Not available

20

Gravely 00580600

Fuse-20 AMP (119)

Note: (119)

$5.99

$

In Stock, Qty 12

0

20

Gravely 045037

Fuse-25 AMP (114)
(Superseded to 08961800)

Note: (114)

$3.99

$

In Stock, only 4 left!

0

21

Gravely 00524700

Fuse-15 AMP (119)

Note: (119)

$

$

Not available

22

Gravely 045920

Assembly-Connector Weather Tight (114, 115, 117, 307, 309, 311-313)
(Superseded to 20822700)

Note: (114, 115, 117, 307, 309, 311-313)

$

$

Not available

22

Gravely 045920

Assembly-Connector Weather Tight (119)
(Superseded to 20822700)

Note: (119)

$

$

Not available

23

Gravely 06537500

Nut-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

24

Gravely 015258

Hold Down
(Superseded to 03494051)

$11.99

$

In Stock, only 3 left!

0

25

Gravely 047306

Harness-Wiring Handlebar (114)
(Superseded to 08567001)

Note: (114)

$

$

Not available

25

Gravely 08591000

Harness-Wiring Handlebar (115,117,119, 307, 309, 311, 312)

Note: (115,117,119, 307, 309, 311, 312)

$

$

Not available

26

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

27

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head (114, 115, 117, 307, 309, 311-313)
(Superseded to 05901837)

Note: (114, 115, 117, 307, 309, 311-313)

$2.49

$

In Stock, Qty 15

0

27

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head (119)
(Superseded to 05901837)

Note: (119)

$2.49

$

In Stock, Qty 15

0

28

Gravely 015257

Tie Down
(Superseded to 03494100)

$30.99

$

Usually ships in 4-12 days

0

29

$

$

Not available

30

Gravely 033847

Boot-Insulator
(Superseded to 03384700)

$

$

Not available

31

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

32

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 02727200

Cable-Battery to Solenoid (115, 117, 119, 307, 309, 311, 312)
(Superseded to 02727201)

Note: (115, 117, 119, 307, 309, 311, 312)

$20.99

$

In Stock, Qty 9

0

33

Gravely 02743300

Cable-Battery to Solenoid (114)
(Superseded to 03287200)

Note: (114)

$17.99

$

In Stock, only 2 left!

0

34

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 051899

Harness-Wiring (114)
(Superseded to 08571201)

Note: (114)

$136.99

$

Usually ships in 4-12 days

0

35

Gravely 08590900

Harness-Wiring (115, 117, 307, 309, 311, 312)

Note: (115, 117, 307, 309, 311, 312)

$

$

Not available

35

Gravely 08598400

Harness-Wiring 12 HP Kohler (119)

Note: (119)

$

$

Not available

36

Gravely 040216

Relay (115, 117, 307, 309, 311, 312)
(Superseded to 00432101)

Note: (115, 117, 307, 309, 311, 312)

$22.99

$

In Stock, Qty 20+

0

36

Gravely 040216

Relay (119)
(Superseded to 00432101)

Note: (119)

$22.99

$

In Stock, Qty 20+

0

37

Gravely 07027700

Nut-Retaining Ring #10-24

$

$

Not available

38

Gravely 044766

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 15

0

39

Gravely 050394

Clamp-Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 051918

Switch-Interlock Open (PTO)
(Superseded to 08571800)

Note: (PTO)

$62.99

$

In Stock, only 3 left!

0

42

Gravely 09222700

Cable-Negative Battery
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

43

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 02743300

Cable-Solenoid to Starter (115, 117, 119, 307, 309, 311, 312)
(Superseded to 03287200)

Note: (115, 117, 119, 307, 309, 311, 312)

$17.99

$

In Stock, only 2 left!

0

45

Gravely 041815

Cable-Solenoid to Ground (114)
(Superseded to 08547300)

Note: (114)

$

$

Not available

46

Gravely 044321

Tie Wrap Black
(Superseded to 02589600)

$

$

Not available

47

Gravely 03081700

Molded Diode Plug- Clear 1 AMP

$26.99

$

Usually ships in 4-12 days

0

48

Gravely 06435800

Washer-Flat-Steel .312 x.734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
