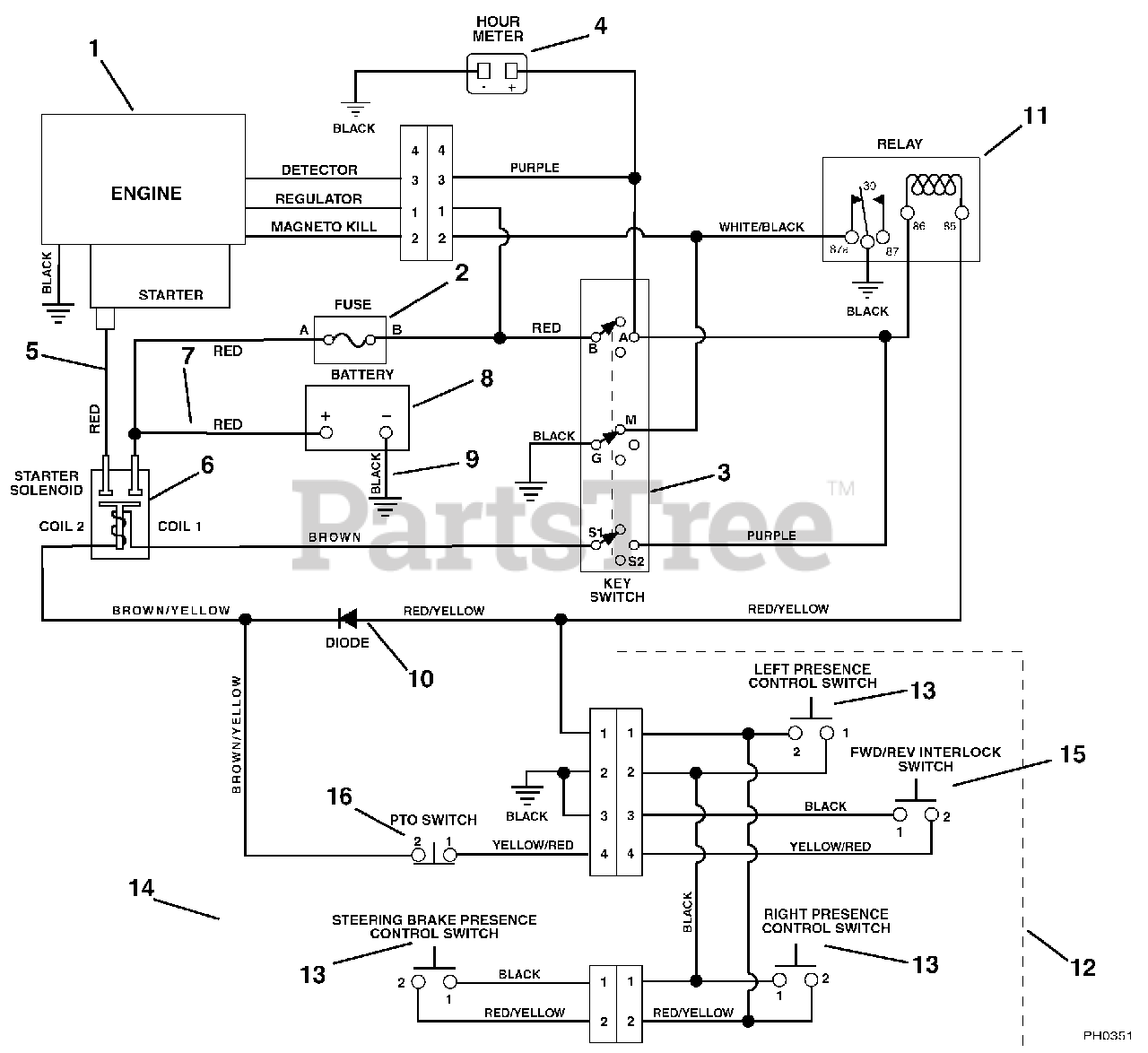

985312 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Wiring Diagram Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

Wiring Diagram Parts Diagram

  • Title

1

Gravely 08255700

Engine, Robin (115, 307)

Note: (115, 307)

$

$

Not available

1

Gravely 08255800

Engine, Robin (117, 309, 311, 312)

Note: (117, 309, 311, 312)

$

$

Not available

2

Gravely 00524600

Fuse 30 AMP

$

$

Not available

3

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

4

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 02743300

Start Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

6

Gravely 044766

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

7

Gravely 02727200

Starter Cable 13" - Battery to Solenoid
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

8

Gravely 03621100

Battery with Tube (307, 309, 311, 312)

Note: (307, 309, 311, 312)

$

$

Not available

8

Gravely 01554800

Battery (115, 117)

Note: (115, 117)

$

$

Not available

9

Gravely 09222700

Cable, Negative Battery 35"
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 03081700

Molded Diode Plug- Clear 1 AMP

$26.99

$

Usually ships in 4-12 days

0

11

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

12

Gravely 08591000

Harness, Handlebar

$

$

Not available

13

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

14

Gravely 08594200

Harness, Steering Brake

$

$

Not available

15

Gravely 051919

Switch, Interlock Closed (Forward/Reverse)
(Superseded to 08571900)

Note: (Forward/Reverse)

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 051918

Switch, Interlock Open (PTO)
(Superseded to 08571800)

Note: (PTO)

$62.99

$

In Stock, only 3 left!

0
