985309 - Gravely Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start (SN: 000101 & Above) Optional Wheel Kits Parts Diagram

Walk-Behind 2-Wheel Tractor, 13.5hp Robin Subaru, Electric Start

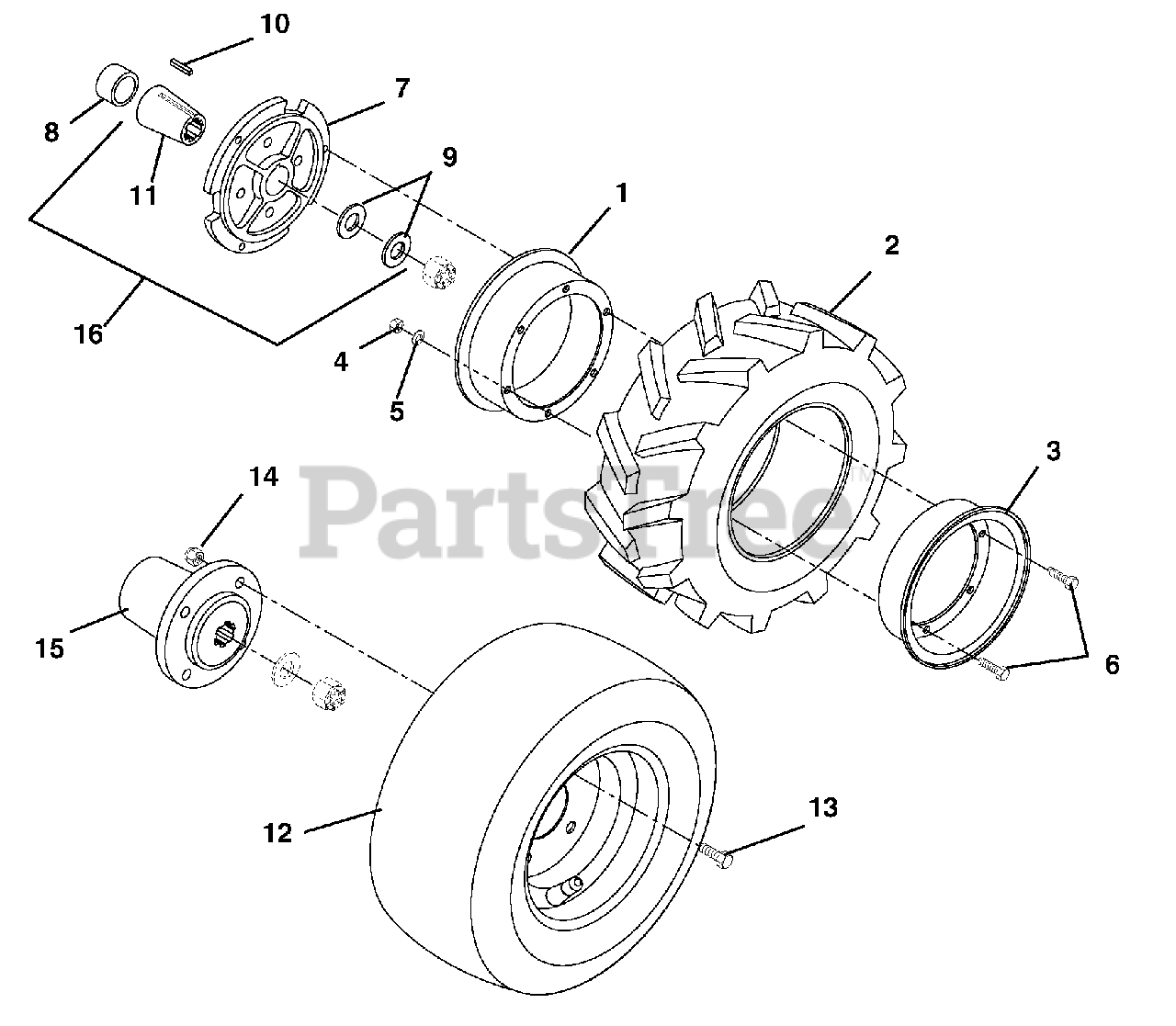

Optional Wheel Kits Parts Diagram

  • Title
1

Gravely 012674

Wheel 7.71 x 1.25
(Superseded to 07133000)

$58.99

$

In Stock, only 2 left!

0

2

Gravely 018762

Tire 16 x 5W x 3
(Superseded to 07127100)

$387.99

$

Usually ships in 4-12 days

0

3

Gravely 012673

Wheel-Disc 6.75 x 9.219
(Superseded to 07132900)

$68.99

$

In Stock, only 2 left!

0

4

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 08742753

Hub-Wheel

$258.99

$

Usually ships in 4-12 days

0

8

Gravely 022512

Bushing-Sleeve 1.02 x 1.37 x 1.13
(Superseded to 08525200)

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 06439800

Washer-Flat-Steel .812 x 2.00 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

10

Gravely 018345

Key-Square .249 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 038230

Insert-Hub
(Superseded to 08742600)

$

$

Not available

12

Gravely 046987

Tire/Wheel Assembly 8.50-8 x 18
(Superseded to 07130200)

$170.99

$

Usually ships in 4-12 days

0

12

Gravely 07137700

Tire/Wheel Assembly 4.80/4.00-8

$

$

Not available

12

Gravely 07137800

Tire/Wheel 4.80/4.00-8 R.H.

$

$

Not available

12

Gravely 07138700

Tire/Wheel 4.80/4.00-8 L.H.

$

$

Not available

13

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 022551

Hub-7" Wheel
(Superseded to 08526400)

$391.99

$

Usually ships in 4-12 days

0

16

Gravely 58501600

Kit, Heavy Duty Hub

Note: (Contains Items 7, 9-11)

$541.99

$

Usually ships in 4-12 days

0
