985305 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - 16HP Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

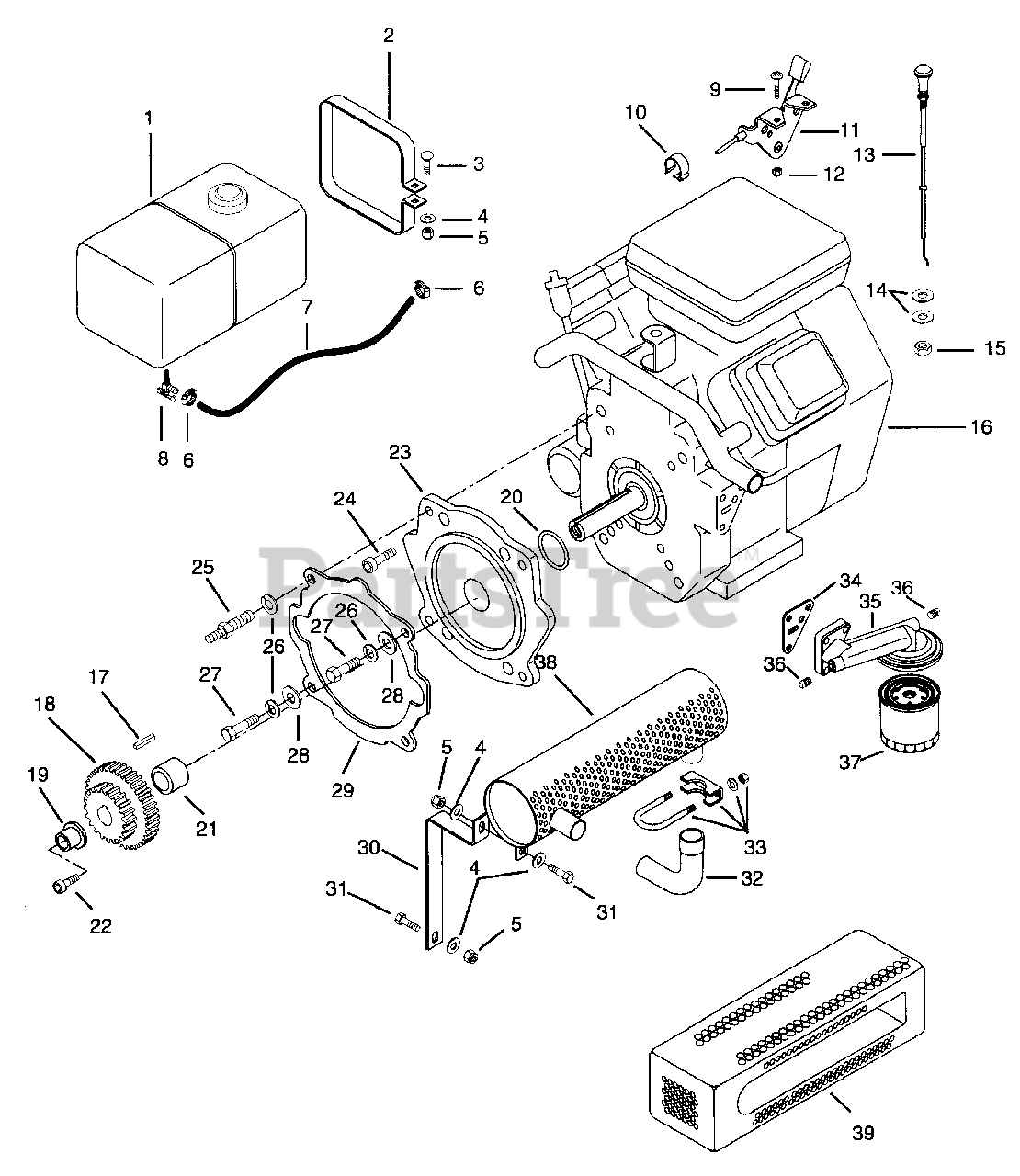

FUEL AND EXHAUST SYSTEM - 16HP Parts Diagram

  • Title

1

Gravely 08575151

Tank, Fuel, w/Cap, Black, 2-Wheel
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

2

01064000

Strap, Fuel Tank

$

$

Not available

3

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03204500

Hose Clamp
(Superseded to 53200400)

$

$

Not available

7

Gravely 02113400

Gas Line-Bulk

$

$

Not available

8

Gravely 00735400

Valve & Strainer

$

$

Not available

9

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 00826000

Clamp

$

$

Not available

11

Gravely 05013300

Control, Choke Plated

$

$

Not available

12

Gravely 06536000

Nut-Locking Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05013200

Lever, Choke Control 8 HP

$

$

Not available

14

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

16

Gravely 08241000

Engine, 16 HP B & S

$

$

Not available

17

Gravely 00921300

Key-Square .248 x 1.0 x .248

$

$

Not available

18

Gravely 04641000

Gear, B & S Engine

$25.99

$

In Stock, Qty 6

0

19

Gravely 04641100

Pilot, Gear
(Superseded to 04627000)

$49.99

$

In Stock, only 3 left!

0

20

Gravely 04714400

O-Ring 1.850 x 2.270 x .210

$271.99

$

Usually ships in 4-12 days

0

21

Gravely 04643600

Spacer 1.05 x 1.31 x 1.54

$

$

Not available

22

45344000

Screw-Machine .38-24 x 1.00

$

$

Not available

23

Gravely 04698900

Adapter, B & S Engine

$

$

Not available

24

Gravely 421648

Screw-Socket Head .44-14 x 1.00
(Superseded to 05933000)

$

$

Not available

25

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

26

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 05962800

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

28

Gravely 120395

Washer-Flat-Steel .459 x .938 x .065
(Superseded to 06429400)

$

$

Not available

29

Gravely 010635

Gasket, Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, only 2 left!

0

30

49327

Bracket, Exhaust

$

$

Not available

31

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

32

Gravely 049191

Elbow
(Superseded to 08569500)

$

$

Not available

33

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

34

Gravely 805250

Gasket, Oil Filter Adapter

$

$

Not available

35

Gravely 08518300

Oil Filter Manifold

$113.99

$

Usually ships in 4-12 days

0

36

Gravely 07027200

Plug-Pipe 1/16-27

$

$

Not available

37

Gravely 491056

Filter, Oil (114)

Note: (114)

$9.99

$

In Stock, only 2 left!

0

37

Gravely 492932

FIlter, Oil (305)

Note: (305)

$

$

Not available

38

Gravely 044399

Muffler, 16 HP
(Superseded to 08555600)

$

$

Not available

39

Gravely 08561500

Muffler Guard

$59.99

$

Usually ships in 4-12 days

0
