985304 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - 12HP - INTERNATIONAL Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

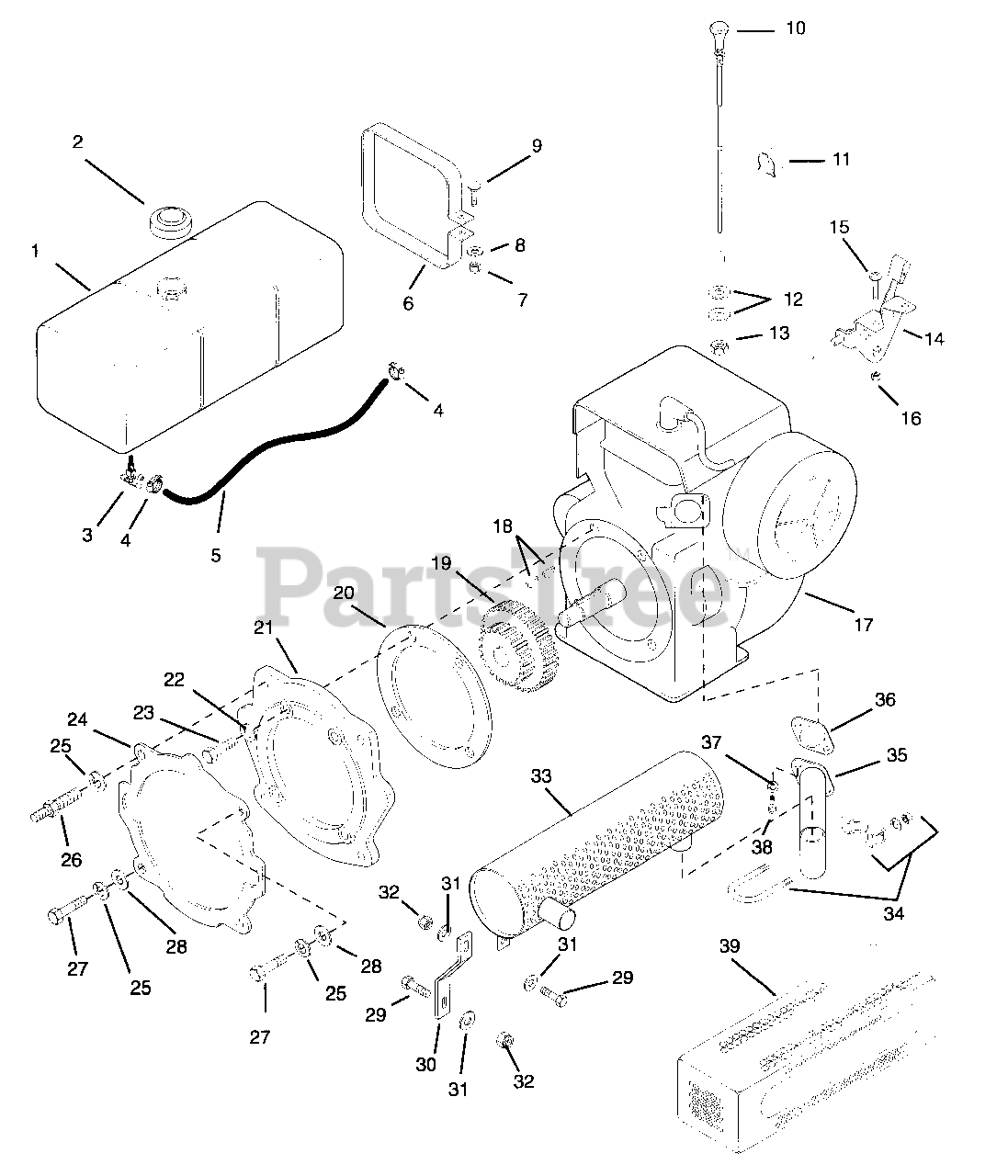

FUEL AND EXHAUST SYSTEM - 12HP - INTERNATIONAL Parts Diagram

  • Title

1

Gravely 010636

Assembly, Fuel Tank
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 010756

Cap, Gas Tank
(Superseded to 08582100)

$40.99

$

In Stock, only 1 left!

0

3

Gravely 007354

Valve and Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 1 left!

0

4

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 010640

Strap, Fuel Tank
(Superseded to 08581800)

$

$

Not available

7

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06437300

Washer-Flat-Steel .281 x.62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 044797

Lever, Choke Control
(Superseded to 06927500)

$

$

Not available

11

Gravely 008260

Clamp
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

12

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

14

Gravely 044798

Lever, Throttle Control
(Superseded to 06927600)

$52.99

$

Usually ships in 4-12 days

0

15

Gravely 06116700

Screw-Socket Head 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 041645

Engine, 12 HP Elect Magnum

$

$

Not available

18

Gravely 124546

Key, Woodruff .16 x .63
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 017838

Gear, 10/12 DP 21/30 Teeth
(Superseded to 08505300)

$

$

Not available

20

Gravely 010732

Gasket, Engine to Adapter
(Superseded to 08602700)

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 010732

Adapter, Engine
(Superseded to 08602700)

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 06306500

Washer-Lock .375 x .155
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 05948700

Bolt-Hex .380-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 010635

Gasket, Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, only 2 left!

0

25

Gravely 06310700

Washer-Lock .438 x .133

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

27

Gravely 05962800

Bolt-Hex .44-14 x 1.5
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

28

Gravely 120395

Washer-Flat-Steel .469 x .938 x .065
(Superseded to 06429400)

$

$

Not available

29

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 50
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 043267

Brace, Muffler
(Superseded to 08550500)

$

$

Not available

31

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06533200

Nut-Hex .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

33

Gravely 044399

Muffler
(Superseded to 08555600)

$

$

Not available

34

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

35

Gravely 044461

Header, Exhaust
(Superseded to 08601700)

$720.99

$

Usually ships in 4-12 days

0

36

Gravely 044390

Gasket, Exhaust
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

37

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 05947000

Screw-Cap .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 08561500

Guard, Muffler

$59.99

$

Usually ships in 4-12 days

0
