985304 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) FRAME - PROFESSIONAL 12 Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

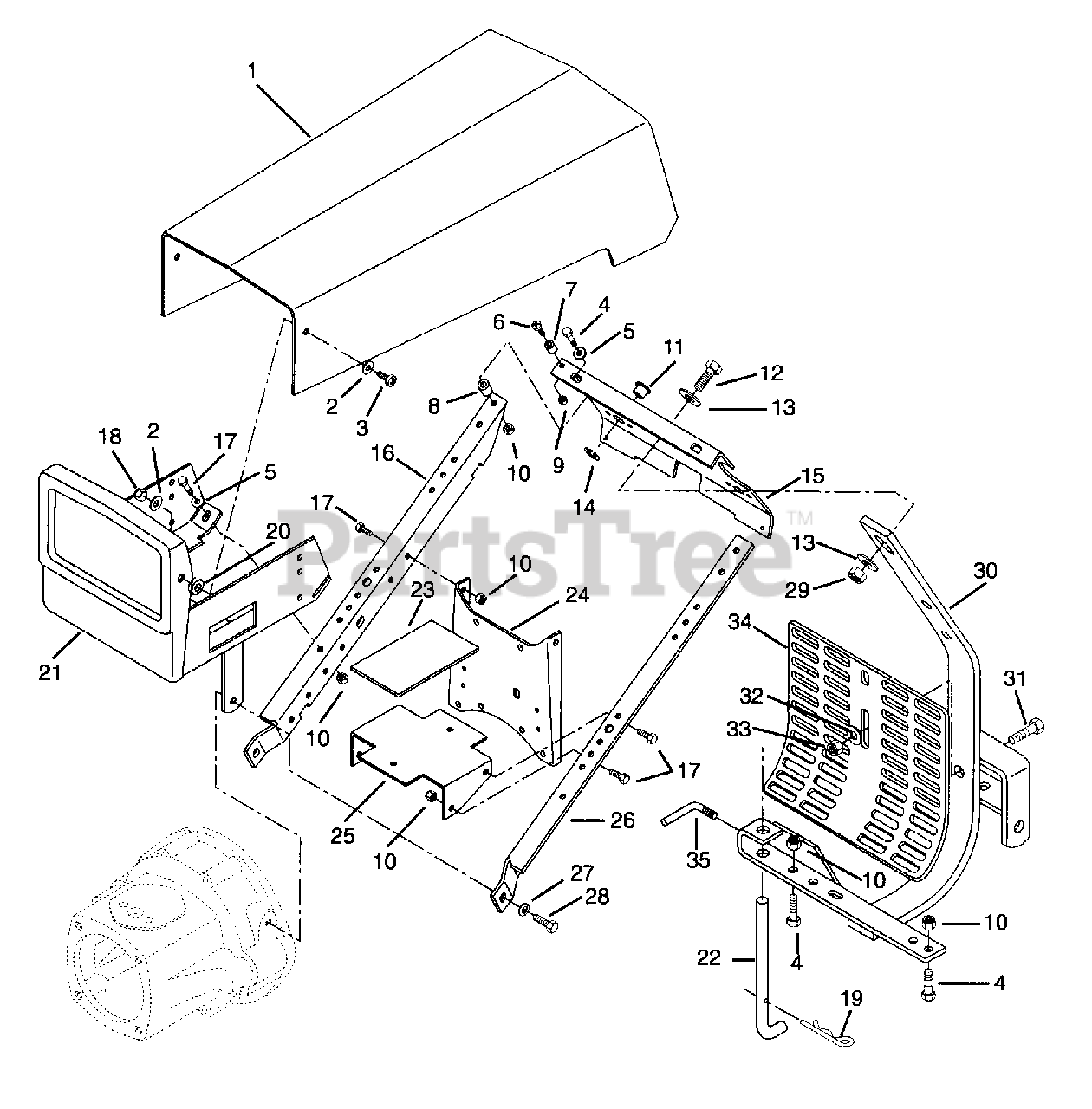

FRAME - PROFESSIONAL 12 Parts Diagram

  • Title

1

Gravely 042127

Hood
(Superseded to 08548900)

$

$

Not available

1

Gravely 68513000

Hood and Decal

$

$

Not available

2

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06118100

Screw-Machine .250-20 x 1

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06117900

Screw-Machine 6-32 x .75

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 018183

Bumper
(Superseded to 07017400)

$

$

Not available

8

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

9

Gravely 06538900

Nut-Locking-Nylon 6-32

$

$

Not available

10

Gravely 06535500

Nut-Locking-Center.375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 05968100

Bolt-Hex .625-11 x 2.00

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 034737

Ring-Retaining 1.000 x .748
(Superseded to 05715100)

$

$

Not available

15

Gravely 044658

Plate, Instrument
(Superseded to 08558400)

Note: (112,113)

$

$

Not available

16

Gravely 040618

Support, Handle Bar Right Hand
(Superseded to 08543100)

$

$

Not available

17

Gravely 05959400

Bolt-Hex .380-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06714000

Pin-Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 6

0

20

Gravely 041622

Bushing, Flange 280 x .750 x .318
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 045597

Weldment, Battery Bracket
(Superseded to 08561100)

$

$

Not available

22

Gravely 034062

Stand, Lick
(Superseded to 08536500)

$51.99

$

Usually ships in 4-12 days

0

23

Gravely 041075

Pad, Gas Tank
(Superseded to 08602600)

$

$

Not available

24

Gravely 040629

Bracket
(Superseded to 08543300)

$

$

Not available

25

Gravely 041997

Bracket, Tank Support
(Superseded to 08548500)

$22.99

$

Usually ships in 4-12 days

0

26

Gravely 040619

Support, Handle Bar Left Hand
(Superseded to 08543200)

$

$

Not available

27

Gravely 06307300

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

28

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

29

Gravely 06535300

Nut-Locking-Nylon .625-11 Grade 2

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 040819

Weldment, Hitch 10 & 12 HP
(Superseded to 08544200)

$

$

Not available

31

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

Note: (112,113)

$3.99

$

In Stock, only 1 left!

0

32

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

Note: (112,113)

$2.49

$

In Stock, only 1 left!

0

33

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

Note: (112,113)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 047190

Guard, Engine
(Superseded to 08566900)

Note: (112,113)

$

$

Not available

35

Gravely 013457

Handle, Adjusting
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0
