985303 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) STEERING BRAKES Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

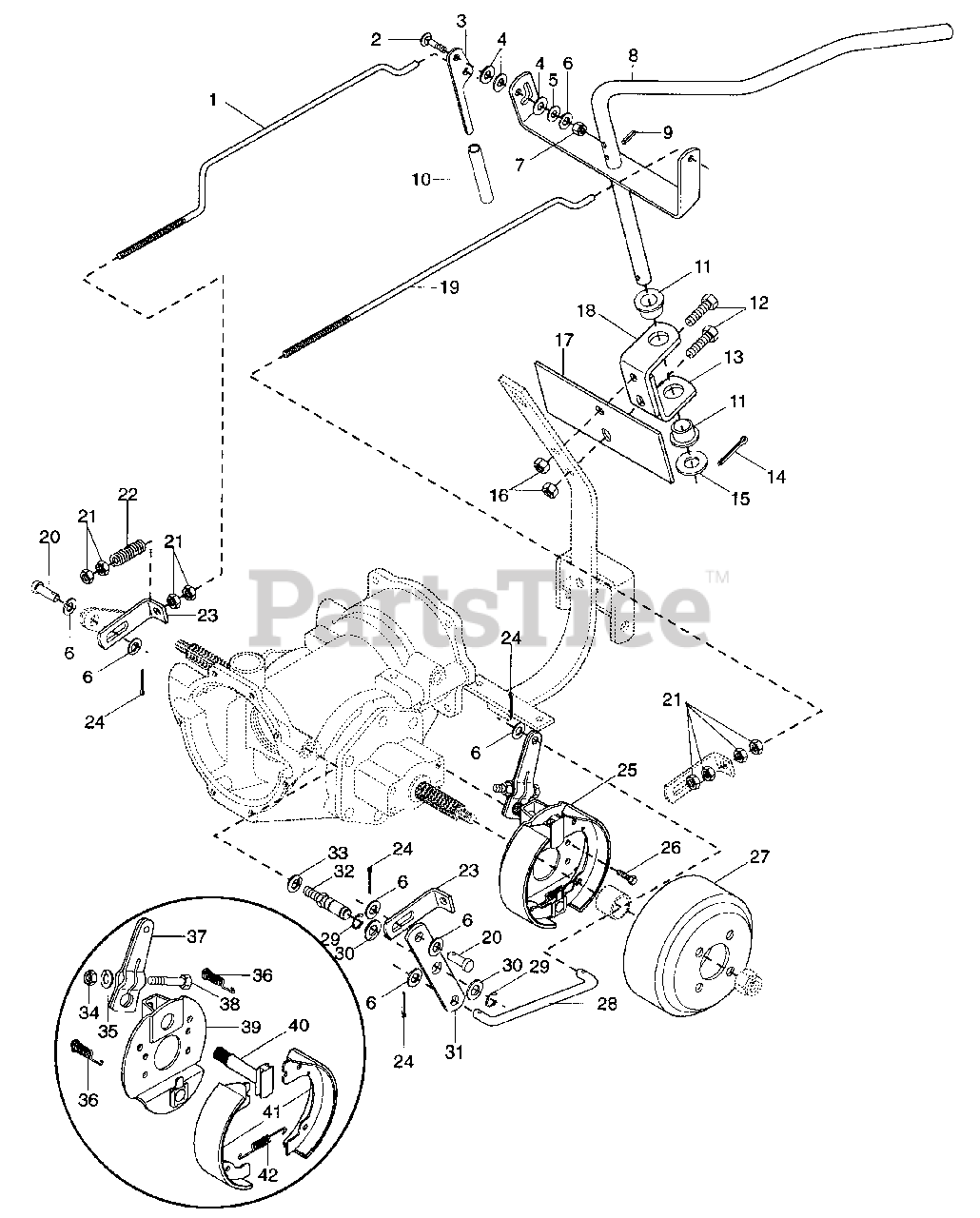

STEERING BRAKES Parts Diagram

  • Title
1

Gravely 049731

Rod, Brake Right Hand(16 HP)
(Superseded to 08600600)

Note: (16 HP)

$64.99

$

Usually ships in 4-12 days

0

2

Gravely 126411

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 023391

Handle, Parking Brake
(Superseded to 08529500)

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

5

Gravely 023394

Washer-Rubber .375 x .75 x .125
(Superseded to 06433700)

$

$

Not available

6

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 456004

Nut-Locking-Nylon .375 - 16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 047160

Weldment, Brake Handle
(Superseded to 08566600)

$310.99

$

Usually ships in 4-12 days

0

9

Gravely 273921

Pin-Roll .313 x 2.00
(Superseded to 05801300)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 044347

Grip, Brake Handle
(Superseded to 07529200)

$

$

Not available

11

Gravely 047070

Bushing-Flange 1.082 x 1.385 x .870 x 1.750
(Superseded to 05517700)

$

$

Not available

12

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

13

Gravely 041850

Bracket, Brake Handle
(Superseded to 08547851)

$

$

Not available

14

Gravely 103409

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

15

Gravely 046806

Washer-Flat-Steel 1.120 x 1.500 x .092
(Superseded to 06445300)

$

$

Not available

16

Gravely 435507

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 043395

Plate, Instruction
(Superseded to 58501000)

$

$

Not available

18

Gravely 041851

Bracket, Brake Handle
(Superseded to 08547951)

$

$

Not available

19

Gravely 042020

Rod, Brake
(Superseded to 08599800)

$

$

Not available

19

Gravely 049732

Rod, Brake
(Superseded to 08600700)

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 431780

Pin, Clevis
(Superseded to 08573400)

$

$

Not available

21

Gravely 124829

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 023392

Spring-Compression .105 x .61 x 2.50
(Superseded to 08330200)

$82.99

$

Usually ships in 4-12 days

0

23

Gravely 023389

Bracket, Adjustment
(Superseded to 08529400)

$51.99

$

Usually ships in 4-12 days

0

24

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

25

Gravely 023384

Brake. 7 x 1 3/4 Mechanical
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

26

Gravely 180121

Bolt-Hex .380 - 16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

27

Gravely 023385

Drum, 7 x 1 3/4
(Superseded to 04903400)

$

$

Not available

28

Gravely 023388

Rod, Brake Link
(Superseded to 08598600)

$

$

Not available

29

Gravely 018053

Ring-Retaining-External .625 x .042
(Superseded to 05708300)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 023387

Plate, Pivot
(Superseded to 08529300)

$

$

Not available

32

Gravely 041847

Stud, Pivot
(Superseded to 08547600)

$

$

Not available

33

Gravely 120384

Washer-Lock .50
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

34

Gravely 120368

Nut-Hex .312-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 023509

Spring, Shoe Ret Box
(Superseded to 08530300)

$

$

Not available

37

Gravely 023505

Arm, Cam Lever
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

38

Gravely 181618

Bolt-Hex .31-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

39

Gravely 023507

Bushing-Sleeve .277 x .375 x 1.37
(Superseded to 08530100)

$

$

Not available

40

Gravely 023506

Cam, Brake
(Superseded to 08530000)

$271.99

$

In Stock, only 1 left!

0

41

Gravely 023539

Kit, Brake Shoe
(Superseded to 08530400)

$268.99

$

Usually ships in 4-12 days

0

42

Gravely 023508

Spring, Shoe Return
(Superseded to 08530200)

$21.99

$

Usually ships in 4-12 days

0
