985302 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric Start (SN: 000101 & Above) SWIFTAMATIC DIFFERENTIAL - 4 SPEED Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, Electric Start

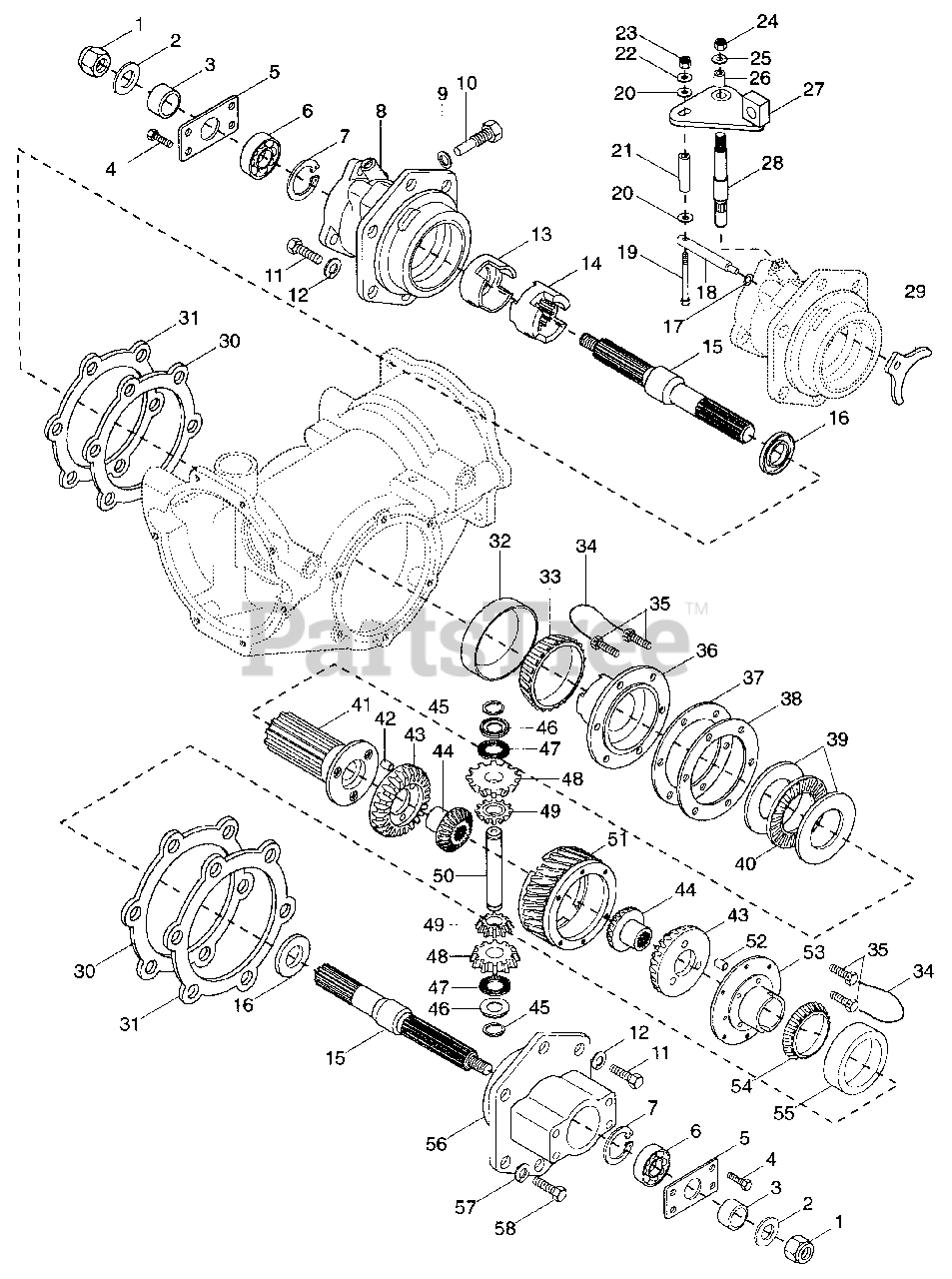

SWIFTAMATIC DIFFERENTIAL - 4 SPEED Parts Diagram

  • Title

1

Gravely 065203

Nut-Locking-Jam-Nylon .75-10
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 022501

Bushing, Sleeve 1.02 x 1.37 x .509
(Superseded to 08524600)

$

$

Not available

4

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 022503

Plate, End
(Superseded to 08524800)

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 032050

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

7

Gravely 022497

Ring-Retaining-lnternal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

8

Gravely 022494

Housing, Axle, 2 Speed
(Superseded to 08524100)

$853.99

$

Usually ships in 4-12 days

0

9

Gravely 012707

Washer-Nut .63 x .875 x .062
(Superseded to 06306300)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 006734

Bolt-Hex .62-18 x .493 x 1.25
(Superseded to 07013100)

$

$

Not available

11

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

12

Gravely 120384

Washer-Lock .50
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

13

Gravely 011156

Clutch, Stationary
(Superseded to 08582300)

$

$

Not available

14

Gravely 011632

Clutch, Shifting
(Superseded to 08585200)

$

$

Not available

15

Gravely 022493

Axle, Straight
(Superseded to 08524000)

$

$

Not available

16

Gravely 022506

Seal 1.188 x 2.000 x .250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

17

Gravely 006732

O-Ring .437 x .625 x .093
(Superseded to 05618700)

$

$

Not available

18

Gravely 006721

Pin, Clutch Sliding
(Superseded to 08577900)

$

$

Not available

19

Gravely 024383

Bolt-Round Head Square Neck .25-20 x 2.25
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 0243B2

Bushing, Sleeve .277 x .375 x 1.37

$

$

Not available

22

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 419454

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 419455

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 006724

Bushing-Sleeve .377 x .503 x .88
(Superseded to 05518100)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 006723

Weldment, Arm Shifter
(Superseded to 08578000)

$234.99

$

Usually ships in 4-12 days

0

28

Gravely 010505

Pivot, Stationary
(Superseded to 08580800)

$62.99

$

Usually ships in 4-12 days

0

29

Gravely 006719

Yoke, Shifting
(Superseded to 08577800)

$35.99

$

Usually ships in 4-12 days

0

30

Gravely 012597

Gasket, Axle Housing
(Superseded to 08556700)

$8.99

$

In Stock, only 2 left!

0

31

Gravely 012595

Shim, Axle Housing .005
(Superseded to 08589700)

$

$

Not available

32

Gravely 012500

Bearing-Race 4.34 x .741
(Superseded to 05428800)

$

$

Not available

33

Gravely 012501

Bearing-Cone 2.69 x .87
(Superseded to 05428900)

$109.99

$

Usually ships in 4-12 days

0

34

Gravely 018605

Wire, Bolt
(Superseded to 08598100)

$

$

Not available

35

Gravely 018604

Bolt-Special .31-18 x .75
(Superseded to 07017800)

$

$

Not available

36

Gravely 022496

Housing, Clutch
(Superseded to 08524300)

$220.99

$

Usually ships in 4-12 days

0

37

Gravely 006740

Shim, .020 Clutch Worm Gear
(Superseded to 08584600)

$16.99

$

Usually ships in 4-12 days

0

38

Gravely 006739

Shim, .005 Clutch Worm Gear
(Superseded to 08583200)

$

$

Not available

39

Gravely 022500

Washer-Thrust 2.002 x 2.740 x .031
(Superseded to 06433400)

$

$

Not available

40

Gravely 006743

Bearing-Needle-Thrust 2.0 x 2.74 x .010
(Superseded to 05427000)

$14.99

$

Usually ships in 4-12 days

0

41

Gravely 022498

Shifter, Splined Pinned
(Superseded to 08524400)

$

$

Not available

42

Gravely 034644

Pin-Dowel .375 x .375
(Superseded to 05807700)

$22.99

$

In Stock, only 3 left!

0

43

Gravely 006703

Gear, Pinned Bevel
(Superseded to 08577500)

$

$

Not available

44

Gravely 006709

Gear, Differential Bevel
(Superseded to 08577700)

$

$

Not available

45

Gravely 015733

Ring-Retaining .697 x .93
(Superseded to 05712000)

$6.99

$

Usually ships in 4-12 days

0

46

Gravely 015734

Bushing-Flange .761 x 1.24 x 1.24
(Superseded to 08503900)

$

$

Not available

47

Gravely 006741

Bearing-Neede-Thrust .754 x 1.24 x .078
(Superseded to 05410400)

$12.99

$

In Stock, Qty 7

0

48

Gravely 006702

Gear, Differential Shifting Bevel
(Superseded to 08577400)

$

$

Not available

49

Gravely 006708

Gear, Spider Bevel
(Superseded to 08577600)

$

$

Not available

50

Gravely 022499

Pin, Spider
(Superseded to 08524500)

$

$

Not available

51

Gravely 015729

Gear, Worm 8 Start
(Superseded to 08503800)

$

$

Not available

52

Gravely 006714

Pin-Dowel .38 x .500
(Superseded to 05809600)

$

$

Not available

53

Gravely 012126

Housing, Pinned
(Superseded to 08588300)

$

$

Not available

54

Gravely 012131

Cone, Roller Bearing; 50 MM x 21.5 MM
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

55

Gravely 012130

Cup, Roller Bearing; 82 MM x 17 MM
(Superseded to 05428200)

$39.99

$

Usually ships in 4-12 days

0

56

Gravely 022495

Housing, Axle
(Superseded to 08524200)

$

$

Not available

57

Gravely 045280

Seal-Oil Drain .563 x 1.250 x .091
(Superseded to 06432900)

$2.49

$

In Stock, only 1 left!

0

58

Gravely 013624

Bolt-Hex .50-13 x 1.312 Grade 5
(Superseded to 05941200)

$

$

Not available
