985300 - Gravely Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) WHEELS Parts Diagram

Walk-Behind 2-Wheel Tractor

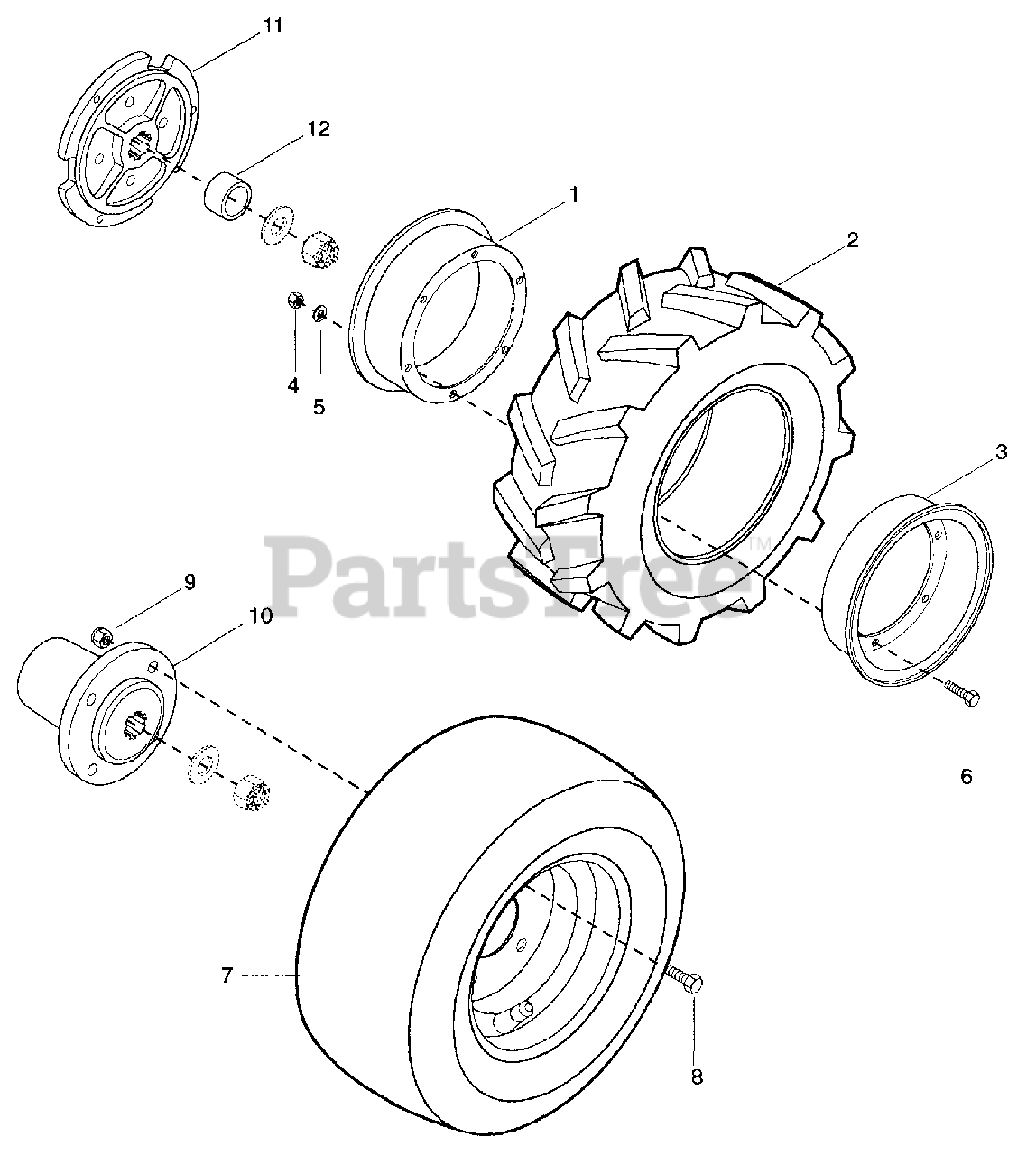

WHEELS Parts Diagram

  • Title

1

Gravely 012674

Wheel 7.71 x 1.25
(Superseded to 07133000)

$58.99

$

In Stock, only 2 left!

0

2

Gravely 018762

Tire 16 x 5W x 3 Firestone
(Superseded to 07127100)

$387.99

$

Usually ships in 4-12 days

0

3

Gravely 012673

Wheel-Disc 6.75 x 9.219
(Superseded to 07132900)

$68.99

$

In Stock, only 2 left!

0

4

Gravely 124829

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 428638

Bolt-Hex .38-16 x .625
(Superseded to 05940100)

$

$

Not available

6

Gravely 180120

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 046987

Tire/Wheel Assembly 8.50-8 x 18
(Superseded to 07130200)

$170.99

$

Usually ships in 4-12 days

0

7

Gravely 052679

Tire/Wheel Assembly 16 x 6.50-8
(Superseded to 07132000)

$

$

Not available

7

Gravely 071377

Tire/Wheel Assembly 4.80/4.00-8 Stud
(Superseded to 07137700)

$

$

Not available

7

Gravely 071378

Tire/Wheel 4.80/4.00-8 Trac Right Hand
(Superseded to 07137800)

$

$

Not available

7

Gravely 071387

Tire/Wheel 4.80/4.00-8 Trac Left Hand
(Superseded to 07138700)

$

$

Not available

8

Gravely 180178

Bolt-Hex .50-13 x 1.625
(Superseded to 05935900)

$

$

Not available

9

Gravely 435507

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 022551

Hub, 7" Wheel
(Superseded to 08526400)

$391.99

$

Usually ships in 4-12 days

0

11

Gravely 022507

Hub, Wheel
(Superseded to 58501600)

$541.99

$

Usually ships in 4-12 days

0

12

Gravely 022512

Bushing, Sleeve 1.02 x 1.37 x 1.13
(Superseded to 08525200)

$25.99

$

Usually ships in 4-12 days

0
