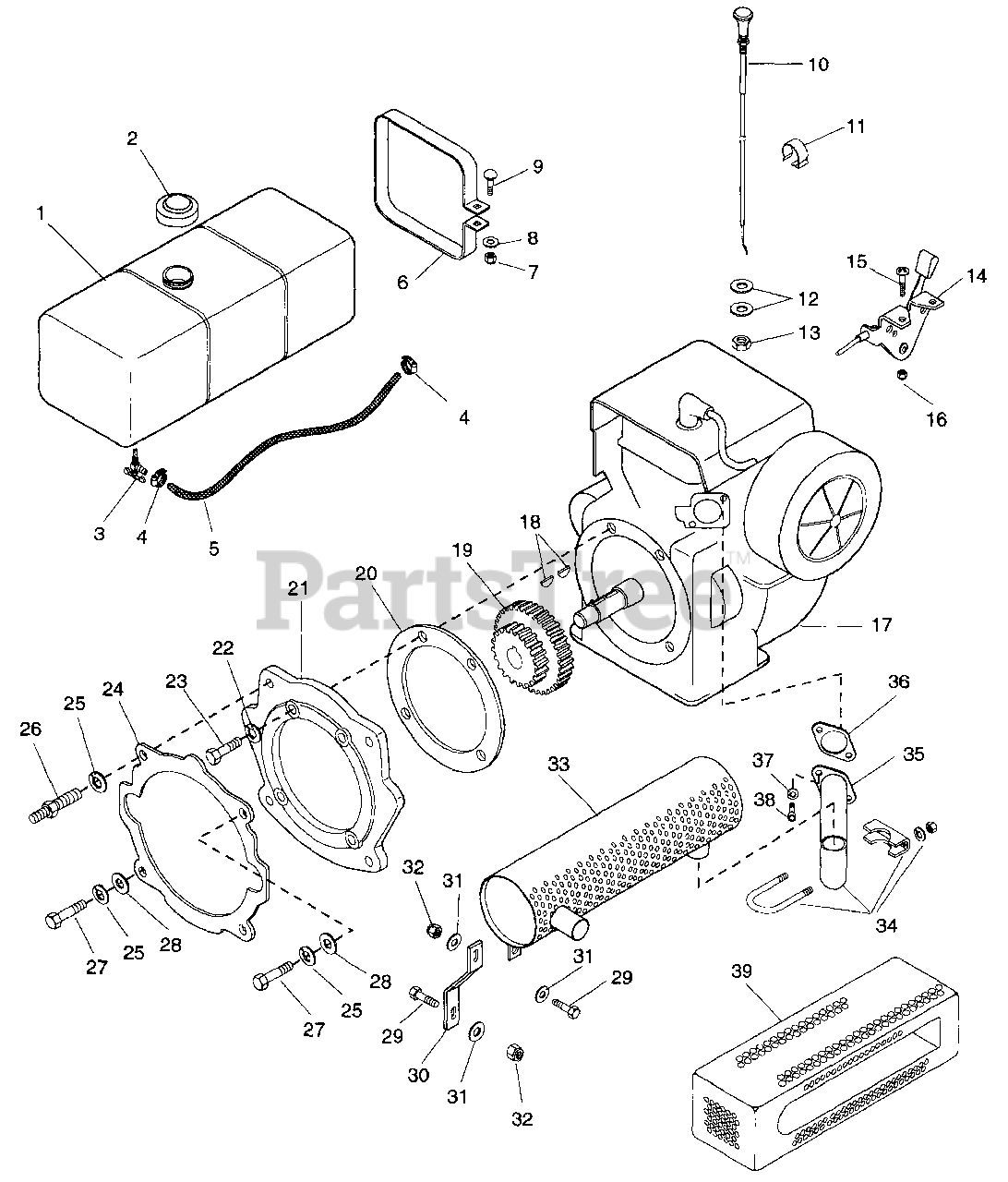

985300 - Gravely Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - PROFESSIONAL 12 Parts Diagram

Walk-Behind 2-Wheel Tractor

FUEL AND EXHAUST SYSTEM - PROFESSIONAL 12 Parts Diagram

  • Title

1

Gravely 010636

Assembly, Fuel Tank
(Superseded to 08575100)

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 010756

Cap, Gas Tank
(Superseded to 08582100)

$40.99

$

In Stock, only 1 left!

0

3

Gravely 007354

Valve and Strainer
(Superseded to 08860200)

$17.99

$

In Stock, only 1 left!

0

4

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 021134

Gas Line - Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 010640

Strap, Fuel Tank
(Superseded to 08581800)

$

$

Not available

7

Gravely 419454

Nut, Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 050365

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

062045

Bolt-Round Head Square Neck .25-20 x 1.75

$

$

Not available

10

Gravely 044797

Lever, Choke Control
(Superseded to 06927500)

$

$

Not available

11

Gravely 008260

Clamp
(Superseded to 06901200)

$5.49

$

In Stock, only 1 left!

0

12

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 124925

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

14

Gravely 044798

Lever, Throttle Control
(Superseded to 06927600)

$52.99

$

In Stock, only 2 left!

0

Gravely 043429

Lever, Control
(Superseded to 06926900)

$

$

Not available

15

Gravely 159920

Screw-Socket Head .31-18 x .75
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

16

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 041645

Engine,12 HP Elect Magnum

$

$

Not available

18

Gravely 124546

Key, Woodruff .16 x .63
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 017838

Gear, 10/12 DP 21/30 Teeth
(Superseded to 08505300)

$

$

Not available

20

Gravely 010732

Gasket, Engine to Adapter
(Superseded to 08602700)

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 010731

Adapter, Engine
(Superseded to 09022100)

$

$

Not available

22

Gravely 131099

Washer-Lock .375 x .155
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 180122

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 010635

Gasket, Chassis to Adapter
(Superseded to 08602800)

$15.99

$

In Stock, only 2 left!

0

25

Gravely 131100

Washer-Lock .438 x .133
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 040404

Stud
(Superseded to 08541700)

$

$

Not available

27

Gravely 180149

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

28

Gravely 120395

Washer-Flat-Steel .469 x .938 x .065
(Superseded to 06429400)

$

$

Not available

29

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 043267

Brace, Muffler
(Superseded to 08550500)

$

$

Not available

31

Gravely 120386

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 120375

Nut-Hex .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

33

Gravely 044399

Muffler
(Superseded to 08555600)

$

$

Not available

34

Gravely 014728

Clamp-Muffler 1.25
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

35

Gravely 044461

Header, Exhaust
(Superseded to 08601700)

$720.99

$

Usually ships in 4-12 days

0

36

Gravely 044390

Gasket, Exhaust
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

37

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 421705

Screw-Cap .31-18 x .75
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

39

Gravely 085615

Guard, Muffler
(Superseded to 08561500)

$59.99

$

Usually ships in 4-12 days

0
