985300 - Gravely Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) ELECTRICAL SYSTEM - ELECTRIC START MODELS Parts Diagram

Walk-Behind 2-Wheel Tractor

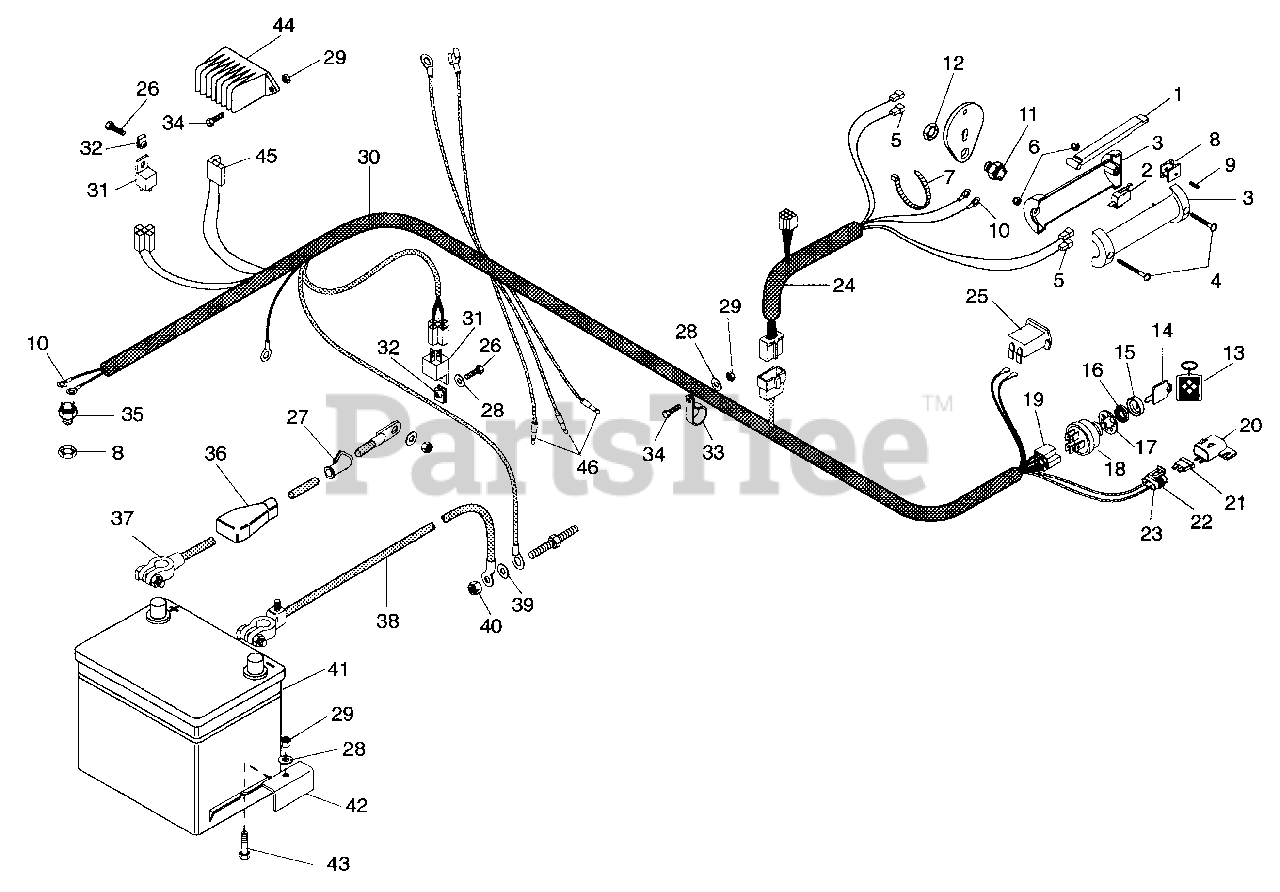

ELECTRICAL SYSTEM - ELECTRIC START MODELS Parts Diagram

  • Title

1

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

3

Gravely 088702

Handle, Left Hand & Right Hand
(Superseded to 08870200)

$35.99

$

In Stock, only 2 left!

0

4

Gravely 159967

Screw-Machine 10-24 x 1.50
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

6

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 088551

Holder Switch
(Superseded to 08855100)

$

$

Not available

9

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, only 2 left!

0

10

Gravely 051920

Terminal, Eyelet
(Superseded to 08572000)

$

$

Not available

11

Gravely 051919

Switch, Interlock Closed
(Superseded to 08571900)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

14

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

15

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 045489

Nut-Panel .562-24 Greco
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

17

Gravely 019667

Washer-Lock Internal .563 x .040
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

19

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

20

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

21

Gravely 048733

Fuse, 7.5 Amp

$

$

Not available

22

Gravely 045923

Terminal For 10-12 GA Wire
(Superseded to 20823001)

$

$

Not available

23

Gravely 045920

Assembly, Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

24

Gravely 047306

Harness, Wiring Handlebar
(Superseded to 08567001)

$

$

Not available

25

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

26

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

27

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

28

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 419454

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 051901

Harness, 10-HP Elect Kawasaki
(Superseded to 08571400)

$

$

Not available

31

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

32

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

33

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 051918

Switch, Interlock Open
(Superseded to 08571800)

$62.99

$

In Stock, only 3 left!

0

36

Gravely 034466

Cover, Battery Terminal
(Superseded to 07523100)

$

$

Not available

37

Gravely 011033

Cable, Battery to Magneto Switch
(Superseded to 08582200)

$

$

Not available

38

Gravely 040410

Cable, Negative Battery(12 & 16)
(Superseded to 08542000)

Note: (12 & 16)

$

$

Not available

39

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 456004

Nut-Locking-Nylon .375-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

41

Gravely 042597

Battery, 12 V

$

$

Not available

42

Gravely 037742

Clamp
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

43

062045

Bolt-Round Head Square Neck .25-20 x 1.75

$

$

Not available

44

Gravely 098009

Reg, Rectifier

$

$

Not available

45

Gravely 038800

Connector
(Superseded to 20652300)

$15.99

$

Usually ships in 4-12 days

0

46

Gravely 046136

Terminal, Male
(Superseded to 08973800)

$

$

Not available

Gravely 044321

Tie Wrap Black
(Superseded to 02589600)

$

$

Not available

Gravely 046417

Decal, E-System French
(Superseded to 05213300)

$

$

Not available

Gravely 046782

Decal
(Superseded to 05213600)

$

$

Not available
