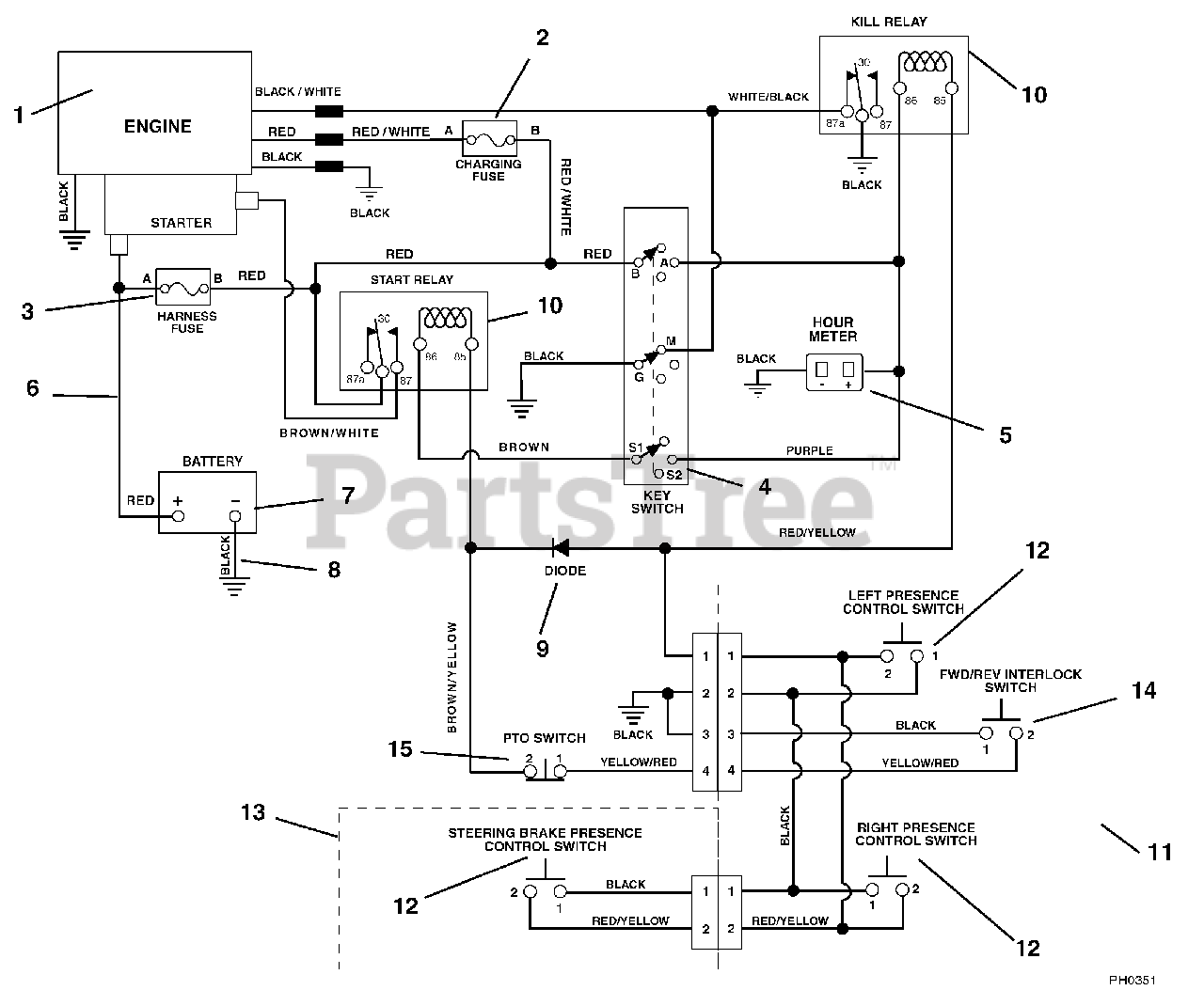

985119 - Gravely Walk-Behind 2-Wheel Tractor, 12hp (SN: 000101 & Above) Wiring Diagram Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp

Wiring Diagram Parts Diagram

  • Title

1

Gravely 08269400

Engine, Kohler Command Pro CS12ST (119)

Note: (119)

$

$

Not available

2

Gravely 00524700

Fuse 15 AMP

$

$

Not available

3

Gravely 00580600

Fuse 20 AMP

$5.99

$

In Stock, Qty 12

0

4

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

6

Gravely 02743300

Start Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

7

Gravely 01554800

Battery

$

$

Not available

8

Gravely 09222700

Cable, Negative Battery 35"
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 03081700

Molded Diode Plug- Clear 1 AMP

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

11

Gravely 08591000

Harness, Handlebar

$

$

Not available

12

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

13

Gravely 08594200

Harness, Steering Brake

$

$

Not available

14

Gravely 051919

Switch, Interlock Closed (Forward/Reverse)
(Superseded to 08571900)

Note: (Forward/Reverse)

$68.99

$

Usually ships in 4-12 days

0

15

Gravely 051918

Switch, Interlock Open (PTO)
(Superseded to 08571800)

Note: (PTO)

$62.99

$

In Stock, only 3 left!

0
