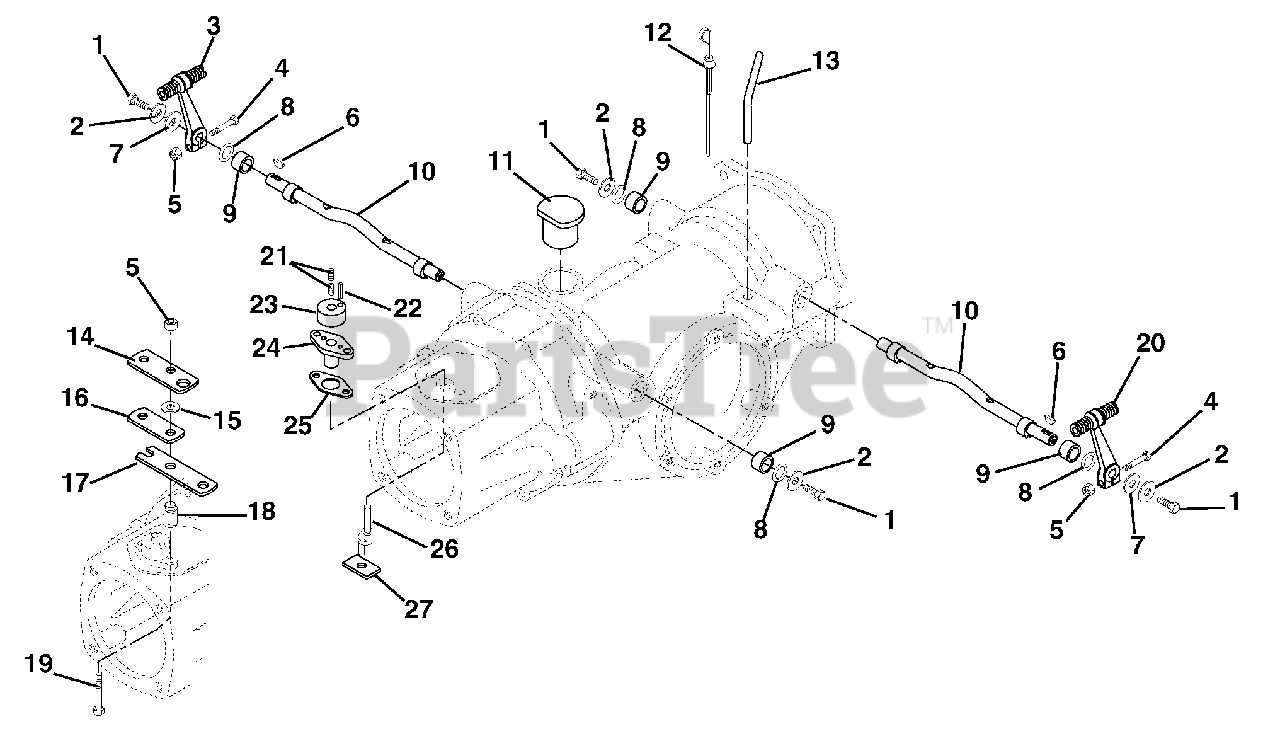

985119 - Gravely Walk-Behind 2-Wheel Tractor, 12hp (SN: 000101 & Above) Transmission (Cont.) Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp

Transmission (Cont.) Parts Diagram

  • Title

1

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 012694

Washer-Flat-Steel .281 x 1.250 x .048
(Superseded to 06403700)

$

$

Not available

3

Gravely 044485

Assembly-Forward Reverse Lever
(Superseded to 68500200)

$

$

Not available

4

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 124545

Key-Woodruff .13 x .63
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

7

Gravely 06439000

Washer-Flat .812 x 1.500 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 010663

O-Ring .750 x 1.0
(Superseded to 05619700)

$

$

Not available

9

Gravely 010618

Bushing-Sleeve .749 x 1.00 x .625
(Superseded to 08581300)

$

$

Not available

10

Gravely 010625

Shaft-Actuating
(Superseded to 08581500)

$410.99

$

Usually ships in 4-12 days

0

11

Gravely 010617

Plug-Oil Filler
(Superseded to 08581200)

$

$

Not available

12

Gravely 010622

Assembly-Dip Stick
(Superseded to 08581400)

$

$

Not available

13

Gravely 041562

Guide-Dip Stick
(Superseded to 08596200)

$

$

Not available

14

Gravely 042164

Bracket-PTO Switch
(Superseded to 08549600)

$

$

Not available

15

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 020822

Spacer-Strap
(Superseded to 08513400)

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 08573100

Arm-Shifter

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 012123

Bushing-Flange .344 x .562 x .866
(Superseded to 08588200)

$77.99

$

In Stock, only 2 left!

0

19

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 040667

Assembly-Hi-Lo Lever
(Superseded to 68505900)

$

$

Not available

21

Gravely 102591

Screw-Set .38-16 x .25
(Superseded to 06004700)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 456384

Pin-Roll .250 x .75
(Superseded to 05803600)

$2.99

$

In Stock, only 3 left!

0

23

Gravely 010688

Body-Shipper Shaft
(Superseded to 08581900)

$71.99

$

Usually ships in 4-12 days

0

24

Gravely 043351

Shaft-Shipper
(Superseded to 08552100)

$91.99

$

Usually ships in 4-12 days

0

24

Gravely 045187

Guard-Shipper Shaft
(Superseded to 08559900)

$

$

Not available

25

Gravely 018318

Gasket-Shipper Shaft
(Superseded to 08502300)

$5.49

$

Usually ships in 4-12 days

0

26

Gravely 043351

Shaft-Shipper
(Superseded to 08552100)

$91.99

$

Usually ships in 4-12 days

0

27

Gravely 043352

Block-Trunnion
(Superseded to 08552200)

$51.99

$

Usually ships in 4-12 days

0
