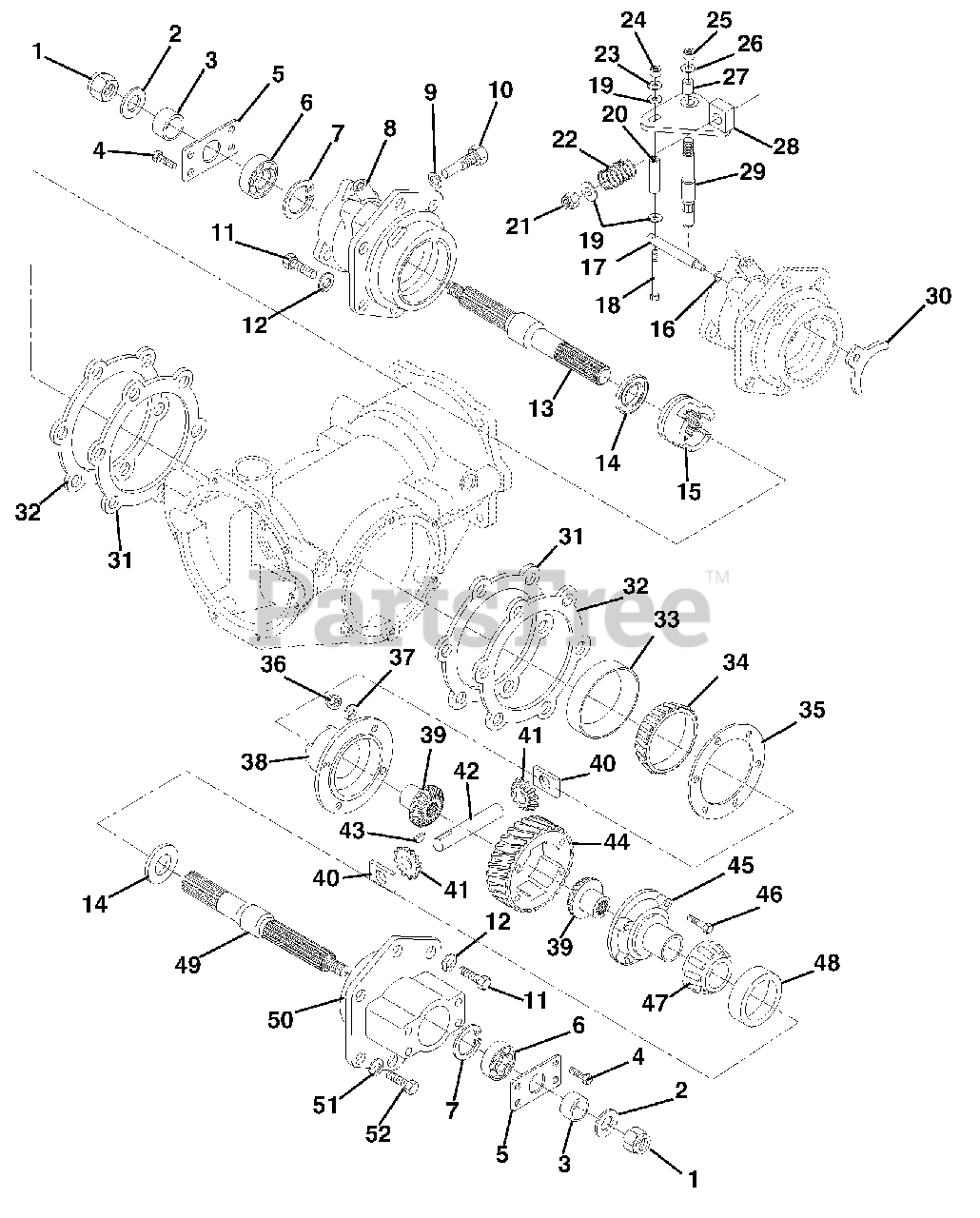

985119 - Gravely Walk-Behind 2-Wheel Tractor, 12hp (SN: 000101 & Above) Locking Differential - 2 Speed Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp

Locking Differential - 2 Speed Parts Diagram

  • Title

1

Gravely 06537900

Nut-Locking-Jam-Nylon .75-10

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 06439000

Washer-Flat .812 x 1.469 x .134
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 022501

Bushing-Sleeve 1.02 x 1.37 x 1.37
(Superseded to 08524600)

$

$

Not available

4

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 022503

Plate-End
(Superseded to 08524800)

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 032050

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

7

Gravely 022497

Ring-Retaining-Internal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

8

Gravely 022494

Housing-Axle-2 Speed
(Superseded to 08524100)

$853.99

$

Usually ships in 4-12 days

0

9

Gravely 012707

Washer-Nut .63 x .875 x .062
(Superseded to 06306300)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 006734

Bolt-Hex .62-18 x .493 x 1.25
(Superseded to 07013100)

$

$

Not available

11

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

12

Gravely 06307300

Washer-Locking .50
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

13

Gravely 041064

Axle-Straight Differential Locking
(Superseded to 08546200)

$

$

Not available

14

Gravely 022506

Seal 1.188 x 2.000 x .250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

15

Gravely 041063

Clutch-Sliding Differential Locking
(Superseded to 08546100)

$

$

Not available

16

Gravely 006732

O-Ring .437 x .625 x .093
(Superseded to 05618700)

$

$

Not available

17

Gravely 006721

Pin-Clutch Sliding
(Superseded to 08577900)

$

$

Not available

18

Gravely 05952700

Bolt-Round Head Square Neck .25-20 x 2.25
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 024382

Bushing-Sleeve .277 x .375 x 1.37
(Superseded to 08531000)

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 06535800

Nut-Locking-Nylon .375-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 010682

Spring-Compression .067 x .72 x 2.0
(Superseded to 08352800)

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 06437200

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06531000

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 006724

Bushing-Sleeve .377 x .503 x .88
(Superseded to 05518100)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 006723

Weldment-Arm Shifter
(Superseded to 08578000)

$234.99

$

Usually ships in 4-12 days

0

29

Gravely 010505

Pivot-Stationary
(Superseded to 08580800)

$62.99

$

Usually ships in 4-12 days

0

30

Gravely 006719

Yoke-Shifting
(Superseded to 08577800)

$35.99

$

Usually ships in 4-12 days

0

31

Gravely 012597

Gasket-Axle Housing
(Superseded to 08556700)

$8.99

$

In Stock, only 2 left!

0

32

Gravely 012595

Shim-Axle Housing
(Superseded to 08589700)

$

$

Not available

33

Gravely 012500

Bearing-Race 4.34 x .741
(Superseded to 05428800)

$

$

Not available

34

Gravely 012501

Bearing-Cone 2.69 x .87
(Superseded to 05428900)

$109.99

$

Usually ships in 4-12 days

0

35

Gravely 006739

Shim .005 Clutch Worm Gear
(Superseded to 08583200)

$

$

Not available

36

Gravely 120368

Nut-Hex .312-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 06310500

Washer-Locking-Internal .313 x .030

$0.99

$

In Stock, only 3 left!

0

38

Gravely 041065

Housing-Differential Locking
(Superseded to 08546300)

$

$

Not available

39

Gravely 006709

Gear-Differential Bevel
(Superseded to 08577700)

$

$

Not available

40

Gravely 022505

Block-Drive
(Superseded to 08525000)

$

$

Not available

41

Gravely 006708

Gear-Spider Bevel
(Superseded to 08577600)

$

$

Not available

42

Gravely 012556

Pin-Spider Pinion
(Superseded to 08589200)

$

$

Not available

43

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 013497

Gear-4 Lead Worm
(Superseded to 08500200)

$

$

Not available

45

Gravely 022504

Housing-Differential
(Superseded to 08524900)

$

$

Not available

46

Gravely 181623

Bolt-Hex .31-24 x 2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

47

Gravely 012131

Cone-Roller Bearing 50mm x 21.5mm
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

48

Gravely 012130

Cup-Roller Bearing 82mm x 17mm
(Superseded to 05428200)

$39.99

$

Usually ships in 4-12 days

0

49

Gravely 022493

Axle Straight
(Superseded to 08524000)

$

$

Not available

50

Gravely 022495

Housing Axle
(Superseded to 08524200)

$

$

Not available

51

Gravely 045280

Seal-Oil Drain .563 x 1.250 x .091
(Superseded to 06432900)

$2.49

$

In Stock, only 1 left!

0

52

Gravely 013624

Bolt-Hex .50-13 x 1.312 Grade 5
(Superseded to 05941200)

$

$

Not available
