985114 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) PTO Control Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

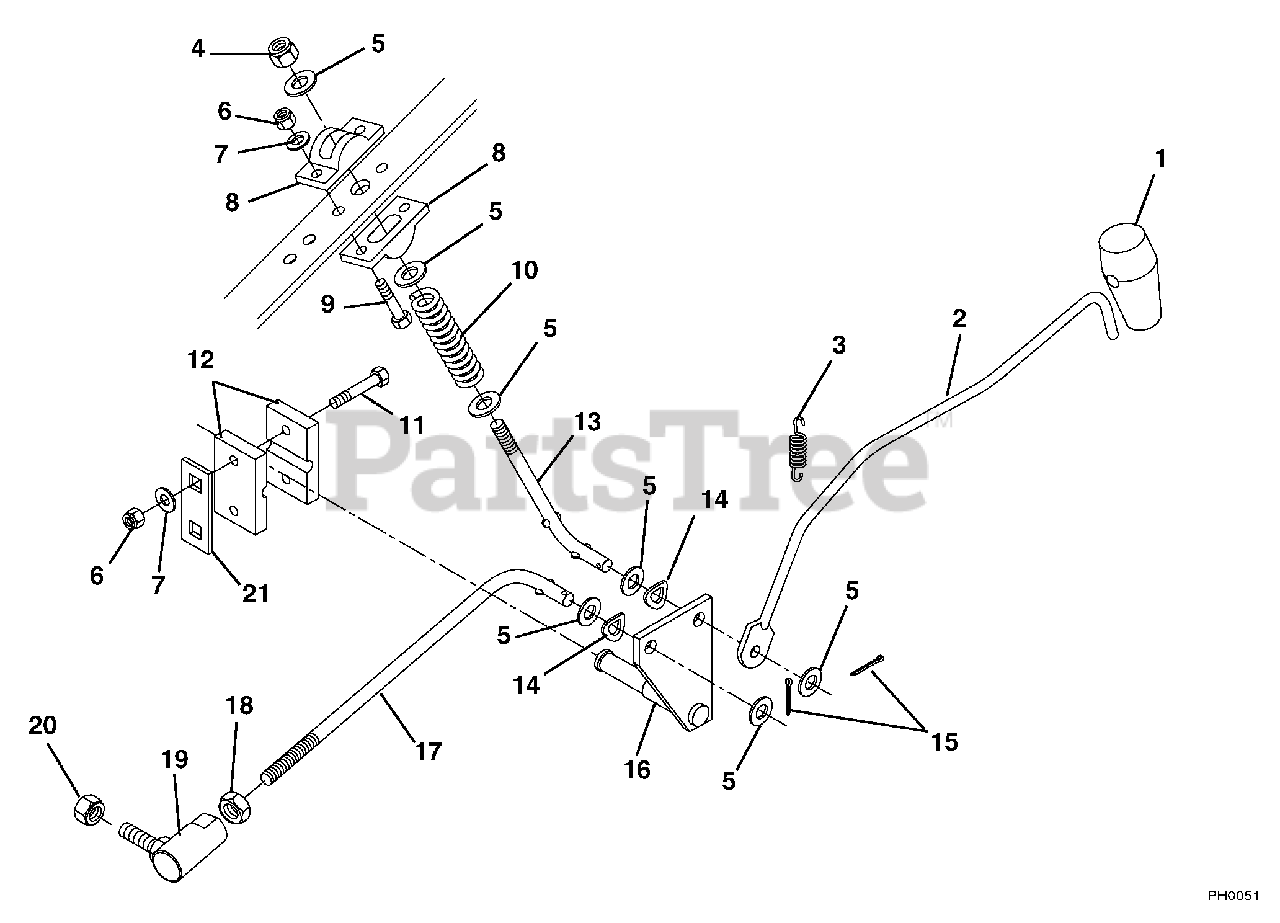

PTO Control Parts Diagram

  • Title
1

Gravely 010683

Handle-Rubber Shifter
(Superseded to 07537700)

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 046798

Rod-Shifter
(Superseded to 08600500)

$

$

Not available

3

Gravely 041042

Spring-Tension .041 x 1.25 x .50
(Superseded to 08336300)

$

$

Not available

4

Gravely 06529600

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 040637

Cam-Shifter
(Superseded to 07525400)

$

$

Not available

9

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

10

Gravely 040599

Spring-Compression .081 x .720 x 2.75
(Superseded to 08335500)

$

$

Not available

11

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 032353

Block-Shift Lever
(Superseded to 08505000)

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 046784

Link-Shifter Stop
(Superseded to 08600400)

$

$

Not available

14

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

16

Gravely 040849

Weldment, PTO Bellcrank
(Superseded to 08545300)

$

$

Not available

17

$45.99

$

Usually ships in 4-12 days

0

18

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 02917100

Ball Joint

$23.99

$

In Stock, Qty 6

0

20

Gravely 06538800

Nut-Locking Nylon .375-24 with Insert

$1.99

$

In Stock, only 4 left!

0

21

Gravely 021462

Shim-Mower Height Adjuster Bracket
(Superseded to 08517400)

$

$

Not available
