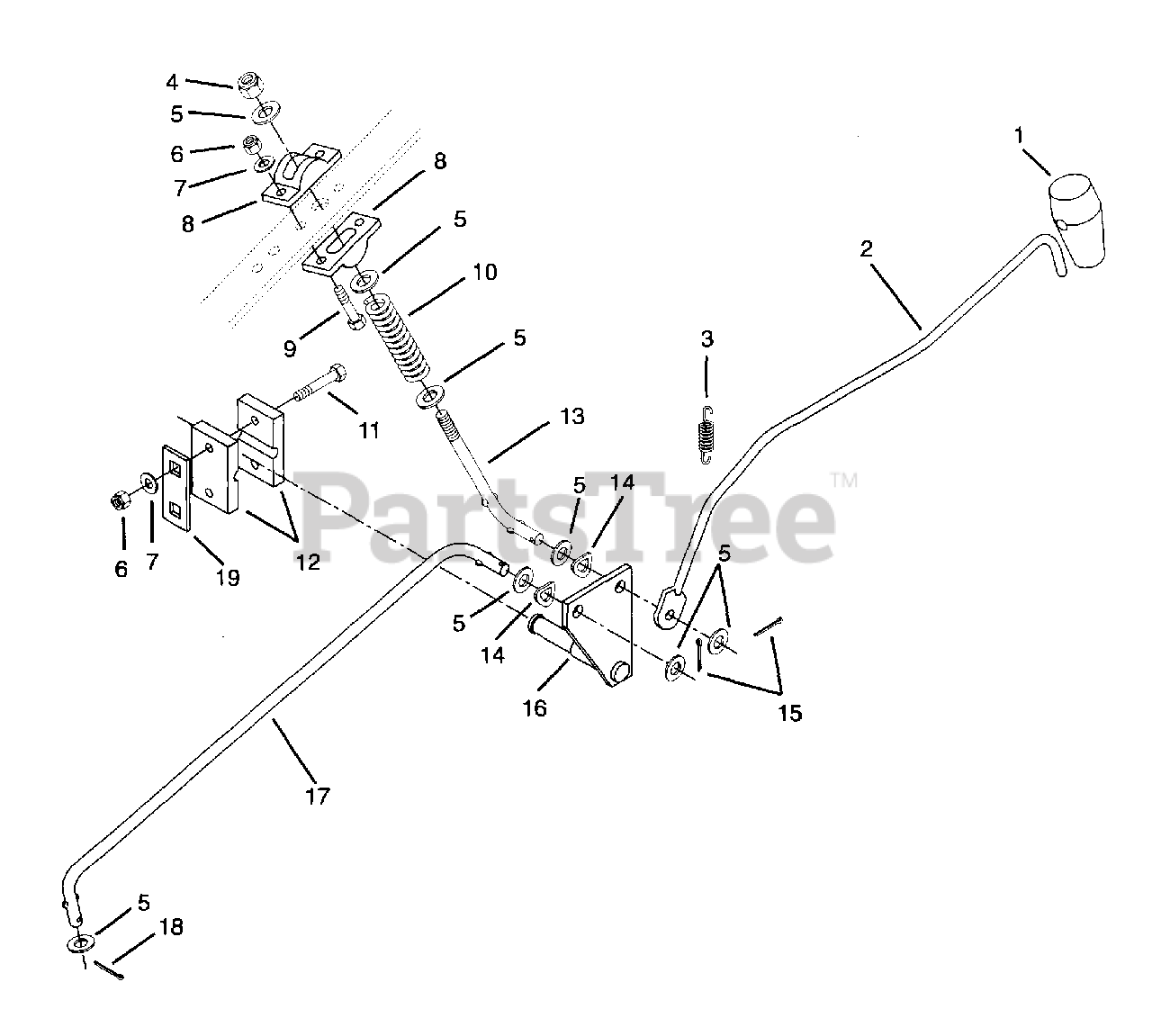

985113 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric Start (SN: 000101 & Above) PTO CONTROL Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, Electric Start

PTO CONTROL Parts Diagram

  • Title
1

Gravely 010683

Handle Rubber Shifter
(Superseded to 07537700)

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 046798

Rod, Shifter
(Superseded to 08600500)

$

$

Not available

3

Gravely 041042

Spring-Tension .041 x 1.25 x .50
(Superseded to 08336300)

$

$

Not available

4

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 040637

Cam, Shifter
(Superseded to 07525400)

$

$

Not available

9

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

10

Gravely 040599

Spring-Compression .081 x .720 x 2.75
(Superseded to 08335500)

$

$

Not available

11

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

12

Gravely 032353

Block, Shift Lever
(Superseded to 08505000)

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 040647

Link, Shifter Stop
(Superseded to 08599500)

Note: (110,111,112,113,304)

$

$

Not available

13

Gravely 046784

Link, Shifter Stop
(Superseded to 08600400)

Note: (114,305,306)

$

$

Not available

14

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

16

Gravely 040849

Weldment, PTO Bellcrank
(Superseded to 08545300)

$

$

Not available

17

Gravely 044662

Link, PTO Control
(Superseded to 58501700)

$

$

Not available

18

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

19

Gravely 021462

Shim, Mower Height Adjuster Bracket
(Superseded to 08517400)

$

$

Not available
