985112 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Electric Start (SN: 000101 & Above) WIRING DIAGRAM 12 HP - ELECTRIC START Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, Electric Start

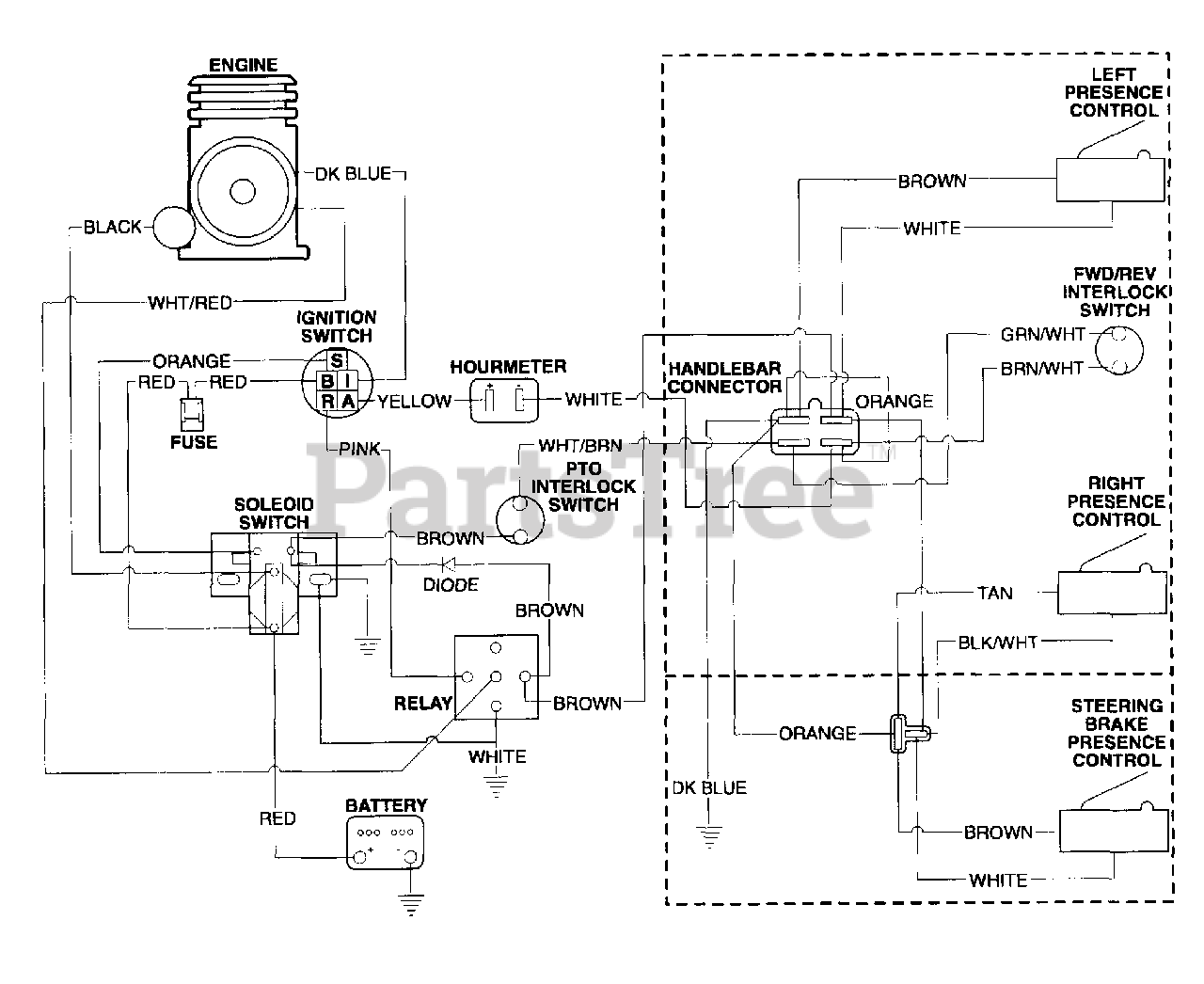

WIRING DIAGRAM 12 HP - ELECTRIC START Parts Diagram
