985110 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) ELECTRICAL SYSTEM - MANUAL START Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

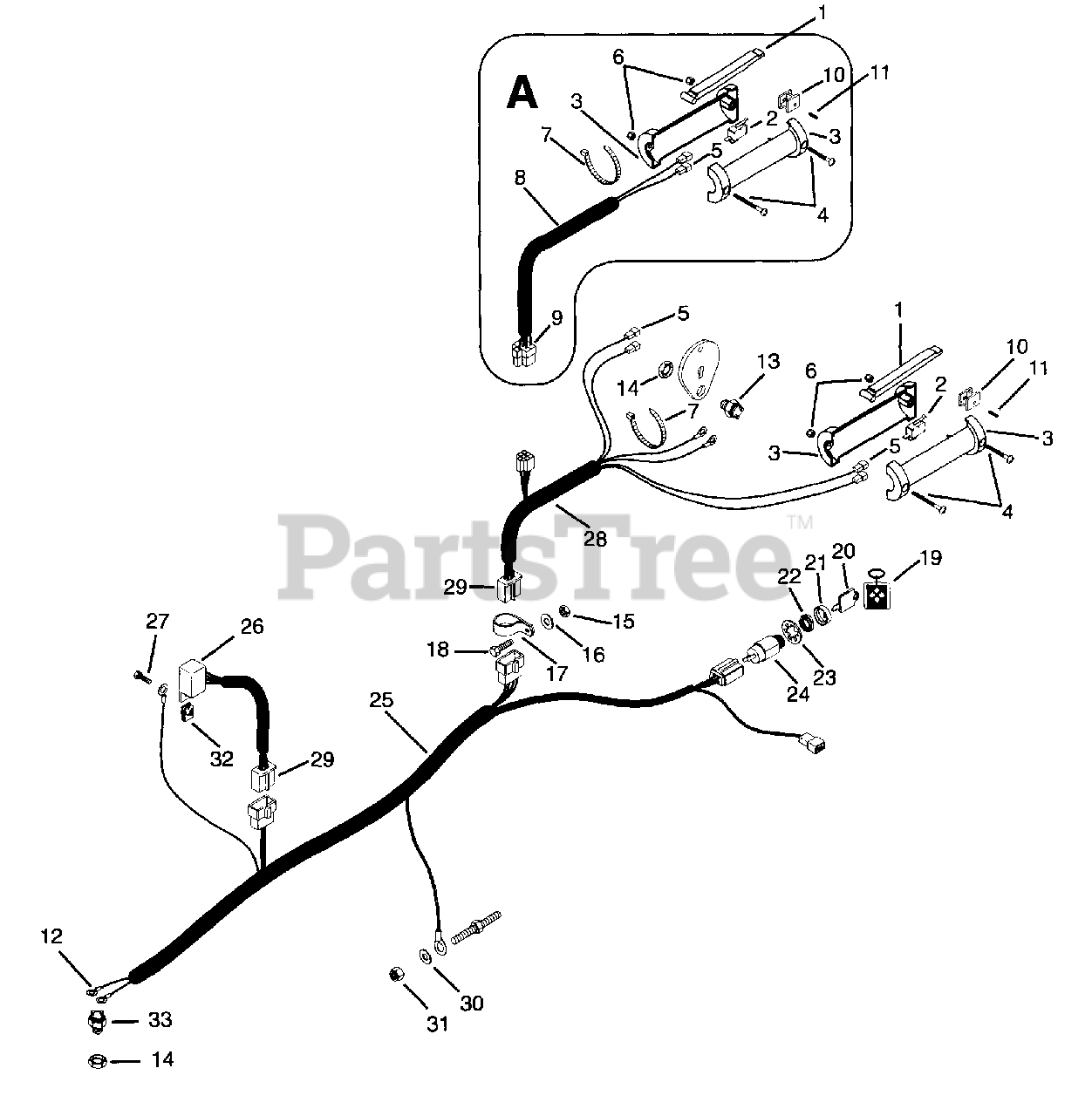

ELECTRICAL SYSTEM - MANUAL START Parts Diagram

  • Title

1

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

3

Gravely 08870200

Handle, Left Hand & Right Hand

$35.99

$

In Stock, only 2 left!

0

4

Gravely 06118200

Screw-Machine 10-24 x 1.50

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

6

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 047307

Harness, Steering Brake
(Superseded to 08567100)

$

$

Not available

9

Gravely 038057

Connector
(Superseded to 20645000)

$

$

Not available

10

Gravely 08855100

Holder, Switch

$

$

Not available

11

Gravely 05808100

Pin-Roll .094 x .750

$0.99

$

In Stock, only 2 left!

0

12

Gravely 051920

Terminal, Eyelet
(Superseded to 08572000)

$

$

Not available

13

Gravely 051919

Switch, Interlock Closed
(Superseded to 08571900)

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 03334000

Cable Clamp

$

$

Not available

18

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

20

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

21

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

23

Gravely 06306900

Washer-Lock Internal .625 x .045
(Superseded to 06300124)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 52406900

Switch Assembly

$39.99

$

Usually ships in 4-12 days

0

25

Gravely 051896

Harness, 8 & 12-HP Recoil
(Superseded to 08570900)

$

$

Not available

26

Gravely 042178

Module
(Superseded to 58500500)

$

$

Not available

27

Gravely 05944200

Bolt-Hex .25-20 x .63

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 047306

Harness, Wiring Handlebar
(Superseded to 08567001)

$

$

Not available

29

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

30

Gravely 120395

Washer-Flat-Steel .459 x .938 x .065
(Superseded to 06429400)

$

$

Not available

31

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

33

Gravely 051918

Switch, Interlock Open
(Superseded to 08571800)

$62.99

$

In Stock, only 3 left!

0
