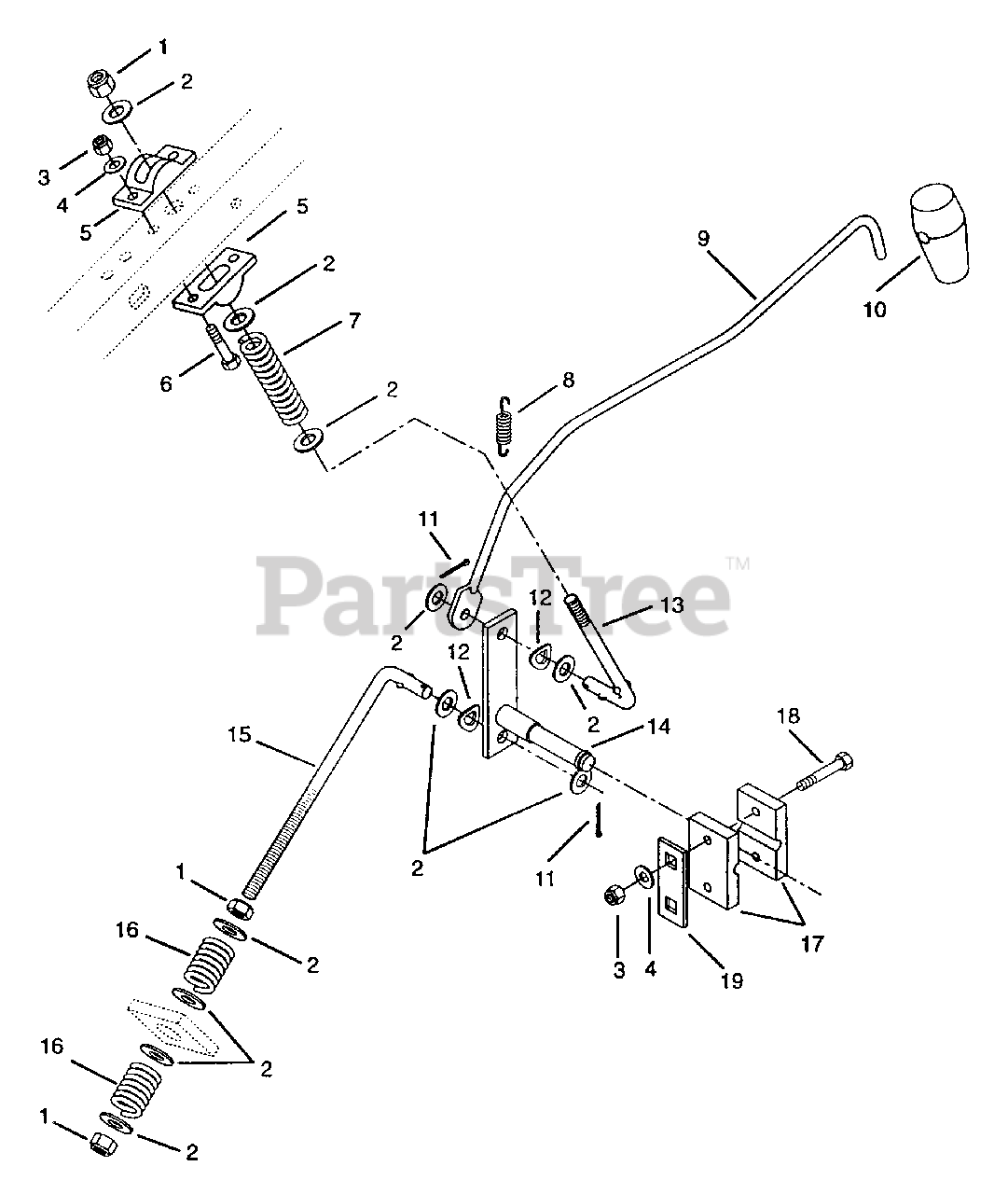

985109 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) RANGE/DIFFERENTIAL LOCK CONTROL Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

RANGE/DIFFERENTIAL LOCK CONTROL Parts Diagram

  • Title
1

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 040637

Cam, Shifter
(Superseded to 07525400)

$

$

Not available

6

Gravely 180022

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

7

Gravely 040599

Spring-Compression .081 x .720 x 2.75
(Superseded to 08335500)

$

$

Not available

8

Gravely 041042

Spring-Tension .041 x 1.25 x .50
(Superseded to 08336300)

$

$

Not available

9

Gravely 046798

Rod, Shifter
(Superseded to 08600500)

$

$

Not available

10

Gravely 010683

Handle, Rubber Shifter
(Superseded to 07537700)

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 177923

Pin-Cotter .12 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

12

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

13

Gravely 040647

Link, Shifter Stop
(Superseded to 08599500)

Note: Models (103,104,105,106,107,108)

$

$

Not available

13

Gravely 046784

Link, Shifter Stop
(Superseded to 08600400)

Note: Model (109)

$

$

Not available

14

Gravely 040632

Weldment, Shifter Crank
(Superseded to 08543400)

$

$

Not available

15

Gravely 040648

Link, Shifter
(Superseded to 08599600)

$

$

Not available

16

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 032353

Block, Shift Lever
(Superseded to 08505000)

$21.99

$

Usually ships in 4-12 days

0

18

Gravely 180034

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

19

Gravely 021462

Shim, Mower Height Adjuster Bracket
(Superseded to 08517400)

$

$

Not available
