985103 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) STANDARD DIFFERENTIAL - 2 SPEED Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

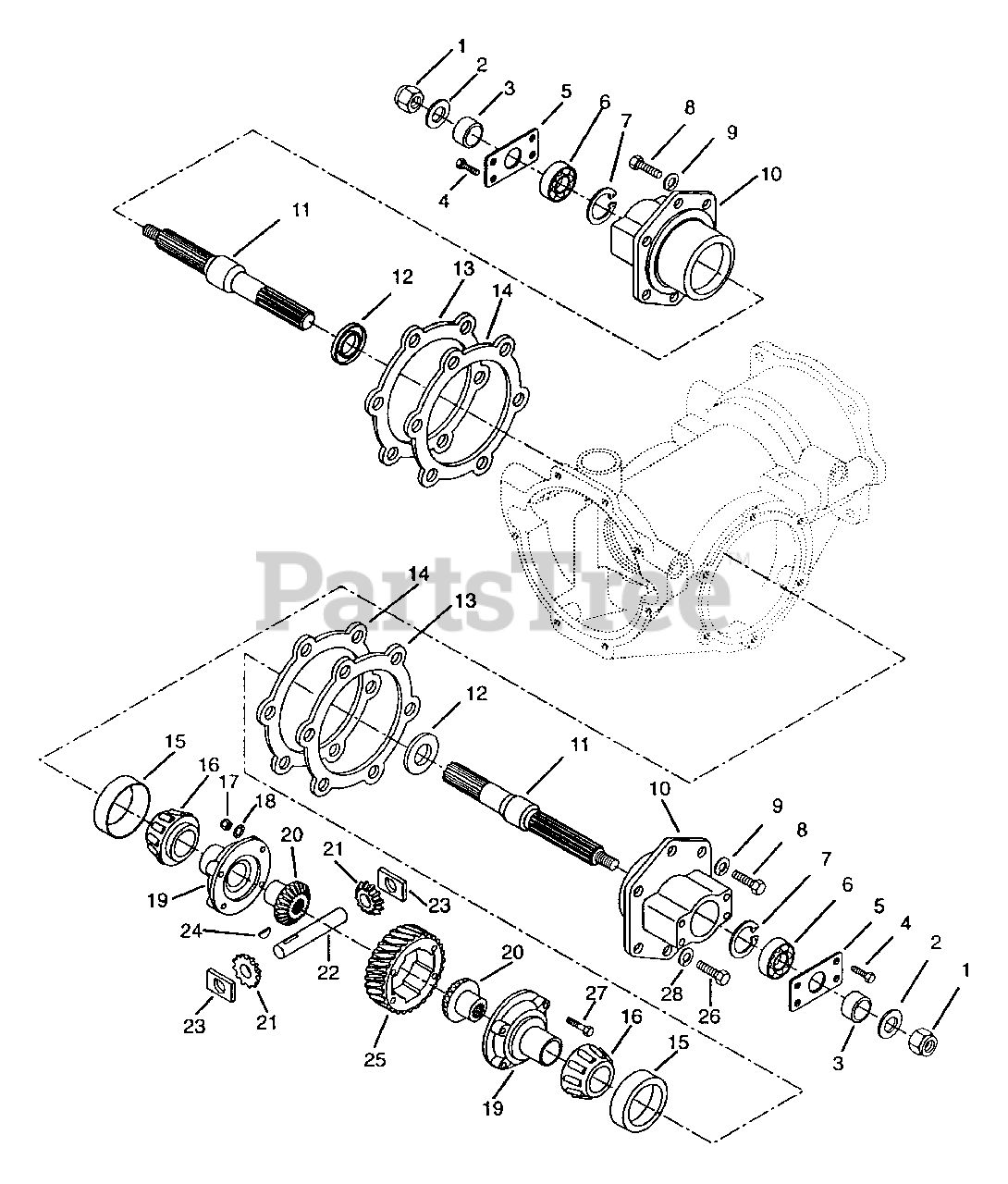

STANDARD DIFFERENTIAL - 2 SPEED Parts Diagram

  • Title

1

Gravely 06520300

Nut-Locking-Jam-Nylon .75-10
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 022501

Spacer 1.008 x 1.377 x .509
(Superseded to 08524600)

$

$

Not available

4

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 022503

Plate, End
(Superseded to 08524800)

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 032050

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05416000)

$14.99

$

In Stock, Qty 7

0

7

Gravely 022497

Ring-Retaining-Internal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

8

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

9

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 022495

Housing, Axle
(Superseded to 08524200)

$

$

Not available

11

Gravely 022493

Axle, Straight
(Superseded to 08524000)

$

$

Not available

12

Gravely 022506

Seal 1.188 x 2.000 x .250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

13

Gravely 012595

Shim, Axle Housing .005
(Superseded to 08589700)

$

$

Not available

14

Gravely 012597

Gasket, Axle Housing
(Superseded to 08556700)

$8.99

$

In Stock, only 2 left!

0

15

Gravely 012130

Cup, Roller Bearing 82 MM x 17 MM
(Superseded to 05428200)

$39.99

$

Usually ships in 4-12 days

0

16

Gravely 012131

Cone, Roller Bearing 50 MM x 21.5 MM
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

17

Gravely 120368

Nut-Hex .312-24 Grade 2
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 138538

Washer-Lock Internal .313 x .030
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 085249

Housing, Differential

$

$

Not available

20

Gravely 006709

Gear, Differential Bevel
(Superseded to 08577700)

$

$

Not available

21

Gravely 006708

Gear, Spider Bevel
(Superseded to 08577600)

$

$

Not available

22

Gravely 012556

Pin, Spider Pinion
(Superseded to 08589200)

$

$

Not available

23

Gravely 022505

Block, Drive
(Superseded to 08525000)

$

$

Not available

24

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 013498

Gear, 6-Lead Worm
(Superseded to 08500300)

$382.99

$

Usually ships in 4-12 days

0

26

Gravely 013624

Bolt-Hex .50-13 x 1.312 Grade 5
(Superseded to 05941200)

$

$

Not available

27

Gravely 181623

Bolt-Hex .31-24 x 2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 045280

Seal-Oil Drain .563 x 1.250 x .091
(Superseded to 06432900)

$2.49

$

In Stock, only 1 left!

0
