985103 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) LOCKING DIFFERENTIAL - 2 SPEED Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

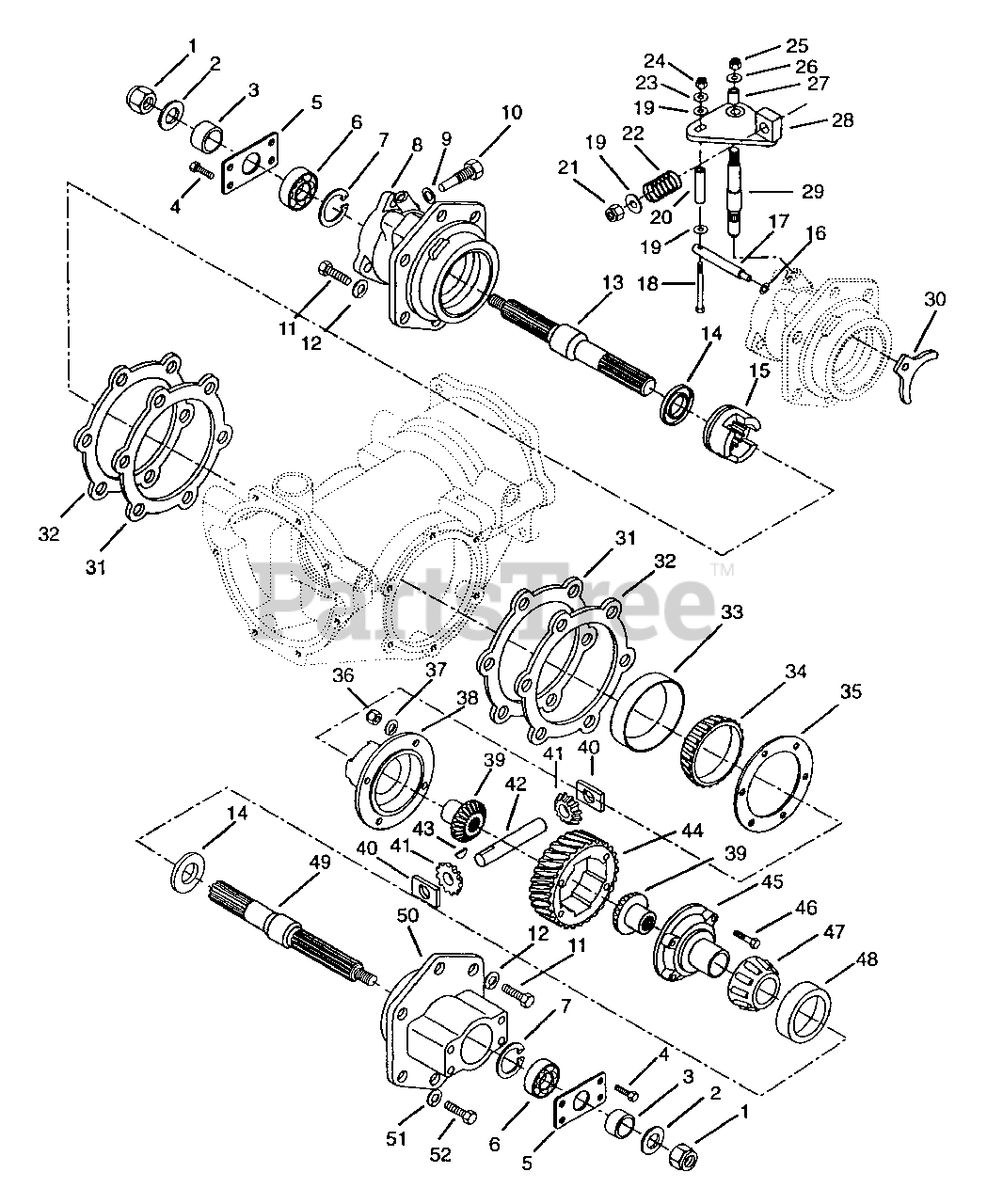

LOCKING DIFFERENTIAL - 2 SPEED Parts Diagram

  • Title

1

Gravely 06520300

Nut-Locking-Jam-Nylon .75-10
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 022501

Spacer 1.008 x 1.377 x .509
(Superseded to 08524600)

$

$

Not available

4

Gravely 180120

Bolt-Hex.38-16 x.75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 022503

Plate, End
(Superseded to 08524800)

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 032050

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

7

Gravely 022497

Ring-Retaining-Internal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

8

Gravely 022494

Housing, Axle, 2 Speed
(Superseded to 08524100)

$853.99

$

Usually ships in 4-12 days

0

9

Gravely 012707

Washer-Nut .63 x .875 x .062
(Superseded to 06306300)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 006734

Bolt-Hex .62-18 x .493 x 1.25
(Superseded to 07013100)

$

$

Not available

11

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

12

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

13

Gravely 041064

Axle, Straight Differential Locking
(Superseded to 08546200)

$

$

Not available

14

Gravely 022506

Seal 1.188 x 2.000 x .250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

15

Gravely 041063

Clutch, Sliding Differential Locking
(Superseded to 08546100)

$

$

Not available

16

Gravely 006732

O-Ring .437 x .625 x .093
(Superseded to 05618700)

$

$

Not available

17

Gravely 006721

Pin, Clutch Sliding
(Superseded to 08577900)

$

$

Not available

18

Gravely 024383

Bolt-Round Head Square Neck .25-20 x 2.25 Grade 8
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 024382

Bushing, Sleeve .277 x .375 x 1.37
(Superseded to 08531000)

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 010682

Spring-Compression .067 x .72 x 2.0
(Superseded to 08352800)

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 006724

Bushing-Sleeve .377 x .503 x .88
(Superseded to 05518100)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 006723

Weldment, Arm Shifter
(Superseded to 08578000)

$234.99

$

Usually ships in 4-12 days

0

29

Gravely 010505

Pivot, Stationary
(Superseded to 08580800)

$62.99

$

Usually ships in 4-12 days

0

30

Gravely 006719

Yoke, Shifting
(Superseded to 08577800)

$35.99

$

Usually ships in 4-12 days

0

31

Gravely 012597

Gasket, Axle Housing
(Superseded to 08556700)

$8.99

$

In Stock, only 2 left!

0

32

Gravely 012595

Shim, Axle Housing .005
(Superseded to 08589700)

$

$

Not available

33

Gravely 012500

Bearing-Race 4.34 x .741
(Superseded to 05428800)

$

$

Not available

34

Gravely 012501

Bearing-Cone 2.69 x .87
(Superseded to 05428900)

$109.99

$

Usually ships in 4-12 days

0

35

Gravely 006739

Shim, .005 Clutch Worm Gear
(Superseded to 08583200)

$

$

Not available

36

Gravely 120368

Nut-Hex .312-24 Grade 2
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 138538

Washer-Lock Internal .313 x .030
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

38

Gravely 041065

Housing, Differential Locking
(Superseded to 08546300)

$

$

Not available

39

Gravely 006709

Gear, Differential Bevel
(Superseded to 08577700)

$

$

Not available

40

Gravely 022505

Block, Drive
(Superseded to 08525000)

$

$

Not available

41

Gravely 006708

Gear, Spider Bevel
(Superseded to 08577600)

$

$

Not available

42

Gravely 012556

Pin, Spider Pinion
(Superseded to 08589200)

$

$

Not available

43

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 013497

Gear, 4-Lead Worm
(Superseded to 08500200)

$

$

Not available

Gravely 013498

Gear, 6-Lead Worm
(Superseded to 08500300)

$382.99

$

Usually ships in 4-12 days

0

45

Gravely 022504

Housing, Differential
(Superseded to 08524900)

$

$

Not available

46

Gravely 181623

Bolt-Hex .31-24 x 2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

47

Gravely 012131

Cone Roller Bearing 50 MM x 21.5 MM
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

48

Gravely 012130

Cup, Roller Bearing 82 MM x 17 MM
(Superseded to 05428200)

$39.99

$

Usually ships in 4-12 days

0

49

Gravely 022493

Axle, Straight
(Superseded to 08524000)

$

$

Not available

50

Gravely 022495

Housing, Axle
(Superseded to 08524200)

$

$

Not available

51

Gravely 045280

Seal-Oil Drain .563 x 1.250 x .091
(Superseded to 06432900)

$2.49

$

In Stock, only 1 left!

0

52

Gravely 013624

Bolt-Hex .50-13 x 1.312 Grade 5
(Superseded to 05941200)

$

$

Not available

Gravely 010389

Bearing-Cone 1.25 x .66
(Superseded to 05404700)

Note: Not Shown

$20.99

$

In Stock, Qty 20+

0

Gravely 021242

Weldment, 6-Lead Worm
(Superseded to 08514500)

Note: Not Shown

$711.99

$

Usually ships in 4-12 days

0

Gravely 012332

Bearing-Cone 1.250 x 2.875
(Superseded to 05428400)

Note: Not Shown

$

$

Not available

Gravely 022560

Weldment Worm Shaft Assembly 6 Lead
(Superseded to 68501000)

Note: Not Shown

$

$

Not available

Gravely 021241

Weldment, 4 Lead Worm
(Superseded to 08514400)

Note: Not Shown

$

$

Not available

Gravely 048853

Decal, Differential Lock French
(Superseded to 05214400)

Note: Not Shown

$

$

Not available

Gravely 68512100

4 Lead Worm & Bearing Assembly

Note: Not Shown

$

$

Not available
