985103 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) DIRECTION CONTROL Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

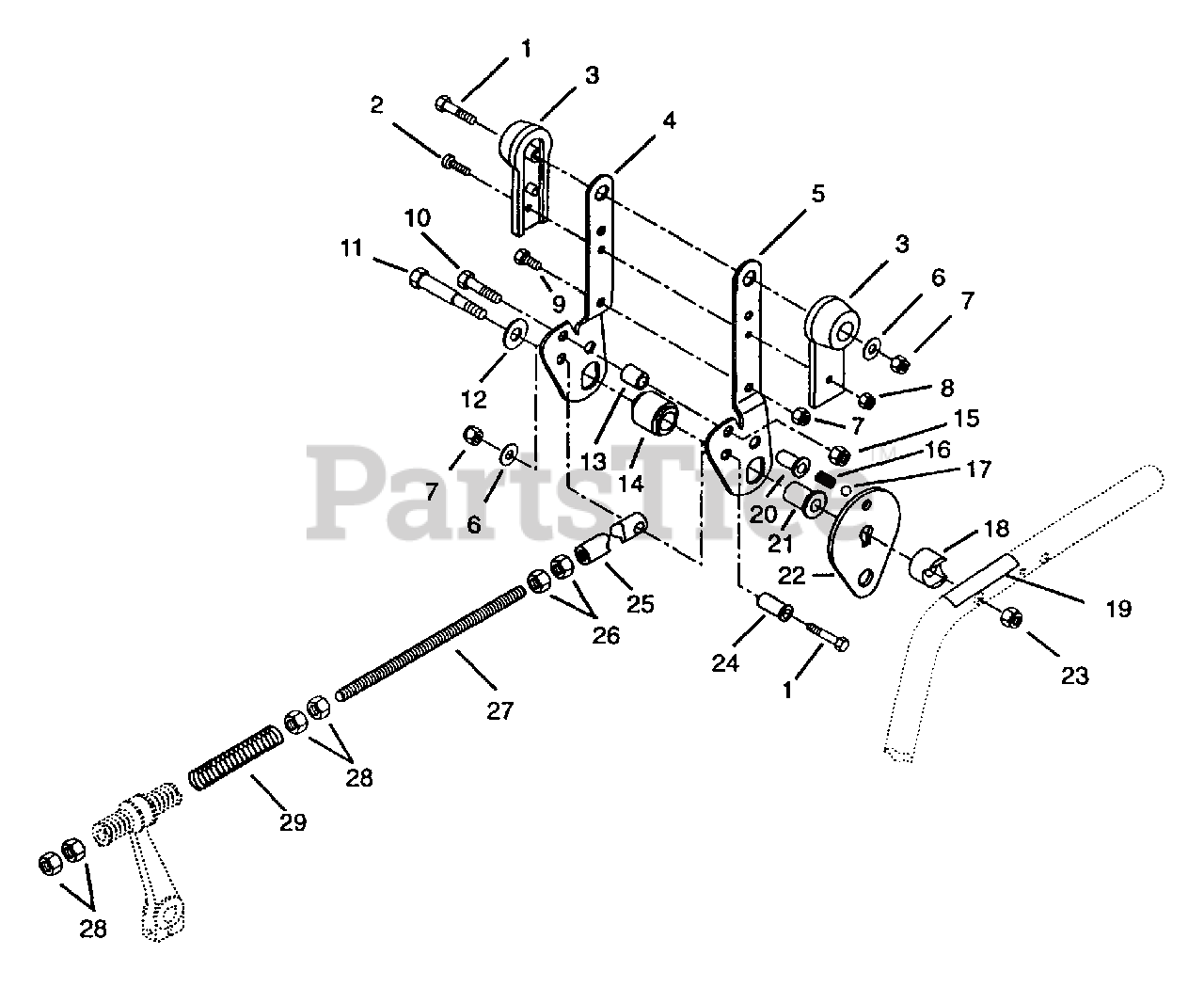

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 180034

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 159341

Screw-Machine 6-32 x .625
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 041252

Knob, Handle Control
(Superseded to 07525800)

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 040601

Handle, Control Right Hand
(Superseded to 08542600)

$

$

Not available

5

Gravely 040600

Handle, Control Left Hand
(Superseded to 08542500)

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 050365

Washer-Flat-Steel .261 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 427254

Nut-Locking-Machine 6-32
(Superseded to 06538900)

$

$

Not available

9

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

10

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

11

Gravely 047566

Bolt-Hex .38-16 x 3.5
(Superseded to 07022800)

$

$

Not available

12

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 041593

Sleeve, Handle Stop
(Superseded to 08508900)

$

$

Not available

14

Gravely 041594

Bushing Flange .751 x 1.13 x 1.07
(Superseded to 07526300)

$34.99

$

Usually ships in 4-12 days

0

15

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 012586

Spring-Compression .038 x .281 x .88
(Superseded to 08353600)

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 274301

Ball, .312 Guard 2000
(Superseded to 05429900)

$

$

Not available

18

Gravely 042170

Bracket, Handle Pivot
(Superseded to 08549800)

$

$

Not available

19

Gravely 021090

Decal, Forward-Reverse
(Superseded to 05201000)

$

$

Not available

20

Gravely 044361

Bushing-Flange .320 x .750 x 1.280
(Superseded to 05517200)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 042169

Bushing-Flange .515 x .746 x 1.290 x 1.000
(Superseded to 05527200)

$29.99

$

Usually ships in 4-12 days

0

22

Gravely 044362

Plate, Neutral
(Superseded to 08555300)

$

$

Not available

23

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 041244

Bushing-Flange .257 x .38 x 1.080
(Superseded to 05521000)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 045576

Rod, Control Forward Reverse
(Superseded to 08560600)

$113.99

$

Usually ships in 4-12 days

0

26

Gravely 120377

Nut-Hex.375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 045577

Rod, Extension
(Superseded to 08600200)

$

$

Not available

28

Gravely 124829

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 021506

Spring-Compression .072 x .561 x 2.50
(Superseded to 08329600)

$22.99

$

Usually ships in 4-12 days

0
