985092 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, Electric Start (SN: 000101 & Above) RANGE/DIFFERENTIAL LOCK CONTROL Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, Electric Start

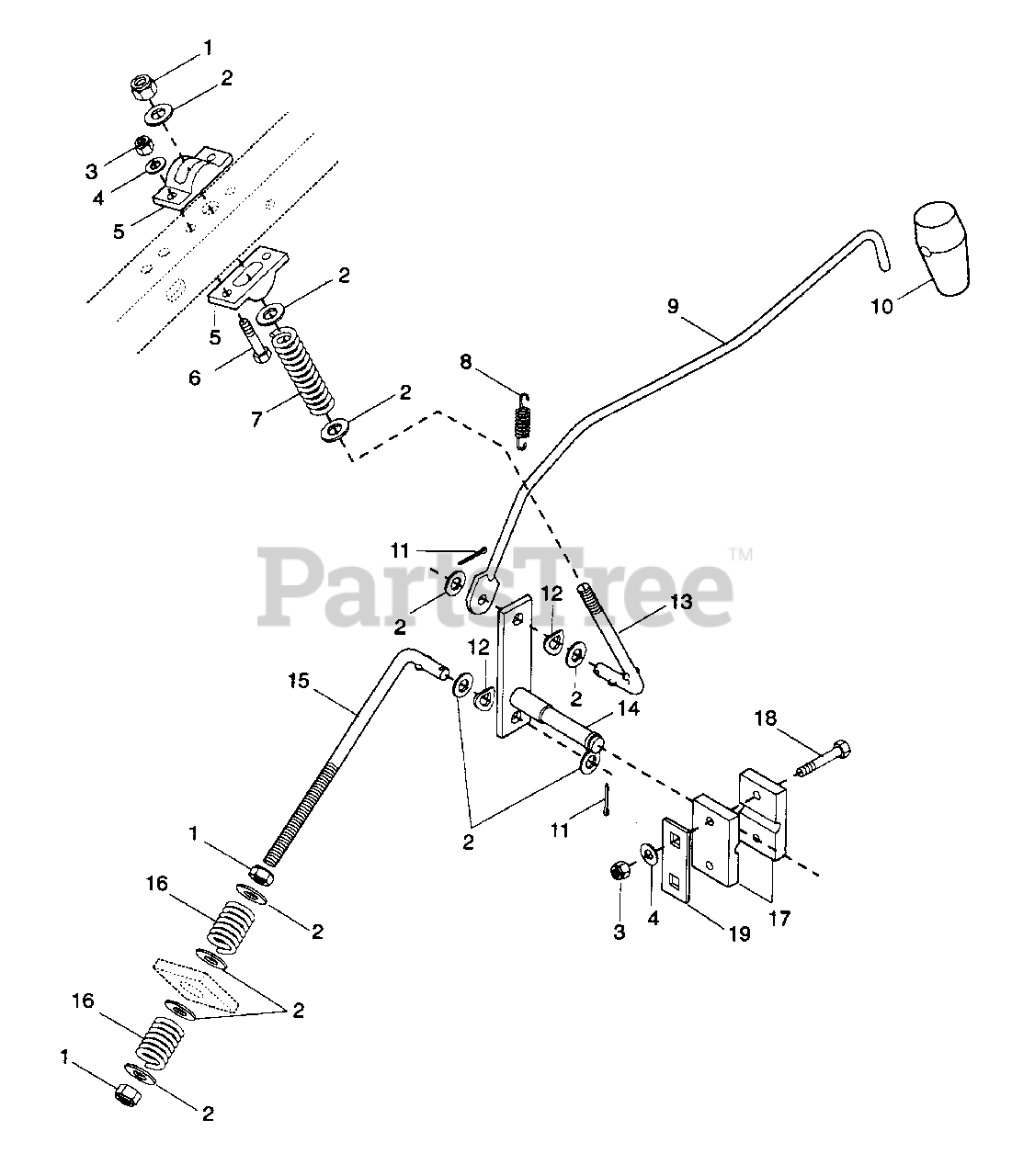

RANGE/DIFFERENTIAL LOCK CONTROL Parts Diagram

  • Title
1

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 050365

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 040637

CAM, SHIFTER
(Superseded to 07525400)

$

$

Not available

6

Gravely 180022

BLT-HEX .25-20 X 1.00 PL GR 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

7

Gravely 040599

SG-COMP .081 X .720 X 2.75 PL
(Superseded to 08335500)

$

$

Not available

8

Gravely 041042

SG-TENS .041 X 1.25 X .50 PL
(Superseded to 08336300)

$

$

Not available

9

Gravely 046798

ROD, SHIFTER
(Superseded to 08600500)

$

$

Not available

10

Gravely 010683

HNDL, RUBBER SHIFTER
(Superseded to 07537700)

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 177923

PIN-COTR .12 X .75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

12

Gravely 039078

SPRING WASHER
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

13

Gravely 040647

LINK, SHIFTER STOP
(Superseded to 08599500)

$

$

Not available

13

Gravely 046784

LINK, SHIFTER STOP
(Superseded to 08600400)

$

$

Not available

14

Gravely 040632

WLDMT, SHIFTER CRANK
(Superseded to 08543400)

$

$

Not available

15

Gravely 040648

LINK, SHIFTER
(Superseded to 08599600)

$

$

Not available

16

Gravely 011779

SG-COMP .125 X .78 X 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 032353

BLOCK, SHIFT LEVER
(Superseded to 08505000)

$21.99

$

Usually ships in 4-12 days

0

18

Gravely 180034

BLT-HEX .25-20 X 1.50 PL GR 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 021462

SHIM, MOWER HT. ADJ. BRT.
(Superseded to 08517400)

$

$

Not available
