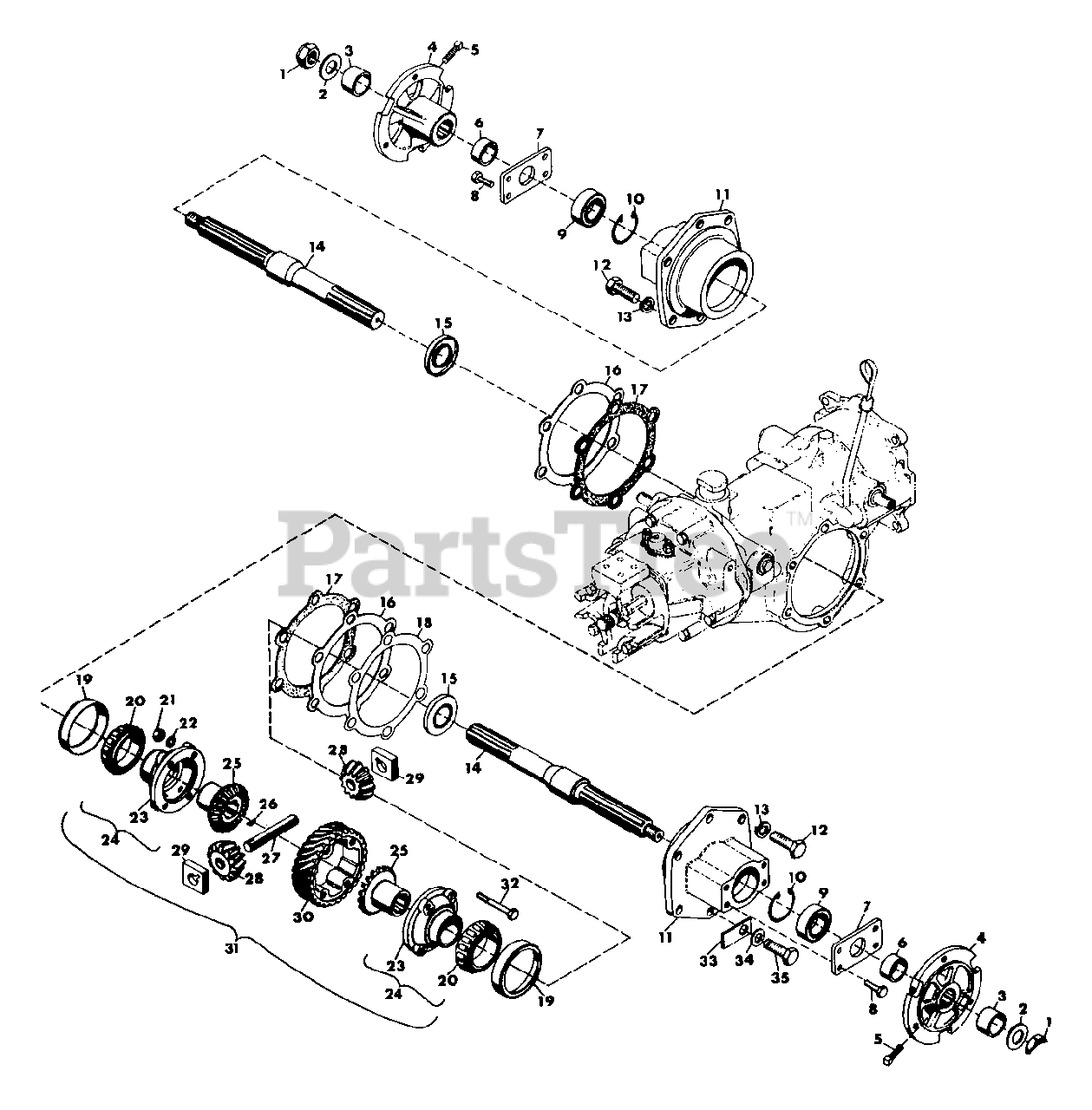

985069 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 6-Lead Electric Start (SN: 000101 & Above) Standard Differential - 2 Speed Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 6-Lead Electric Start

Standard Differential - 2 Speed Parts Diagram

  • Title

1

22502

Nut,Hex 3/4-10 Light Thin

$

$

Not available

2

Gravely 131017

Washer, Flat .812x1.469x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

3

22512

Spacer

$

$

Not available

4

22507

Hub, Wheel

$

$

Not available

5

Gravely 426913

Screw, Set 7/16-14x1.00 SQHCP
(Superseded to 21069400)

$

$

Not available

6

22501

Spacer

$

$

Not available

7

22503

Plate, End

$

$

Not available

8

Gravely 180120

Bolt, Hex 3/8-16X.750
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

9

32050

Bearing, Ball 1.00x2.000x.562

$

$

Not available

10

22497

Ring, Retaining 2.000 Bore

$

$

Not available

11

22495

Housing, Axle

$

$

Not available

12

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

13

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

14

22493

Axle, Straight

$

$

Not available

15

22506

Seal, Oil 1.188x2.00x.250

$

$

Not available

16

12595

Shim, Axle Housing .005

$

$

Not available

17

12597

Gasket, Axle Housing

$

$

Not available

18

12596

Shim, Axle Housing .020

$

$

Not available

19

12130

Cup, Roller Bearing

$

$

Not available

20

12131

Cone, Roller Bearing

$

$

Not available

21

Gravely 120368

Nut, Hex 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 138538

Washer, Lock 5/16 Int. Tooth
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

23

22504

Housing, Differential

$

$

Not available

24

22561

Assembly, Differential Housing

$

$

Not available

25

6709

Gear, Differential Bevel

$

$

Not available

26

Gravely 271089

Key, Woodruff .125x.375 Hard
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

27

12556

Pin, Spider Pinion

$

$

Not available

28

6708

Gear, Spider Bevel

$

$

Not available

29

22505

Block, Drive

$

$

Not available

30

13498

Gear, 6 Lead Worm

$

$

Not available

31

22554

Assembly, Diff. Std. 6 Lead

$

$

Not available

32

Gravely 181623

Bolt, Hex 5/16-24x2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

33

12594

Washer, Oil Drain

$

$

Not available

34

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

35

13624

Bolt, Hex 1/2-13x1 Nylon Insert

$

$

Not available
