985053 (5260) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Electric Start (SN: 000101 & Above) Gear Shift Control Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Electric Start

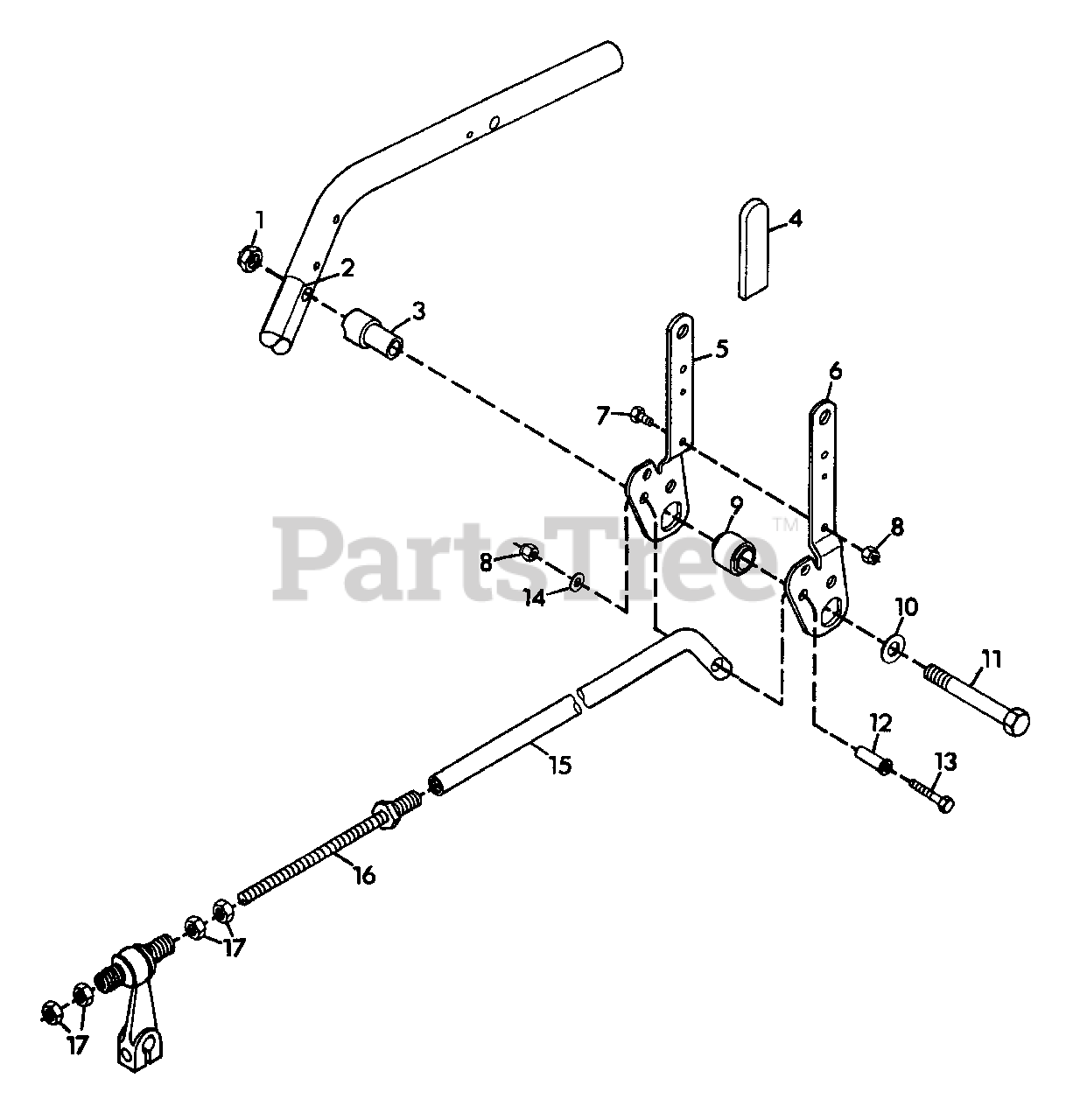

Gear Shift Control Parts Diagram

  • Title

1

Gravely 020541

Nut, Lock 1/2-13 E.T.
(Superseded to 06527200)

$

$

Not available

2

Gravely 021091

Decal, Gear Shift
(Superseded to 05201100)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 041614

Pivot, Hand Lever L.H.
(Superseded to 08546700)

$

$

Not available

4

Gravely 044139

Grip, Handle
(Superseded to 07529000)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 041616

Handle, Control R.H.
(Superseded to 08546900)

$

$

Not available

6

Gravely 041615

Handle, Control L.H.
(Superseded to 08546800)

$

$

Not available

7

Gravely 180018

Bolt, Hex 1/4-20 x .625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

8

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 041594

Bushing, Handle
(Superseded to 07526300)

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

Washer, Flat .531 x1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 180192

Bolt, Hex 1/2-13 x 3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

12

Gravely 041244

Bushing, Operator Presence Handle
(Superseded to 05521000)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 180034

Bolt, Hex 1/4-20 x 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120392

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 043364

Rod, Control Hi-Lo
(Superseded to 58501400)

$284.99

$

Usually ships in 4-12 days

0

16

Gravely 041809

Rod, Control Extension
(Superseded to 58501400)

$284.99

$

Usually ships in 4-12 days

0

17

Gravely 124829

Nut, Jam 3/8-16 Hex
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0
