985034 (5645) - Gravely Walk-Behind 2-Wheel Tractor, 12hp, Manual Start (SN: 000101 & Above) WHEEL ASSEMBLIES Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, Manual Start

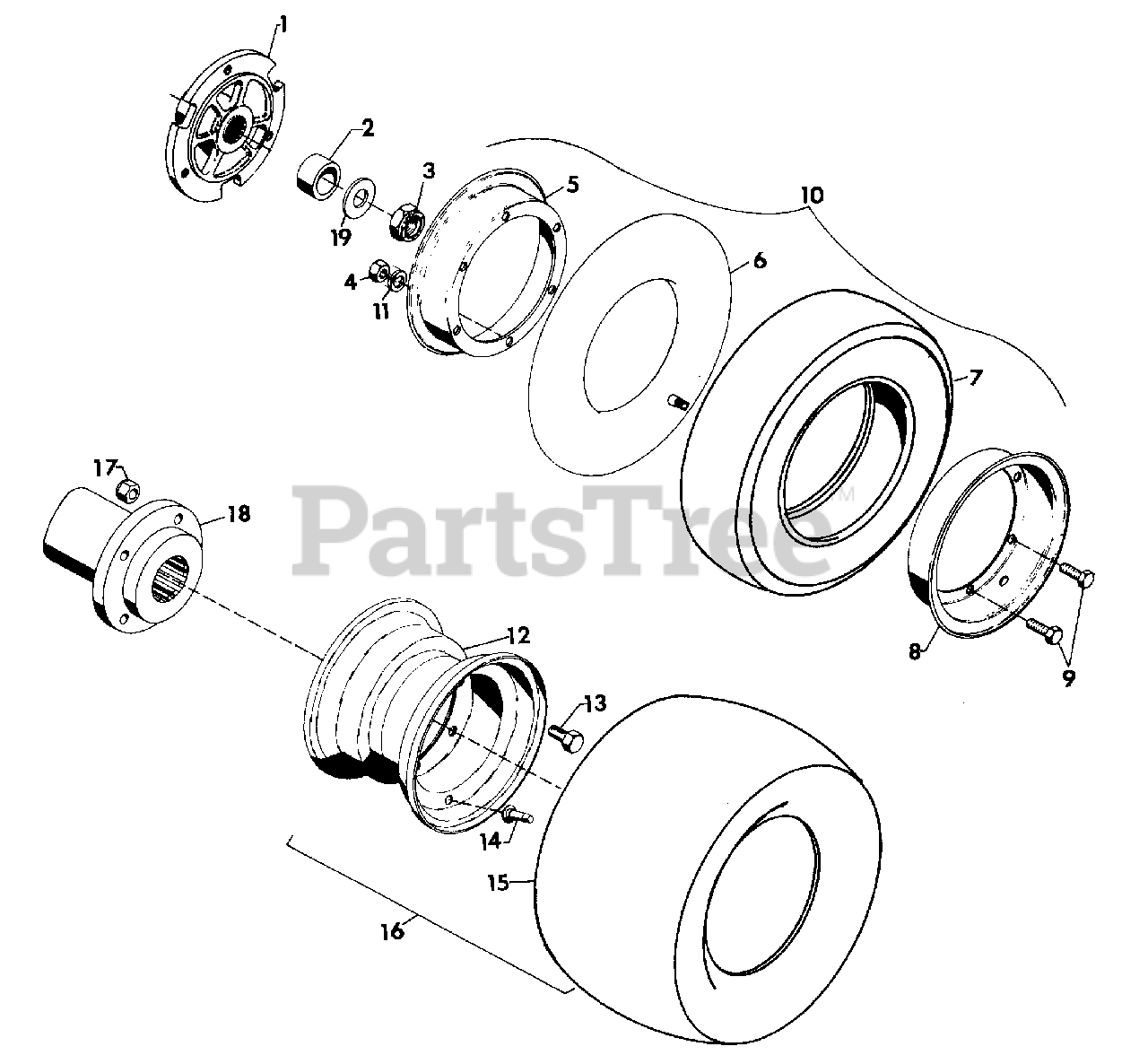

WHEEL ASSEMBLIES Parts Diagram

  • Title

1

Gravely 022507

HUB, WHEEL
(Superseded to 58501600)

$541.99

$

Usually ships in 4-12 days

0

2

Gravely 022512

SPACER
(Superseded to 08525200)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 022502

NUT, 3/4-10 LIGHT THIN HEX
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 124829

NUT, JAM; 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 012674

DISC, INNER, WHEEL
(Superseded to 07133000)

$58.99

$

In Stock, only 2 left!

0

6

Gravely 011645

TUBE
(Superseded to 20075300)

$

$

Not available

7

Gravely 013836

TIRE, TRACTOR; DIAMOND TREAD 4.80 X 4.00-8
(Superseded to 07132700)

$

$

Not available

Gravely 013835

TIRE, TRACTOR; GROUND GRIP 4.00-8
(Superseded to 20140100)

$

$

Not available

Gravely 018762

TIRE, SEMI-PNEUMATIC; 16 X 5W X 3
(Superseded to 07127100)

$387.99

$

Usually ships in 4-12 days

0

Gravely 019562

TIRE, 18 X 6.50-8
(Superseded to 21373000)

$

$

Not available

8

Gravely 012673

DISC, WHEEL
(Superseded to 07132900)

$68.99

$

In Stock, only 2 left!

0

9

Gravely 428638

BOLT, HEX; 3/8-16 X 5/8
(Superseded to 05940100)

$

$

Not available

Gravely 180120

BOLT, HEX; 3/8-16 X .750
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 010141

ASSEMBLY, SUPER GRIP WHEEL 4.00-8
(Superseded to 07132600)

$

$

Not available

Gravely 010142

ASSEMBLY, DIAMOND TREAD WHEEL 4.80 X 4.00-8
(Superseded to 07132700)

$

$

Not available

Gravely 019563

TIRE, WHEEL ASSEMBLY; 18 X 6.50-8
(Superseded to 07127300)

$

$

Not available

Gravely 021221

WHEEL, SEMI-PNEUMATIC ASSEMBLY 16 X 5W X 3
(Superseded to 07149800)

$

$

Not available

11

Gravely 120382

WASHER, LOCK; 3/8 SP
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 023267

RIM, 18 X 8.50-8
(Superseded to 07127800)

$

$

Not available

13

Gravely 180175

BOLT, HEX; 1/2-13 X 1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

15

Gravely 015222

TIRE 18 X 8.50-8
(Superseded to 07127000)

$

$

Not available

16

Gravely 023268

ASSEMBLY, WHEEL; 18 X 8.50 X 8
(Superseded to 07130200)

$170.99

$

Usually ships in 4-12 days

0

17

Gravely 435507

NUT, LOCK; 1/2-13 WASHER INSERT
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 022551

HUB, FOR 18 X 8.50 X 8 WHEEL ASM.
(Superseded to 08526400)

$391.99

$

Usually ships in 4-12 days

0

19

Gravely 131017

WASHER, FLAT; .812 X 1.469 X .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0
