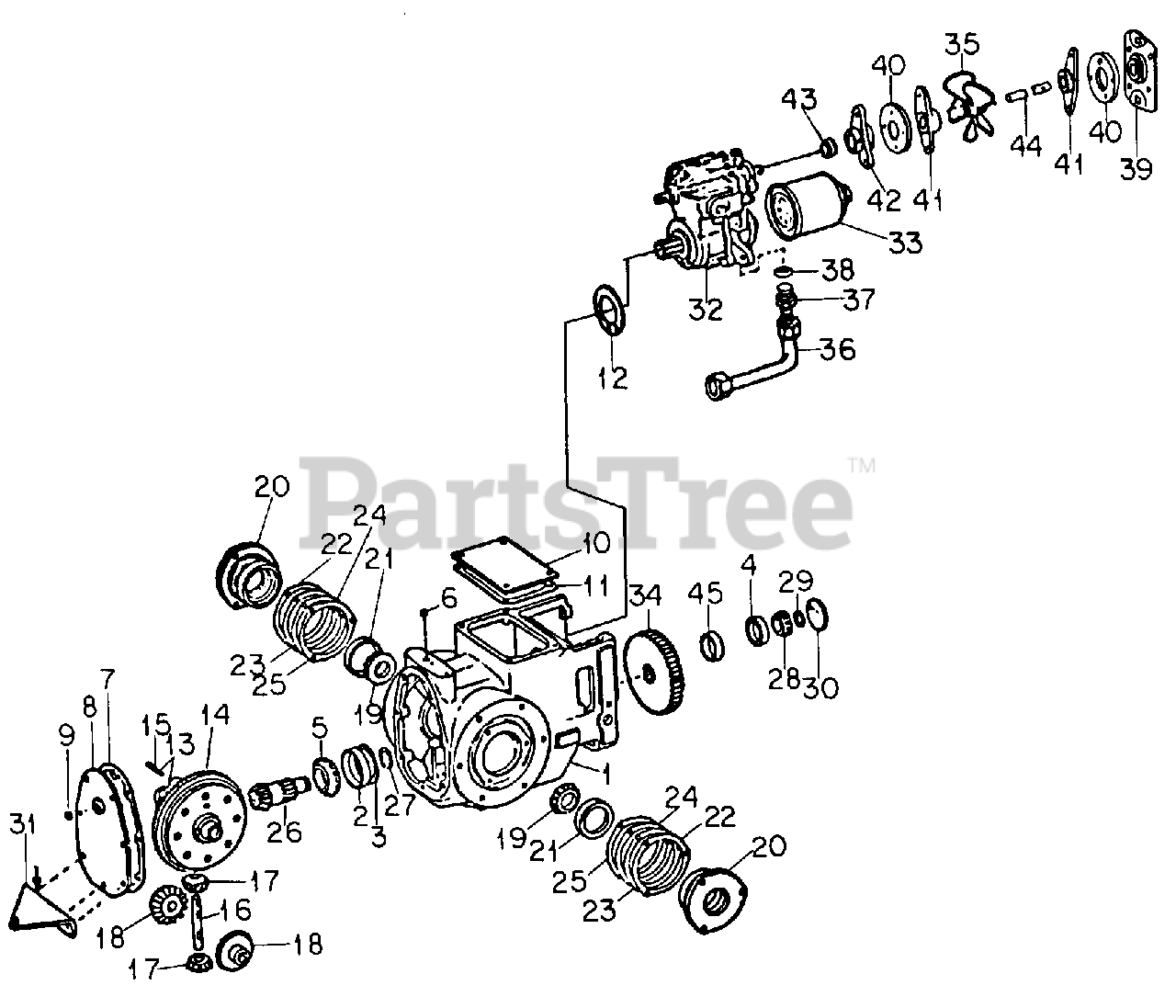

984 (142-984-399) - Cub Cadet Super Garden Tractor Transmission Case & Hydro Drive-SN 719999 Down Parts Diagram

Super Garden Tractor

Transmission Case & Hydro Drive-SN 719999 Down Parts Diagram

  • Title

1

Cub Cadet IH-135586-C91

Case Assy, Transmission

$

$

Currently unavailable

2

Cub Cadet 741-0370

Bearing, Bevel Pinion Shaft Rear Cup

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 717-3123

Shim, Rear Brg Cup, .004

$

$

Not available

Cub Cadet 717-3124

Shim, Rear Brg Cup, .015

$

$

Not available

Cub Cadet 717-3125

Shim, Rear Brg Cup, .007

$

$

Not available

4

Cub Cadet 741-0372

Bearing, Bevel Pinion Shaft Front Cup
(Superseded to 741-04548)

$8.99

$

In Stock, Qty 14

0

5

Cub Cadet 741-3071

Bearing, Bevel Pinion Shaft Rear Cone

$

$

Not available

6

Cub Cadet 727-3025

Plug, Breather

$

$

Currently unavailable

7

Cub Cadet IH-350837-R2

Gasket, Rear Cover Plate
(Superseded to IH-350837-R3)

$29.99

$

In Stock, Qty 7

0

8

Cub Cadet IH-394089-R11

Plate Assy, Rear Cover

$

$

Currently unavailable

Cub Cadet IH-24839-R1

Bolt, 3/8 X 5/8 Pln Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 737-0177

Plug, 1/2-14 Auto Sq Soc Hd Drain

$

$

Not available

10

Cub Cadet IH-144744-C2

Cover Assy, Trans. Case

$

$

Currently unavailable

Cub Cadet IH-144777-C2

Gage, Oil Level

$

$

Not available

11

Cub Cadet IH-394091-R1

Gasket, Top Cover

$

$

Not available

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Pln Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 721-3004

Gasket, Front
(Superseded to 921-3004)

$10.99

$

In Stock, only 3 left!

0

13

Cub Cadet IH-223472-C91

Case w/Drive Gear, Differential

Note: (Replaces IH-350785-R92)

$

$

Currently unavailable

14

Cub Cadet IH-350787-R1

Gear, Drive -46T

$

$

Not available

~NLA

Rivet, 5/16 X 1-1/8 Pln But Hd Sol

$

$

Not available

15

Cub Cadet IH-350788-R1

Pin, Pinion Shaft Lock

$

$

Not available

16

Cub Cadet IH-350789-R1

Shaft, Pinion

$

$

Currently unavailable

17

Cub Cadet 717-3113

Pinion, -10T

$

$

Not available

18

~NLA

Gear, Side

Note: (Tractors w/Serial No. 691601 and Below, and Serial No. 691604)

$

$

Not available

Cub Cadet 717-3112

Gear, Side

Note: (Tractors w/Serial No. 691602, 691603, 691605 and Above)

$

$

Not available

19

Cub Cadet 741-0369

Bearing, Cone

$

$

Not available

20

Cub Cadet IH-376158-R91

Cage Assy, Differential Brg

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Bolt, 3/8 X 1 Pln Type 5

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 Pln Lock

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet IH-ST974

Bearing, Cup

$

$

Not available

22

Cub Cadet 717-3097

Shim, Brg Retainer, .004

$

$

Not available

23

Cub Cadet 717-3098

Shim, Brg Retainer, .007

$

$

Not available

24

Cub Cadet 717-3099

Shim, Brg Retainer, .0149

$37.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 717-3100

Shim, Brg Retainer, .0299

$

$

Not available

26

Cub Cadet IH-394093-R1

Shaft, Bevel Pinion

$

$

Currently unavailable

27

Cub Cadet IH-323315-C1

Ring, Gear Ret

$

$

Not available

28

Cub Cadet 741-0373

Bearing, Bevel Pinion Shaft Frt Cone
(Superseded to 741-04549)

$19.99

$

In Stock, Qty 14

0

29

Cub Cadet 717-3127

Ring, Pinion Shaft Frt Brg Ret, .125

$

$

Not available

Cub Cadet 717-3128

Ring, Pinion Shaft Frt Brg Ret, .119
(Superseded to 917-3128)

$

$

Not available

Cub Cadet 717-3129

Ring, Pinion Shaft Frt Brg Ret, .113

$

$

Not available

Cub Cadet 717-3130

Ring, Pinion Shaft Frt Brg Ret, .107

$

$

Not available

Cub Cadet IH-395099-R1

Ring, Pinion Shaft Frt Brg Ret, .101

$

$

Currently unavailable

Cub Cadet 717-3132

Ring, Pinion Shaft Frt Brg Ret, .195

$

$

Not available

30

Cub Cadet 726-0216

Plug, 2-1/8 Expansion

$

$

Not available

31

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available

Cub Cadet 710-3001

Bolt, 3/8 X 7/8 Pln Type 5

$7.49

$

In Stock, Qty 9

0

32

Cub Cadet 717-3034

Transmission Assy, Hydrostatic Drive

Note: (For Components, See List of Parts Under Details of Hydrostatic Transmissio

$

$

Currently unavailable

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Pln Type 5

$3.99

$

In Stock, Qty 11

0

33

Cub Cadet 723-3014

Filter
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

34

Cub Cadet 717-3126

Gear, Constant Mesh -68T

$

$

Not available

35

Cub Cadet 731-3013

Fan, Cooling
(Superseded to 931-3013)

$

$

Not available

Cub Cadet IH-159962

Screw, No. 10 X 1-1/4 Znp P/HDCR Mach

$

$

Currently unavailable

Cub Cadet 736-0931

Washer, .219 X .500 X .036

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0998

Nut, No. 10 Cad P/T Lock Type 5

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 727-3008

Tube Assy, Transmission
(Superseded to 927-3008)

$66.99

$

In Stock, only 2 left!

0

Cub Cadet IH-56446-D

Nut, 7/8-18 Hi-Duty Tube
(Superseded to 912-3028)

$45.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 727-3009

Connector, 37 Deg Hyd Flared Swivel

$

$

Not available

38

Cub Cadet 721-3005

O-Ring, 5/8 OD Tube
(Superseded to 921-3005)

$

$

Not available

39

Cub Cadet 703-0231

Flange, Drive Shaft

$

$

Not available

Cub Cadet 710-3041

Bolt, 5/16 X 1/2 Phc Type 8

$

$

Currently unavailable

Cub Cadet 710-3034

Bolt, 3/8 X 1-1/4 Crg Type 5

$3.99

$

In Stock, Qty 5

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

Cub Cadet 712-3000

Nut, 3/8 Cad P/T Lock Type 5

$4.49

$

In Stock, Qty 9

0

40

Cub Cadet 722-3000

Disc, Flexible Coupling

$28.99

$

In Stock, only 2 left!

0

41

Cub Cadet 748-3003

Arm, Coupling

$

$

Not available

Cub Cadet 710-3037

Bolt, 3/8 X 1-3/4 Type 5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0520

Bolt, 3/8 X 1-1/2 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 715-3005

Pin, 3/8 X 1-3/4 Hvy Pln Cld Spr
(Superseded to 915-0125)

$12.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 719-3016

Coupling, Drive Shaft

$

$

Not available

Cub Cadet 715-3004

Pin, 1/8 X 1-1/4 Hvy Pln Cld Spr

$

$

Not available

43

Cub Cadet 741-3004

Bushing, Self-Aligning Ball
(Superseded to 941-3004)

$51.99

$

In Stock, Qty 7

0

44

Cub Cadet 738-3015

Shaft, Drive

$

$

Not available

45

Cub Cadet IH-530647-R1

Spacer, Pinion Shaft Gear

$

$

Currently unavailable
