9828-0 - Troy-Bilt 6,000 Watt Portable Generator Control Panel Parts Diagram

6,000 Watt Portable Generator

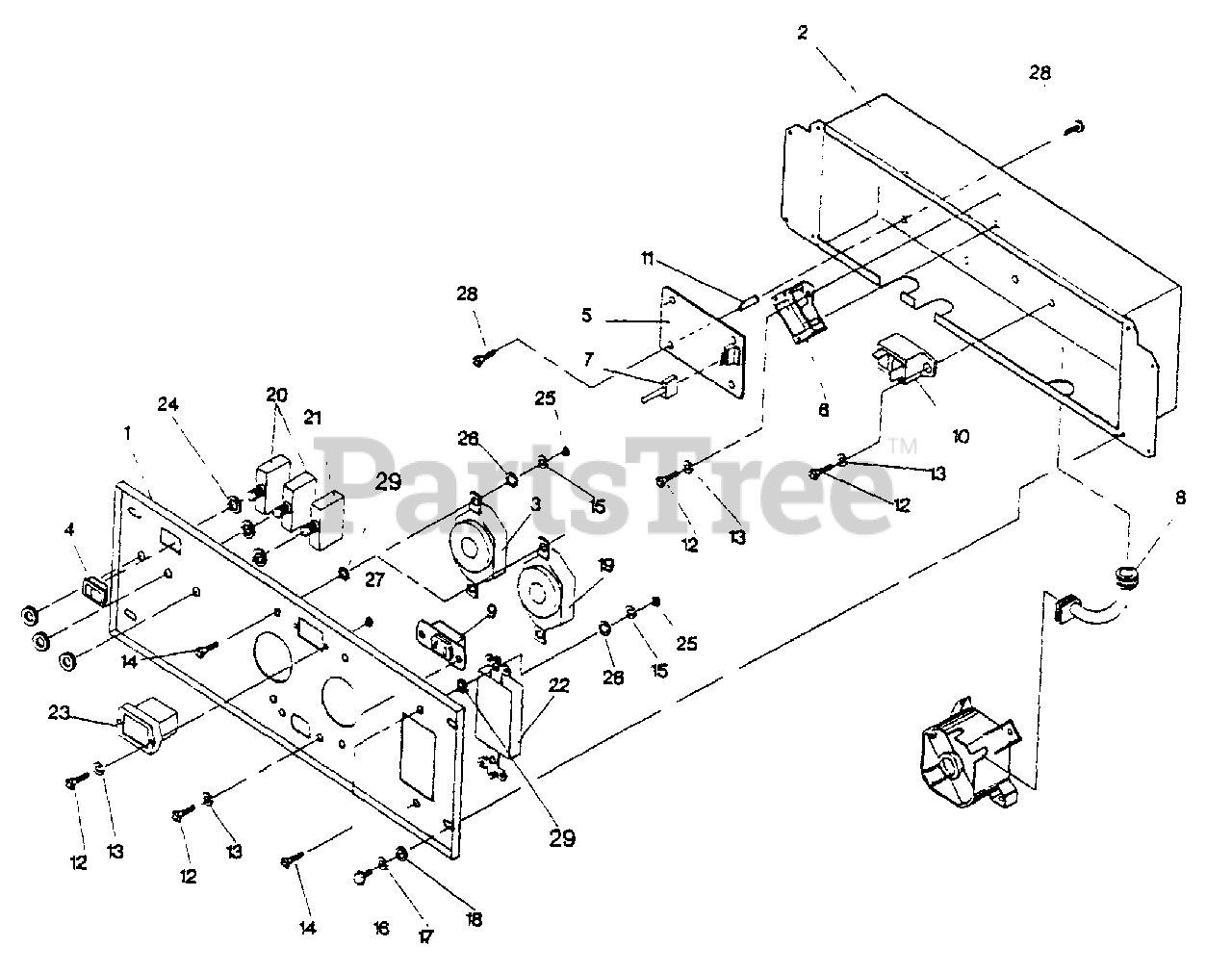

Control Panel Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Briggs & Stratton 1903255

Box, Control panel

$

$

Currently unavailable

3

Briggs & Stratton 1903256

Outlet, 120/240 Volts 30A AC

$

$

Currently unavailable

4

Briggs & Stratton 1903228

Switch, idle Control

$

$

Currently unavailable

5

Briggs & Stratton 1903229

Board, system Control

$

$

Currently unavailable

6

Briggs & Stratton 1903230

Transformer, idle control

$

$

Currently unavailable

7

Briggs & Stratton 1903231

Assembly, Wire Harness

$

$

Currently unavailable

8

Briggs & Stratton 1903232

Rubber grommet connector

$

$

Currently unavailable

9

Briggs & Stratton 1903233

Outlet & bracket,12V. DC

$

$

Currently unavailable

10

Briggs & Stratton 1903234

Circuit breaker, 12V. DC, 10A, auto. reset

$

$

Currently unavailable

11

Briggs & Stratton 1903235

Standoff, hex, 3/4

$

$

Currently unavailable

12

Briggs & Stratton 1903236

Screw, pan head, M3-0.5 x 10mm

$

$

Currently unavailable

13

Briggs & Stratton 1903237

Lockwasher, M3

$

$

Currently unavailable

14

Briggs & Stratton 1903238

Screw, pan head, M4-0.7 x 10mm

$

$

Currently unavailable

15

Briggs & Stratton 1903239

Lockwasher, M4

$

$

Currently unavailable

16

Briggs & Stratton 1903240

Screw, pan head, M5-0.8 x 12mm

$

$

Currently unavailable

17

Briggs & Stratton 1903241

Lockwasher, M5

$

$

Currently unavailable

18

Briggs & Stratton 1903242

Flat washer, M5

$

$

Currently unavailable

19

Briggs & Stratton 1903243

Outlet, 120V, 30A, AC

$

$

Currently unavailable

20

Briggs & Stratton 1903244

Circuit breaker, 30A

$

$

Currently unavailable

21

Briggs & Stratton 1903245

Circuit breaker, 20A

$

$

Currently unavailable

22

Briggs & Stratton 1903246

Outlet, duplex, GFCI, 120V, 20A, AC

$

$

Currently unavailable

$

$

Currently unavailable

24

Briggs & Stratton 1903248

Lockwasher, internal

$

$

Currently unavailable

25

Briggs & Stratton 1903249

Nut, hex hd., M4-0.7

$

$

Currently unavailable

26

Briggs & Stratton 1903250

Flat washer, M4

$

$

Currently unavailable

27

Briggs & Stratton 1903251

Nut, hex hd., M3-0.5

$

$

Currently unavailable

28

Briggs & Stratton 1903252

Screw, self tapping, #6-32 x 3/8

$

$

Currently unavailable

29

Briggs & Stratton 1903253

Washer, shakeproof, #8

$

$

Currently unavailable
