982 (2050604U) - Cub Cadet Super Garden Tractor Crankshaft & Flywheel Parts Diagram

Super Garden Tractor

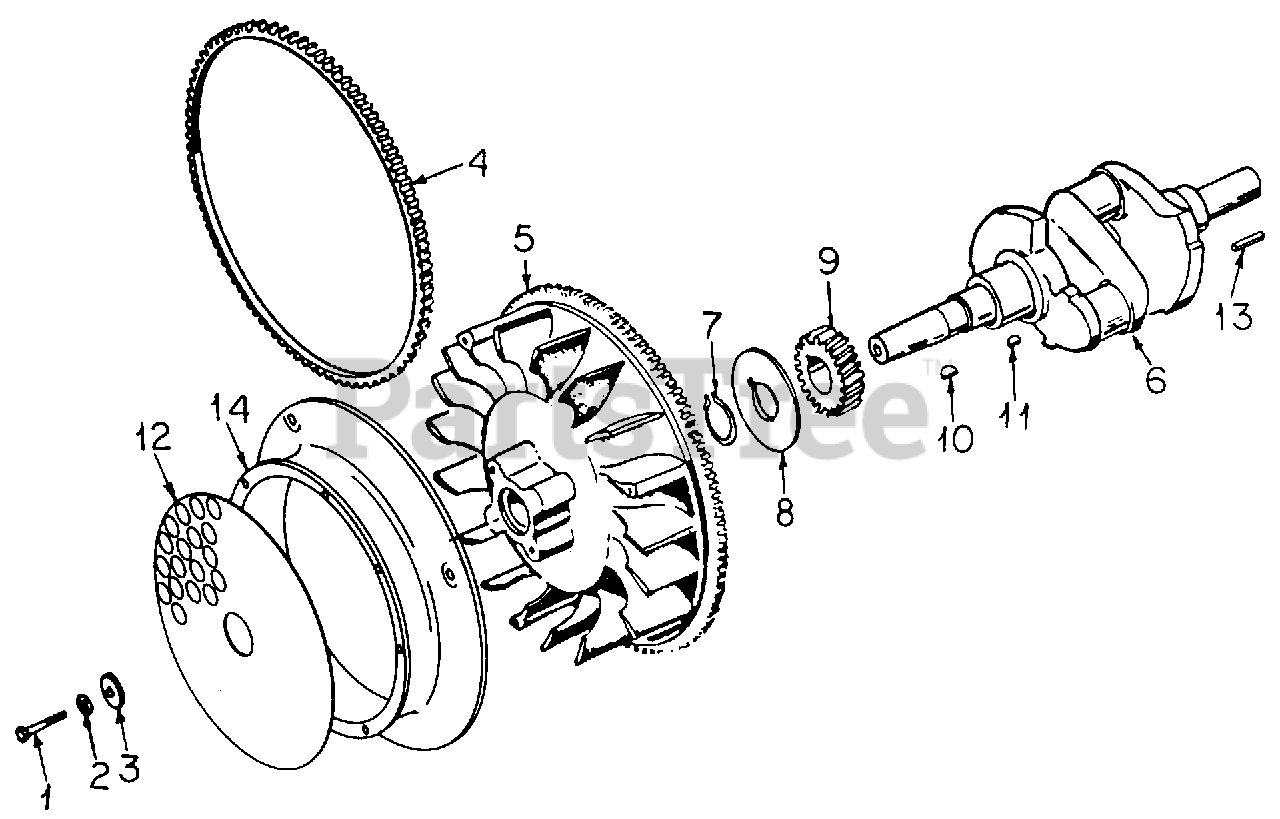

Crankshaft & Flywheel Parts Diagram

  • Title

1

Cub Cadet ME-104-0170

Bolt

$

$

Not available

2

Cub Cadet 736-0171

Washer, 7/16 Lock

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet ME-526-0017

Washer

$

$

Not available

4

Cub Cadet ME-104-0779

Gear, Ring

$

$

Not available

5

Cub Cadet ME-134-4641

Flywheel Assy

Note: (Includes Ref No. 4)

$

$

Currently unavailable

6

Cub Cadet ME-104-1360

Crankshaft

$

$

Not available

7

Cub Cadet ME-518-0014

Ring, Gear Retaining

$

$

Not available

8

Cub Cadet ME-104-0043

Washer, Gear Retaining

$

$

Not available

9

Cub Cadet ME-104-0032

Gear, Crankshaft

$

$

Not available

10

Cub Cadet ME-515-0263

Key, Flywheel

$

$

Not available

11

Cub Cadet ME-515-0001

Key, Crankshaft Gear

$

$

Currently unavailable

12

Cub Cadet ME-134-3870

Guard, Flywheel

$

$

Not available

Screw, No. 10 X 1/2 Znp H/Hd L/W Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Bolt, 5/16 X 1/2 Phc P/T Type 8

Note: (Common Hardware, Purchase Locally)

$

$

Not available

13

Cub Cadet ME-515-0103

Key, Crankshaft Stub

$

$

Currently unavailable

14

Cub Cadet ME-134-3847

Venturi, Blower Wheel

$

$

Currently unavailable

Cub Cadet 710-3013

Bolt, 1/4 X 1/2 Type 5

$4.99

$

In Stock, only 1 left!

0
