982 (2050595U) - Cub Cadet Super Garden Tractor Rear Axle Carrier-SN 719999 & Below Parts Diagram

Super Garden Tractor

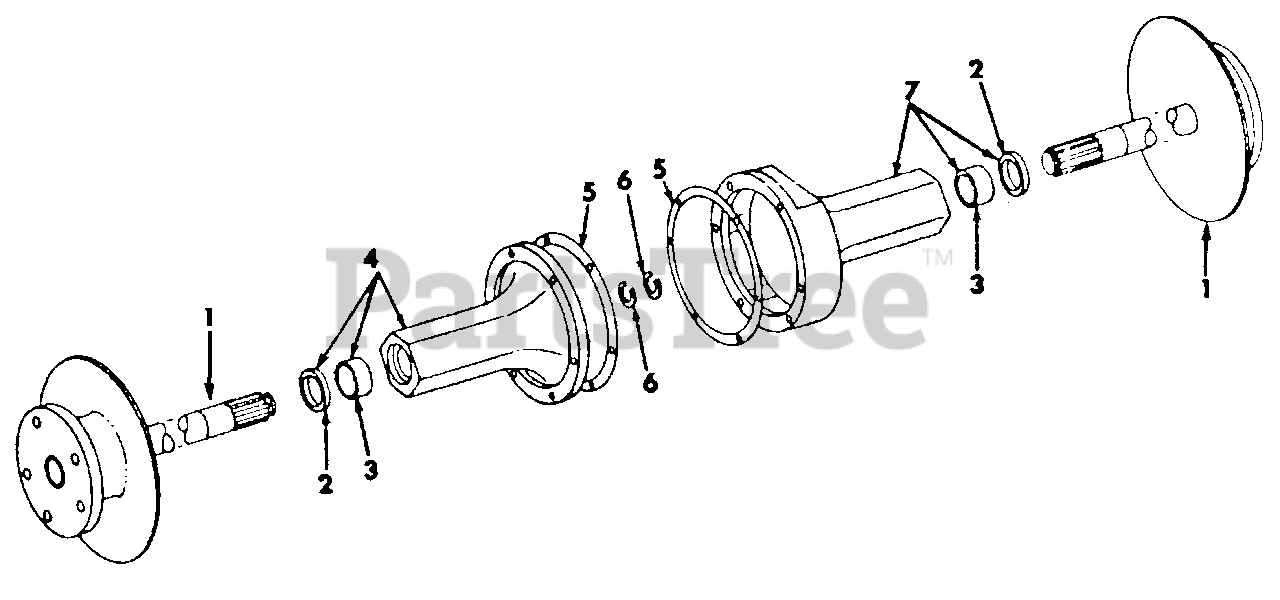

Rear Axle Carrier-SN 719999 & Below Parts Diagram

  • Title

1

Cub Cadet IH-531180-R2

Axle Assy, Rear

Note: (Tractors w/Serial No. 691601 and Below, and Serial No. 691604)

$

$

Not available

Cub Cadet IH-223474-C1

Axle Assy, Rear

Note: (Tractors w/Serial No. 691602, 691603, 691605 and Above)

$

$

Currently unavailable

2

Cub Cadet 721-0187

Seal, Oil
(Superseded to 921-0187)

$

$

Not available

3

Cub Cadet 741-0363

Bearing, Needle
(Superseded to 941-0363)

$25.99

$

In Stock, Qty 10

0

4

Cub Cadet IH-397322-R11

Carrier Assy, Rear Axle, LH

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Bolt, 3/8 X 1 Pln Type 5

$

$

Not available

Cub Cadet 710-3036

Bolt, 3/8 X 1-1/4 Phc P/T Type 8

$

$

Not available

5

Cub Cadet 721-3014

Gasket, Carrier
(Superseded to 721P3014)

$13.99

$

In Stock, Qty 12

0

6

Cub Cadet IH-378066-R1

Ring, Retaining

Note: (Use w/Axle IH-531180-R2)

$

$

Not available

Cub Cadet 716-0136

Ring, Retaining

Note: (Use w/Axle IH-223447-C1)

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-0906

Carrier Assy, Rear Axle, RH

$

$

Not available

Cub Cadet 710-3011

Bolt, 3/8 X 2-1/4 Pln Type 5

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3035

Bolt, 3/8 X 2-1/2 Phc P/T Type 8

$

$

Currently unavailable
