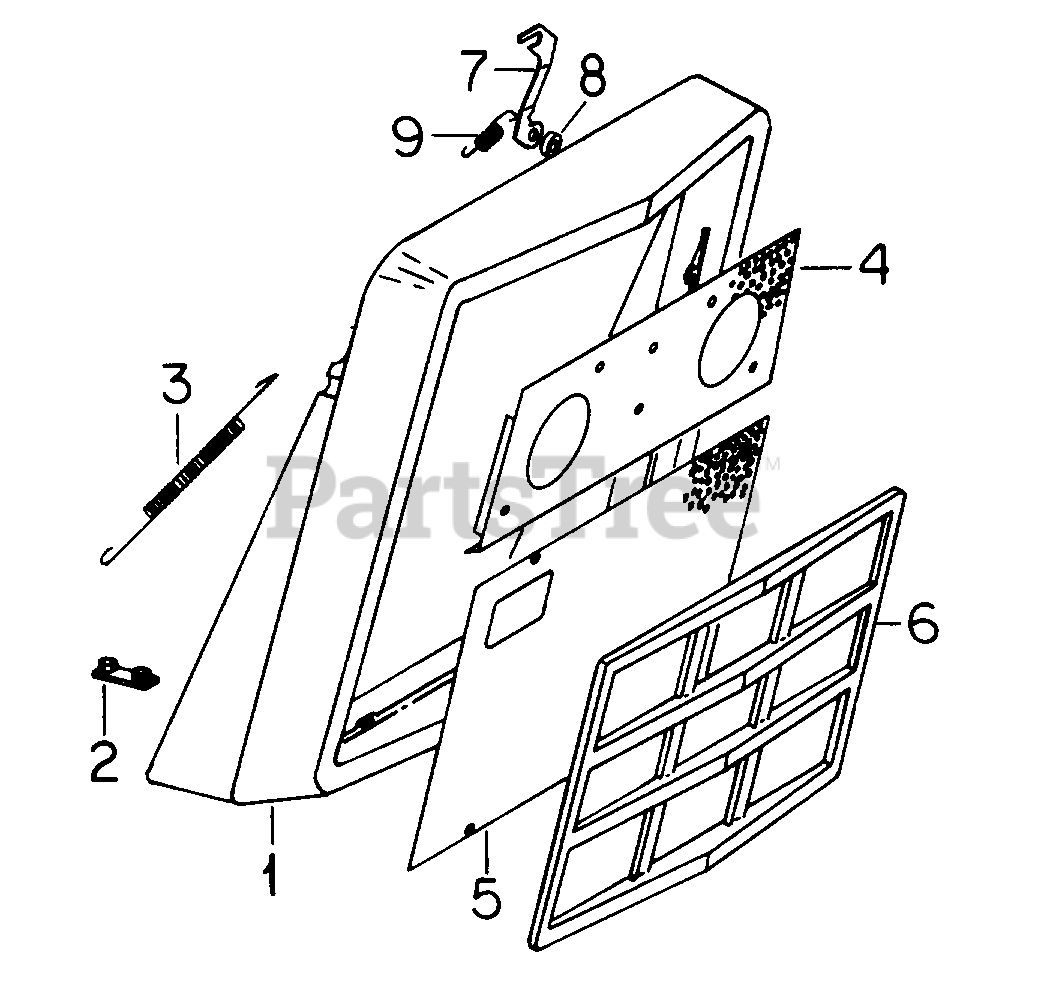

982 (2050595U) - Cub Cadet Super Garden Tractor Grille Parts Diagram

Super Garden Tractor

Grille Parts Diagram

  • Title

1

Cub Cadet 719-3002

Housing, Grille

$

$

Currently unavailable

2

Cub Cadet 703-0008

Retainer Assy, Grille Housing

$

$

Not available

Cub Cadet 710-0376

Bolt, 5/16 X 1 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-104354-C1

Spring

Note: (For Tractors w/Serial No. 665000 and Below)

$

$

Not available

3

Cub Cadet 732-3001

Spring
(Superseded to 932-3001)

Note: (For Tractors w/Serial No. 665001 and Above)

$16.99

$

In Stock, Qty 5

0

4

Cub Cadet 703-0165

Screen, Upper Grille

Variations

Cub Cadet 703-0165-0637

SCREEN, GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

5

Note: Not used in this application

$

$

Not available

6

Cub Cadet 719-3003

Grille

$

$

Currently unavailable

Cub Cadet 710-3090

Screw, No. 8 X 3/8 H/Whd Tap

Note: (For Tractors w/Serial No. 665000 and Below)

$

$

Not available

7

Cub Cadet 703-0010

Latch, Hood

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3004

Screw, 5/16 X 3/4 H/Hd Tap
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 750-3000

Spacer, Hood Latch

$

$

Not available

9

Cub Cadet 732-3002

Spring
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0
