982 (143-982-399) - Cub Cadet Super Garden Tractor Steering Gear II Parts Diagram

Super Garden Tractor

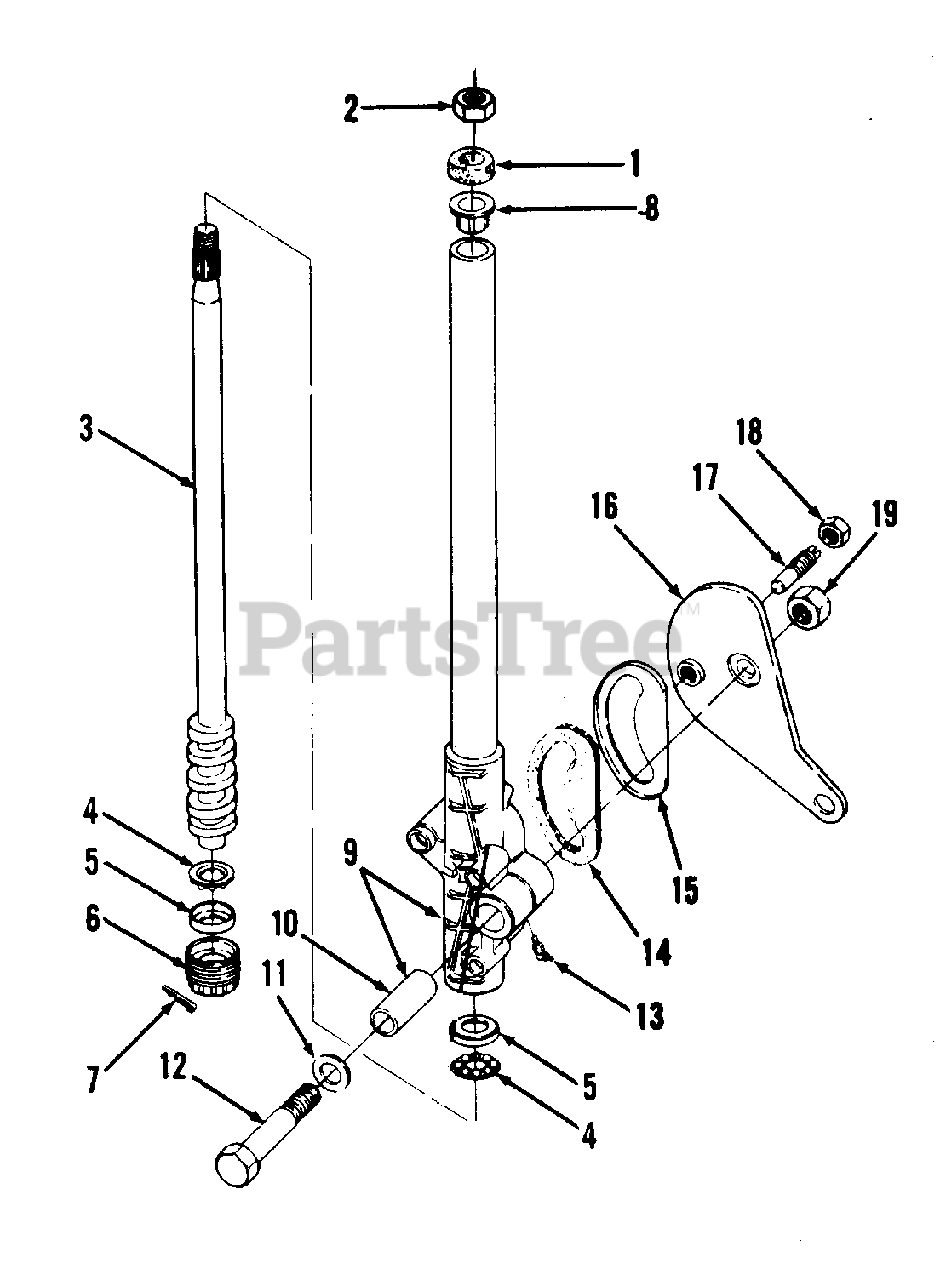

Steering Gear II Parts Diagram

  • Title

Cub Cadet 703-0230

Gear Assy, Steering

$

$

Not available

1

Cub Cadet 723-3040

Seal, Column

$

$

Not available

2

Cub Cadet 712-3056

Nut, Hex Jam, 5/8-18

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet 703-1088

Shaft/Cam Assy

$

$

Not available

4

Cub Cadet 741-3021

Retainer Assy, Ball
(Superseded to 941-3021)

$37.99

$

In Stock, Qty 13

0

5

Cub Cadet 703-1029

Cup, Bearing
(Superseded to 903-1029)

$

$

Not available

6

Cub Cadet 719-3053

Plug, Adjusting
(Superseded to 919-3053)

$

$

Not available

7

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 14

0

8

Cub Cadet 741-3023

Bearing, Column
(Superseded to 941-3023)

$8.49

$

In Stock, Qty 15

0

9

Cub Cadet 703-1028

Housing/Tube Assy

Note: (Indludes Ref No. 10)

$

$

Currently unavailable

10

Cub Cadet 748-3008

Bushing

$

$

Not available

11

Cub Cadet 736-0287

Washer, Flat, .791 X 1.24 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 711-3208

Shaft, Pivot

$

$

Not available

13

Cub Cadet 737-3001

Fitting, Lube, 3/16 Drive Type

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 723-3039

Seal, Grease
(Superseded to 923-3039)

$8.99

$

In Stock, Qty 20+

0

15

Cub Cadet 703-1031

Retainer, Seal

$

$

Not available

16

Cub Cadet 703-1089

Arm, Steering

$

$

Currently unavailable

17

Cub Cadet 711-3149A

Follower, Cam
(Superseded to 911-3149A)

$45.99

$

In Stock, only 2 left!

0

18

Cub Cadet 712-3062

Nut, Hex Jam, 9/16-18

$

$

Not available

19

Cub Cadet 712-3063

Nut, Hex Crown Loc, 5/8-18

$8.49

$

Usually ships in 3-6 days

0
