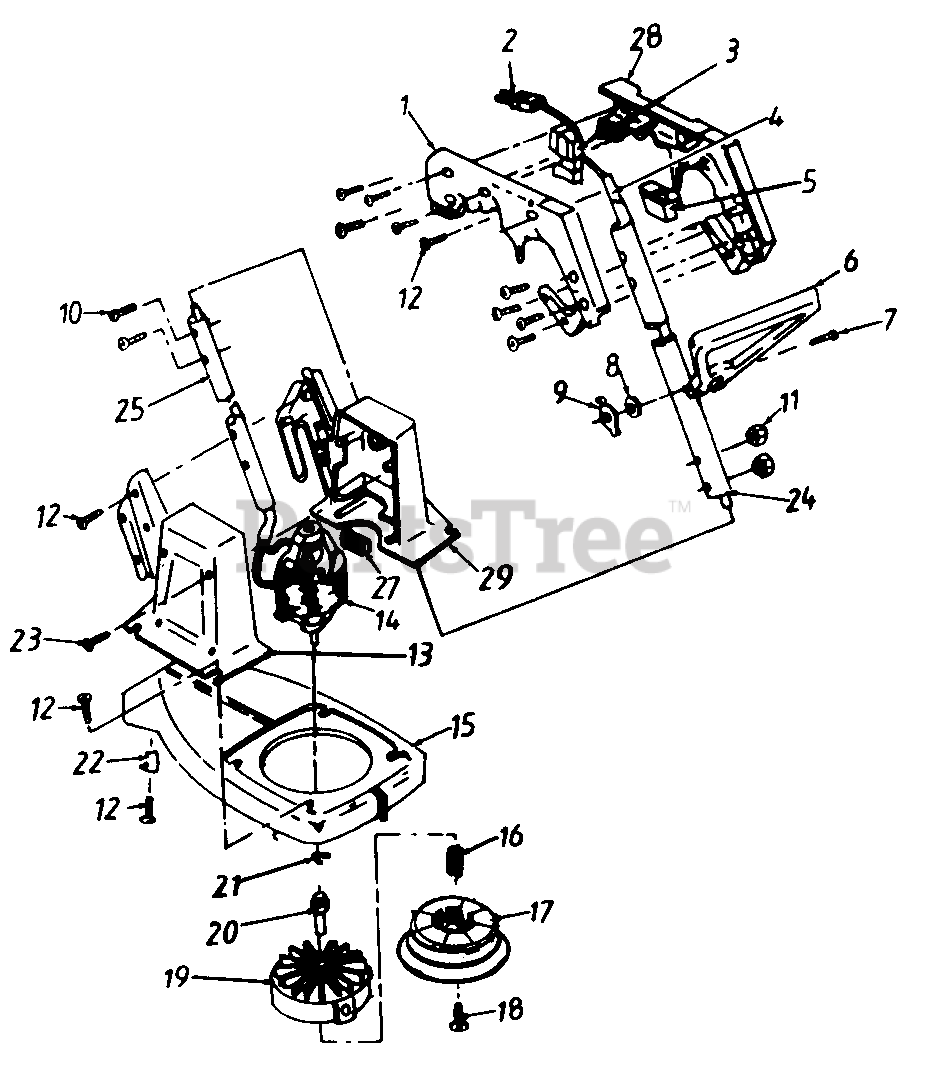

98029 (251-131-062) - Task Force Edger (1991) Parts Parts Diagram

Edger

Parts Parts Diagram

  • Title

1

MTD 725-1580

Handle-Trigger R.H.

$

$

Currently unavailable

2

MTD 729-0309

Cord Set (2 Prong)

$

$

Not available

3

MTD 725-1455

Switch-Trigger

$

$

Not available

4

MTD 629-0013

Wiring Harness

$

$

Currently unavailable

5

MTD 725-1455

Switch-2 Speed

$

$

Not available

6

MTD 749-0834

Balance Handle

Note: (Incl. Ref. 7, 8, 9)

$

$

Not available

7

MTD 710-0501

Hex Bolt 1/4-20 x 2.25" Lg.

$7.49

$

Usually ships in 3-6 days

0

8

MTD 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0403

Wing Nut 1/4-20 Thd.

$

$

Currently unavailable

10

MTD 710-1156

Scr. #10-24 x 1.25"

Note: (Spec.)

$

$

Not available

11

MTD 712-0161

L-Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1153

Scr. #8 x 5/8" Lg.

Note: (Spec.)

$

$

Not available

13

MTD 724-0176

Housing Motor R.H.

$

$

Currently unavailable

14

MTD 624-0002

Motor

$

$

Currently unavailable

15

MTD 731-1229

Guard

$

$

Not available

16

MTD 732-0684

Spring

$

$

Not available

17

MTD 706-RC528

Cartridge

Note: (w/Line)

$

$

Not available

18

MTD 710-1158

Nylon Scr. 1/4-20 x 5/8" Lg.

$

$

Currently unavailable

19

MTD 743-0105

Spool Hsg. Ass'y.

Note: (Incl. Ref. 20)

$

$

Currently unavailable

20

MTD 711-0856

Spool Shaft

$

$

Not available

21

MTD 716-0229

Retaining Ring

$

$

Currently unavailable

22

MTD 706-RB501

Blade

Note: (2 Blades w/Screw)

$

$

Currently unavailable

23

MTD 710-1157

Scr. #8 x 1.75" Lg.

Note: (Spec.)

$

$

Not available

24

MTD 750-0829

Upper Handle Tube

$

$

Currently unavailable

25

MTD 750-0833

Lower Handle Tube

$

$

Currently unavailable

27

MTD 724-0177

Insulator

$

$

Currently unavailable

28

MTD 725-1579

Handle-Trigger

Note: (L.H.)

$

$

Not available

29

MTD 724-0175

Housing Motor

Note: (L.H.)

$

$

Currently unavailable
