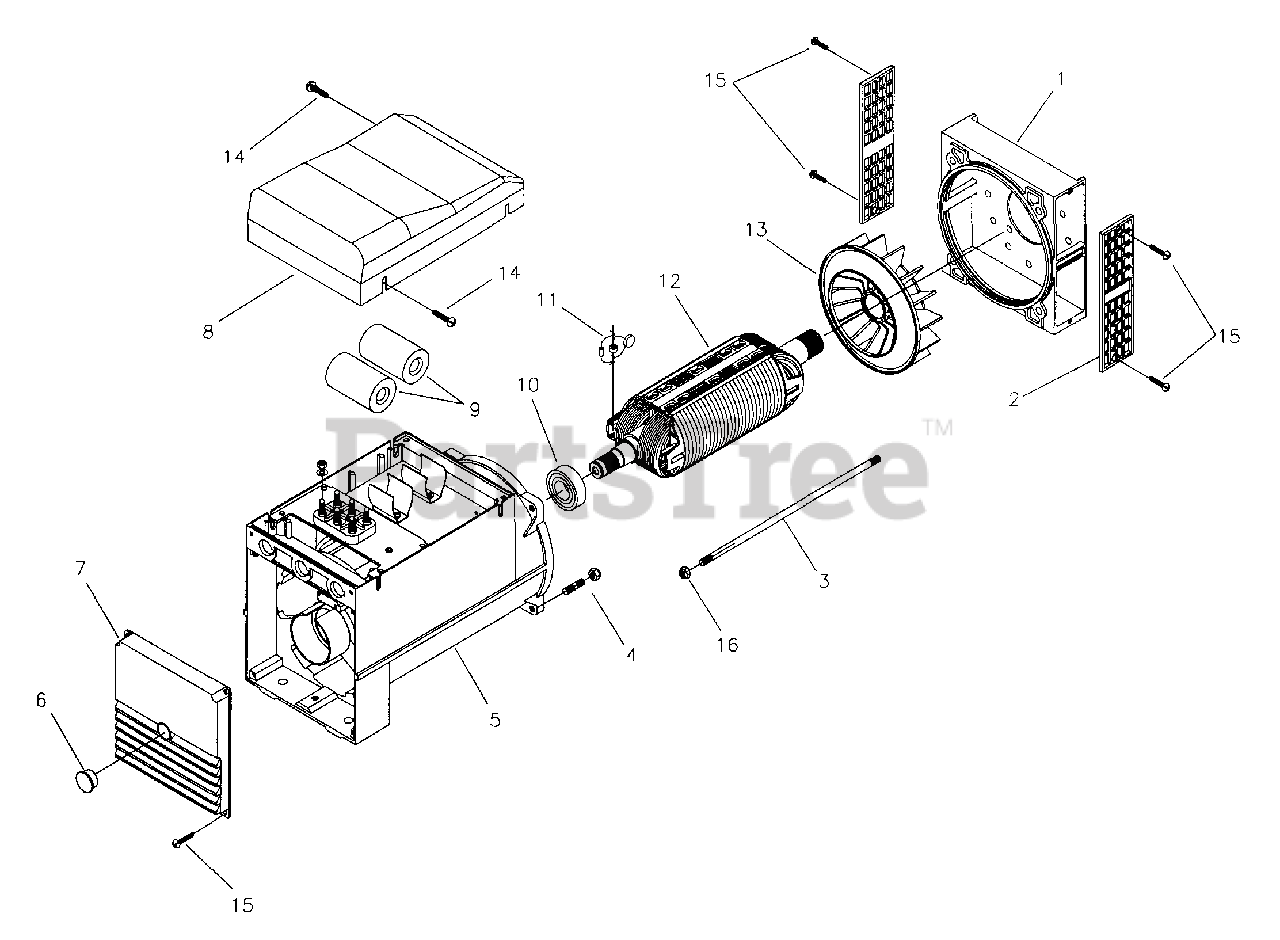

9801-5 - Generac EXL 10,000 Watt Portable Generator Alternator Parts Diagram

EXL 10,000 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton B4906

SHIELD, Front
(Superseded to B4906GS)

$126.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B4907

GRID, Front
(Superseded to B4907GS)

$18.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4908

BOLT, Shaft Stay
(Superseded to B4908GS)

$28.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B4909

STAY BOLT, M8 x 30
(Superseded to B4909GS)

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4910

ASSEMBLY, Housing
(Superseded to B4910GS)

$1203.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B4911

CAP
(Superseded to B4911GS)

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4912

COVER, Blind End
(Superseded to B4912GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4913

COVER, Top Black
(Superseded to B4913GS)

$99.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4914

CAPACITOR, 25mF 450V
(Superseded to 311560GS)

$

$

Not available

10

Briggs & Stratton B4915

BEARING, 62052RS C3
(Superseded to B4915GS)

$42.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4916

CAPACITOR, Diode + Varistor + EMC
(Superseded to B4916GS)

$

$

Not available

12

Briggs & Stratton B4917

ROTOR
(Superseded to B4917GS)

Note: (Includes Item 13)

$1062.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B4918

FAN
(Superseded to B4918GS)

$18.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B4919

SCREW, M6 - 1.0 x 10mm
(Superseded to B4919GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4920

SCREW, M5 - 0.8 x 10mm
(Superseded to B4920GS)

$1.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 49820

LOCK NUT, M8 - 1.25

$

$

Not available
