9801-4 - Generac EXL 10,000 Watt Portable Generator Control Panel Parts Diagram

EXL 10,000 Watt Portable Generator

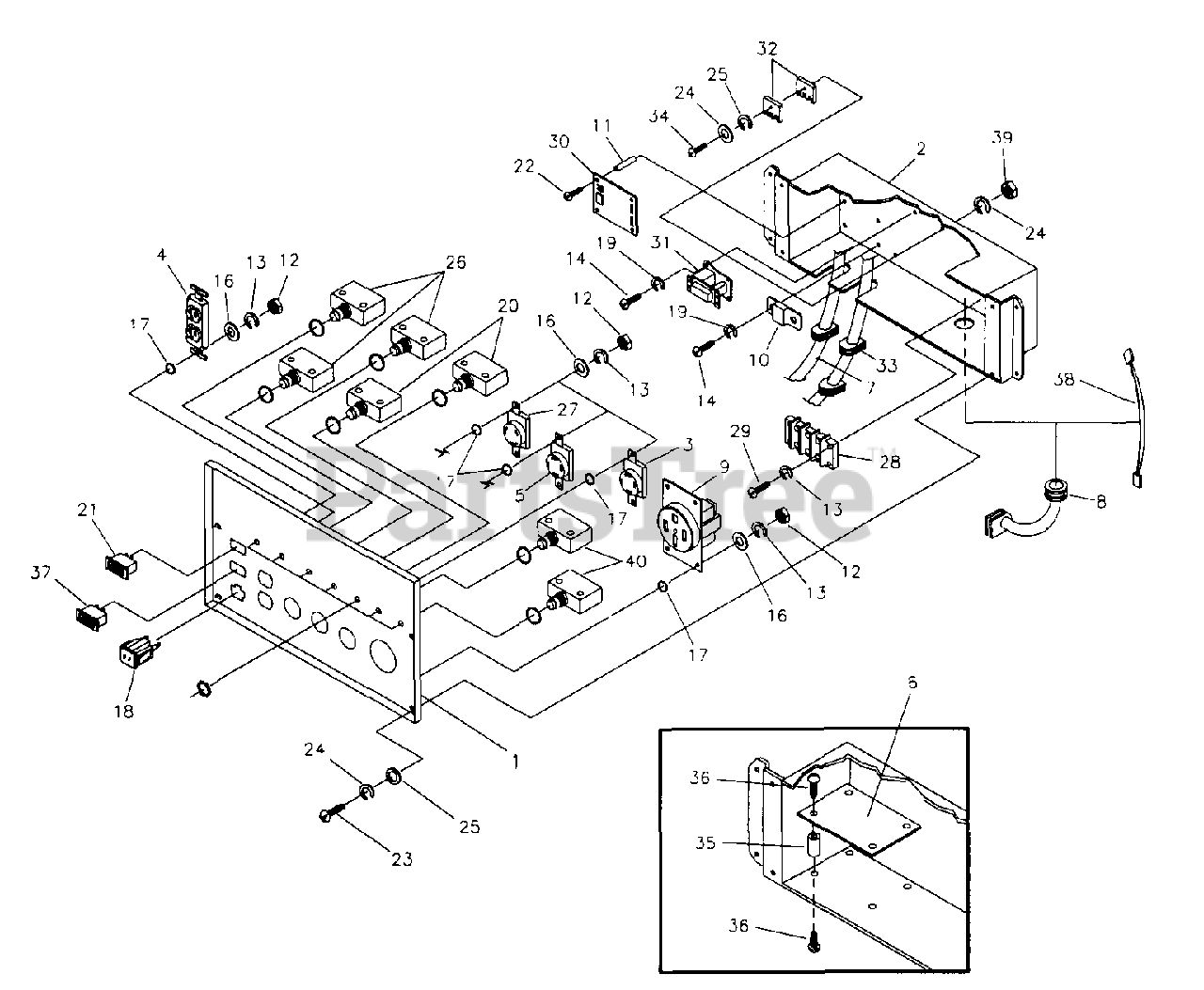

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton AB4432

PANEL, Control
(Superseded to AB4432GS)

$34.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B95906

BOX, Control

$

$

Currently unavailable

3

Briggs & Stratton 43437

OUTLET, 120/240V, 30 Amp Locking Type

$

$

Not available

4

Briggs & Stratton 68759

OUTLET, 120V, 20 Amp Duplex
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

5

Briggs & Stratton 68868

OUTLET, 120V, 30 Amp Locking Type
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 96476

BOARD, System Control
(Superseded to 96476GS)

$336.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4434

ASSEMBLY, Engine Harness

$

$

Currently unavailable

8

Briggs & Stratton 90576

GROMMET, Rubber
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton B4262

OUTLET, 120/240V 50 Amp
(Superseded to B4262GS)

$142.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

CIRCUIT BREAKER
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929

STAND OFF, 1/2" Hex
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

LOCK WASHER, #8 M4

$

$

Not available

14

Briggs & Stratton 43181

SCREW, M3 - .05 x 10mm
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 38150

FLAT WASHER, #8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

WASHER, #8 Shakeproof
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 90418

OUTLET, 12V DC Snap
(Superseded to 90418GS)

$

$

Not available

19

Briggs & Stratton 43182

LOCK WASHER, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

75207A

CIRCUIT BREAKER, 30 Amp

$

$

Not available

21

Briggs & Stratton 78653

SWITCH, Run - Stop
(Superseded to 78653GS)

$

$

Not available

22

Briggs & Stratton 93986

SCREW, M3 - 0.5 x 20mm
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91526

SCREW, M5 - .08 x 12mm

$

$

Not available

24

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897

FLAT WASHER, M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 Amp
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

27

Briggs & Stratton 74190

OUTLET, 120V/20A

$

$

Not available

28

Briggs & Stratton 92953

BLOCK, 50 Amp, 3 - Terminal
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 80077

SCREW, M4 x 20mm
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94117

BOARD, Idle Control
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

31

Briggs & Stratton 84028

TRANSFORMER, Idle Control
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

33

Briggs & Stratton 84135

GROMMET, Rubber
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 79224

SCREW, M5 - 0.8 x 30mm

$

$

Not available

35

Briggs & Stratton 64525

STAND OFF, 3/4" Hex

$

$

Currently unavailable

36

Briggs & Stratton 64526

SCREW, #6-32 x 3/8" Tap

$

$

Not available

37

Briggs & Stratton 82538

SWITCH, On - Off
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 96471

ASSEMBLY, Extension Cord

$

$

Not available

39

Briggs & Stratton 51716

HEXNUT, M5 - 0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4445

CIRCUIT BREAKER, 45 Amp
(Superseded to B4445GS)

$161.99

$

Usually ships in 2-12 days

0
