9801-3 - Generac EXL 10,000 Watt Portable Generator Rotor And Stator Parts Diagram

EXL 10,000 Watt Portable Generator

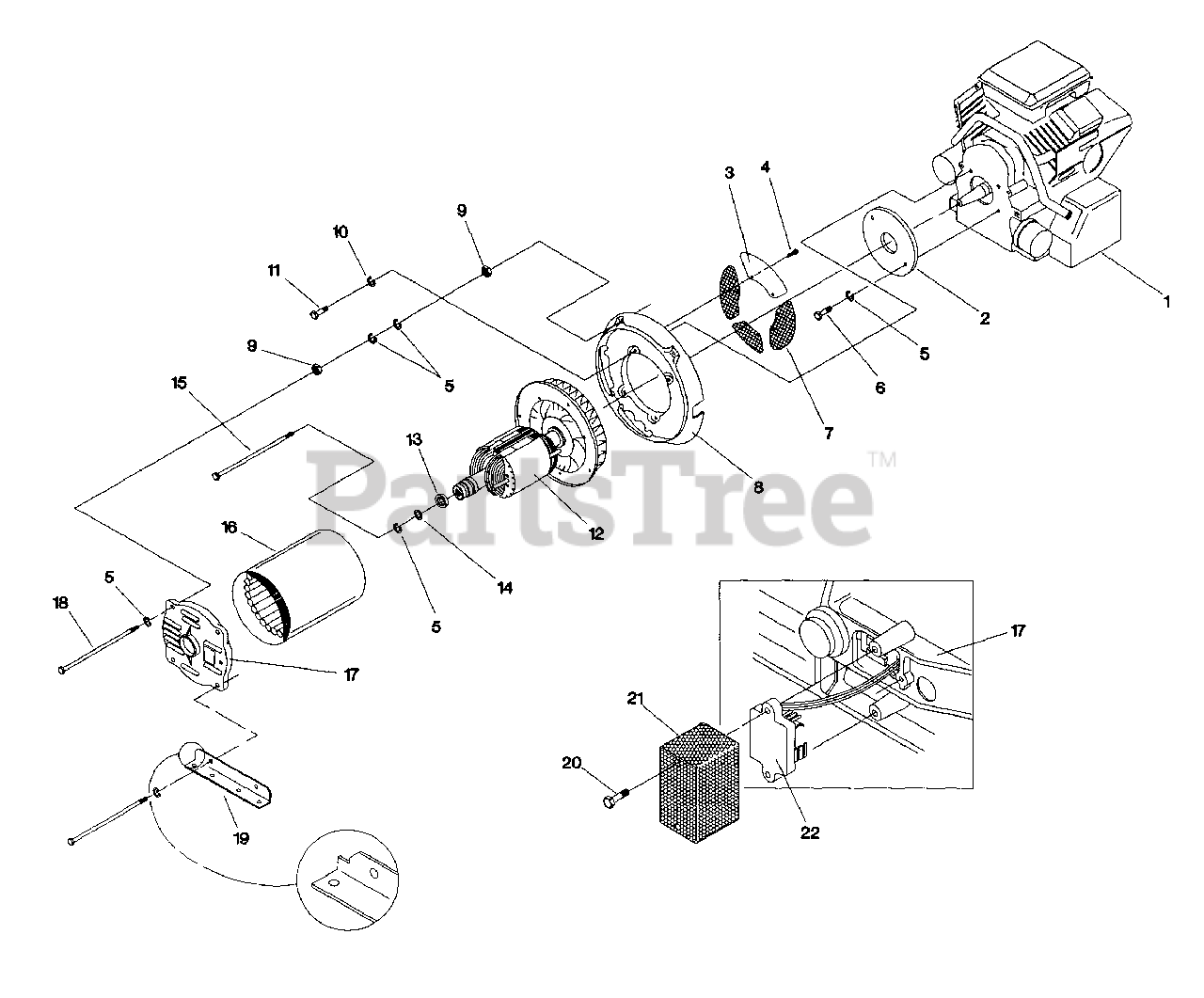

Rotor And Stator Parts Diagram

  • Title
1

NSP

ENGINE, Generac Power Systems GN 570

$

$

Not available

2

Briggs & Stratton B55277

GUARD, Center
(Superseded to B55277GS)

$94.99

$

Usually ships in 2-12 days

0

3

$

$

Currently unavailable

4

Briggs & Stratton 46852

SCREW, No. 10-32 x 1/4"

$

$

Not available

5

Briggs & Stratton 22129

WASHER, 5/16" Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 86307

CAPSCREW, 5/16"-24 x 3/4" Hex Head
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton B55275

GUARD, Fan
(Superseded to B55275GS)

$63.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2700

CASTING, Adapter

$

$

Currently unavailable

9

Briggs & Stratton 24114

NUT, 5/16-24" Hex

$

$

Not available

10

Briggs & Stratton 22237

WASHER, 3/8" Lock

$

$

Not available

11

Briggs & Stratton 23152

CAPSCREW, 3/8"-16 x 3/4" Hex Head
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92381

ASSEMBLY, Rotor 10-KW
(Superseded to 92381GS)

$

$

Not available

13

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 50190

WASHER, 5/16" Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 53365

CAPSCREW, 5/16"-24 x 10.75" Hex Head
(Superseded to 53365GS)

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B94983

ASSEMBLY, Stator 10-KW

$

$

Currently unavailable

17

Briggs & Stratton 49410A

CARRIER, Rear Bearing
(Superseded to 49410AGS)

$

$

Not available

18

Briggs & Stratton 77324

CAPSCREW, 5/16"-24 x 12.25 Hex Head

$

$

Not available

19

Briggs & Stratton B77303

SUPPORT, Alternator
(Superseded to B77303GS)

$49.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 66849A

SCREW, M5-0.8 x 20 Taptite
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B96423

SCREEN, Finger Guard

$

$

Not available

22

Briggs & Stratton 92769

ASSEMBLY, Power Regulator
(Superseded to 92769GS)

$

$

Not available
