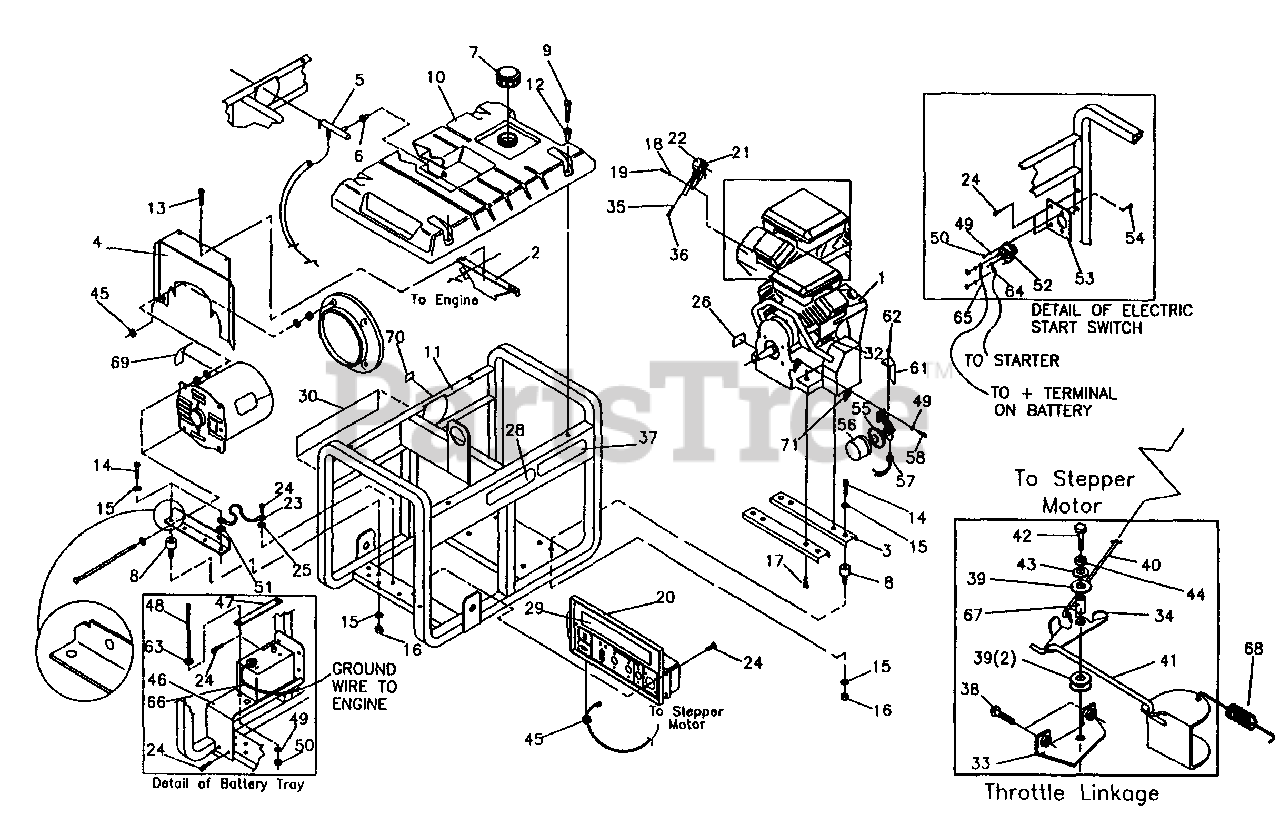

9801-2 - Generac EXL 10,000 Watt Portable Generator Generator Parts Diagram

EXL 10,000 Watt Portable Generator

Generator Parts Diagram

  • Title
1

NSP

ENGINE, V-Twin Spec. 93571

$

$

Not available

2

Briggs & Stratton B93074

SHIELD, Heat
(Superseded to B93074GS)

$136.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A77304

SUPPORT, Engine
(Superseded to A77304GS)

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B90916

STATOR, Heat Shield
(Superseded to B90916GS)

$198.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

VALVE, Fuel Shut-Off
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

BUSHING, Fuel Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 90878

CAP, Fuel Tank
(Superseded to 846987)

$21.99

$

In Stock, Qty 5

0

8

Briggs & Stratton 35097

MOUNTS, Vibration
(Superseded to 35097GS)

$16.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 78831B

CAPSCREW, M6-1.0 x 60mm
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton 93615

TANK, Fuel
(Superseded to 93615GS)

$

$

Not available

$

$

Currently unavailable

12

Briggs & Stratton 83465

GROMMET, Fuel Tank Mounting
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 56892

CRIMPTITE, 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152

CAPSCREW, 3/8-16 x 3/4" Lg.
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

WASHER, 3/8" Lock

$

$

Not available

16

Briggs & Stratton 22241

NUT, 3/8-16 Hex

$

$

Not available

17

Briggs & Stratton 75246

SELF-TAPPING, 3/8-16 x 1-1/4" Lg.
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22129

WASHER, M8-Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 39253

CAPSCREW, M8-1.25 x 16
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

20

Briggs & Stratton 96054

ASSEMBLY, Control Panel
(Superseded to 96054GS)

$

$

Not available

21

Briggs & Stratton 96867

ASSEMBLY, Stepper Motor
(Superseded to 96867GS)

$261.99

$

Usually ships in 2-12 days

0

22

-----

UNKNOWN

$

$

Not available

23

18553621

ASSEMBLY, Ground Wire

$

$

Not available

24

Briggs & Stratton 86292

CAPSCREW, #10 Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

WASHER, #10 Shakeproof
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661P

DECAL, Engine #93571

$

$

Currently unavailable

28

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 96056

DECAL, Control Panel

$

$

Not available

30

Briggs & Stratton 96055

DECAL, Side Panel

$

$

Not available

32

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 95349

PLATE, Adjust
(Superseded to 95349GS)

$7.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95348

BELL, Crank
(Superseded to 95348GS)

$7.99

$

Usually ships in 2-12 days

0

35

-----

UNKNOWN

$

$

Not available

36

-----

UNKNOWN

$

$

Not available

37

Briggs & Stratton 93826

DECAL, Start Instruction
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 75477

SCRW, M5-0.8 x 20Lg. Phillips Hd.
(Superseded to 75477GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 96716

WASHER, Nylon
(Superseded to 96716GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 95921

LINKAGE, Bell Crank to Throttle
(Superseded to 95921GS)

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 95920

LINKAGE, Stepper Motor to Bell Crank
(Superseded to 95920GS)

$16.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 33141

CAPSCREW, #10-32 x 3/4" Hex Hd.
(Superseded to 33141GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 51713

WASHER, M5 Flat
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 49226

WASHER, M5 Lock
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 62265

GROMMET, Rubber
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton A84650

TRAY, Battery
(Superseded to A84650GS)

$55.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton A44951

BAR, Battery Hold-Down
(Superseded to B44951GS)

$10.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 45000

SCREW, 1/4-20" NC x 7" Hx Hd. Mach.
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 22097

WASHER, 1/4" Lock
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 22127

NUT, 1/4"-20 Hex

$

$

Not available

51

Briggs & Stratton 22261

SHAKEPROOF, 3/8" Internal
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

52

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

53

Briggs & Stratton 78289

BRACKET, Starter Switch
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 22287

CAPSCREW, 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 90914

ADAPTER, Oil Filter

$

$

Not available

56

Briggs & Stratton 70185

FILTER, Oil
(Superseded to 70185GS)

$

$

Not available

57

Briggs & Stratton 60108

SWITCH, Low Oil Pressure

$

$

Not available

58

Briggs & Stratton 40945

CAPSCREW, M6-1.0 x 20 Socket Hd
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

61

Briggs & Stratton A93841

SHIELD, Oil Sensor Heat

$

$

Currently unavailable

62

Briggs & Stratton 46852

TAPTITE, #10-32 x 1/4"

$

$

Not available

63

22473

WASHER, 1/4" Flat

$

$

Not available

64

Briggs & Stratton 18253621

WIRE ASSEMBLY, Starter
(Superseded to 18253621GS)

$28.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 18353621

WIRE ASSEMBLY, Battery
(Superseded to 18353621GS)

$29.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 18453621

WIRE ASSEMBLY, Ground
(Superseded to 18453621GS)

$34.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 96378

SPACER
(Superseded to 96378GS)

$7.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 96717

SPRING
(Superseded to 96717GS)

$

$

Not available

69

-----

UNKNOWN

$

$

Not available

70

Briggs & Stratton 73054

DECAL, Fuel Shut Off

$

$

Not available

71

Briggs & Stratton 68548

GASKET, Oil Filter Adapter

$

$

Not available
