9801-0 - Generac EXL 10,000 Watt Portable Generator Generator Control Panel (10/95) Parts Diagram

EXL 10,000 Watt Portable Generator

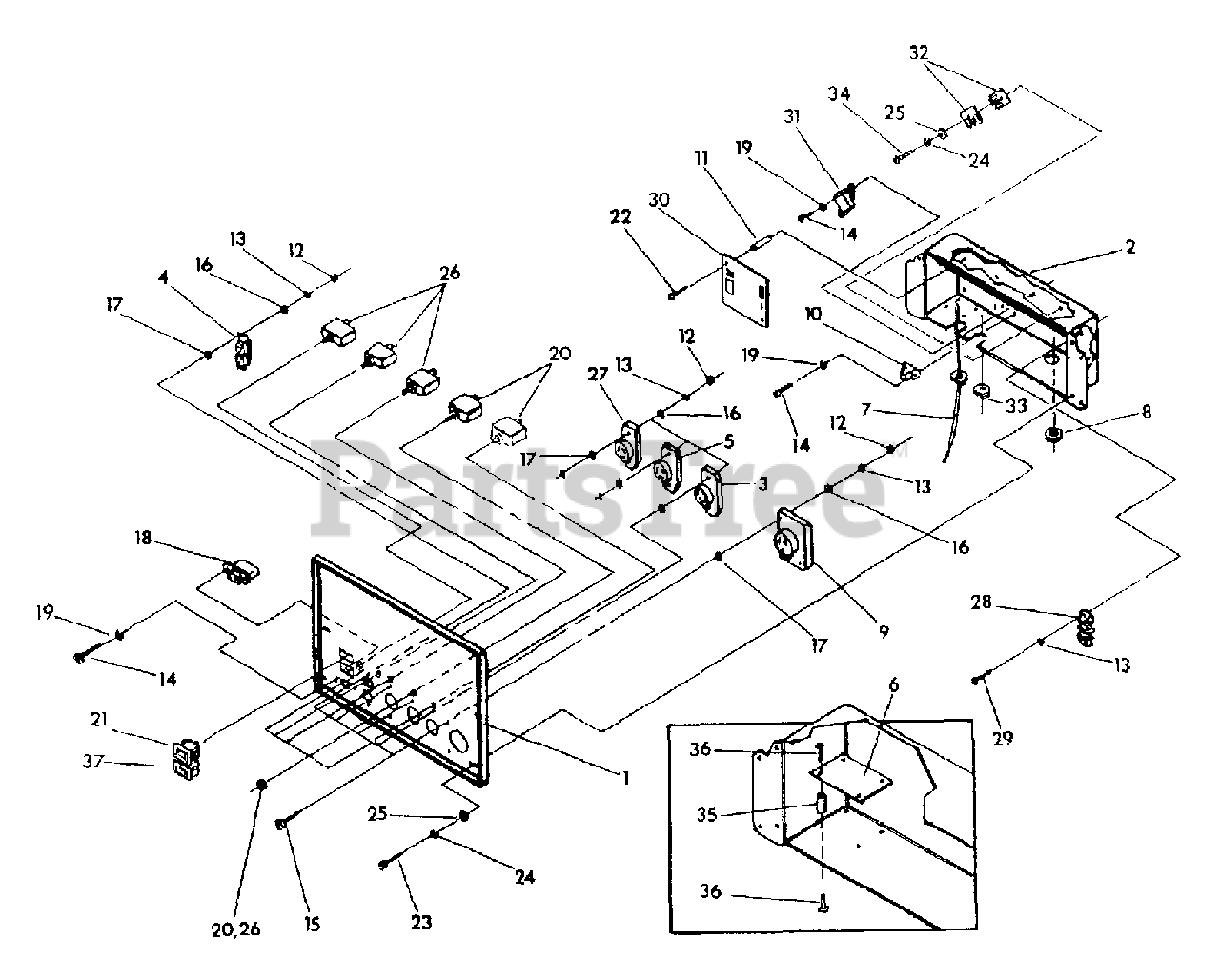

Generator Control Panel (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 95909

Control Panel

$

$

Not available

2

Briggs & Stratton 95906

Control Box

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240V, 30 Amp Locking Type Outlet

$

$

Not available

4

Briggs & Stratton 68759

120 Volts, 20 Amp Duplex GFCI Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 68868

120 Volts 30 Amp Locking Type Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 96476

System Control Board
(Superseded to 96476GS)

$336.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 96067

Engine Harness Assm
(Superseded to 96067GS)

$52.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90576

Rubber Grommet
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 74191

250 Volts, 50 Amp Outlet
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929

1/2 Hex Stand-off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

#8 Lockwasher

$

$

Not available

14

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

08 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66822

12V DC Outlet & Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

75207A

30 Amp Circuit Breaker

$

$

Not available

21

Briggs & Stratton 78653

Run-Stop Switch
(Superseded to 78653GS)

$

$

Not available

22

Briggs & Stratton 93986

M3-0.5 x 20mm Screw
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91526

M5-0.8 x 12mm Screw

$

$

Not available

24

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207

20 Amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 74190

120v/20A Twistlock Outlet

$

$

Not available

28

Briggs & Stratton 92953

50-amp, 3-terminal Block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 80077

M4-0.7 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94117

Idle Control Board
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

31

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

33

Briggs & Stratton 84135

Rubber Grommet
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 79224

M5-0.8 x 30mm Screw

$

$

Not available

35

Briggs & Stratton 64525

3/4" Hex Stand-Off

$

$

Currently unavailable

36

Briggs & Stratton 64526

#6-32 x 3/8" Tap Screw

$

$

Not available

37

Briggs & Stratton 82538

ON-OFF Switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0
