9800-1 - Generac EXL 8,000 Watt Portable Generator Generator Parts Diagram

EXL 8,000 Watt Portable Generator

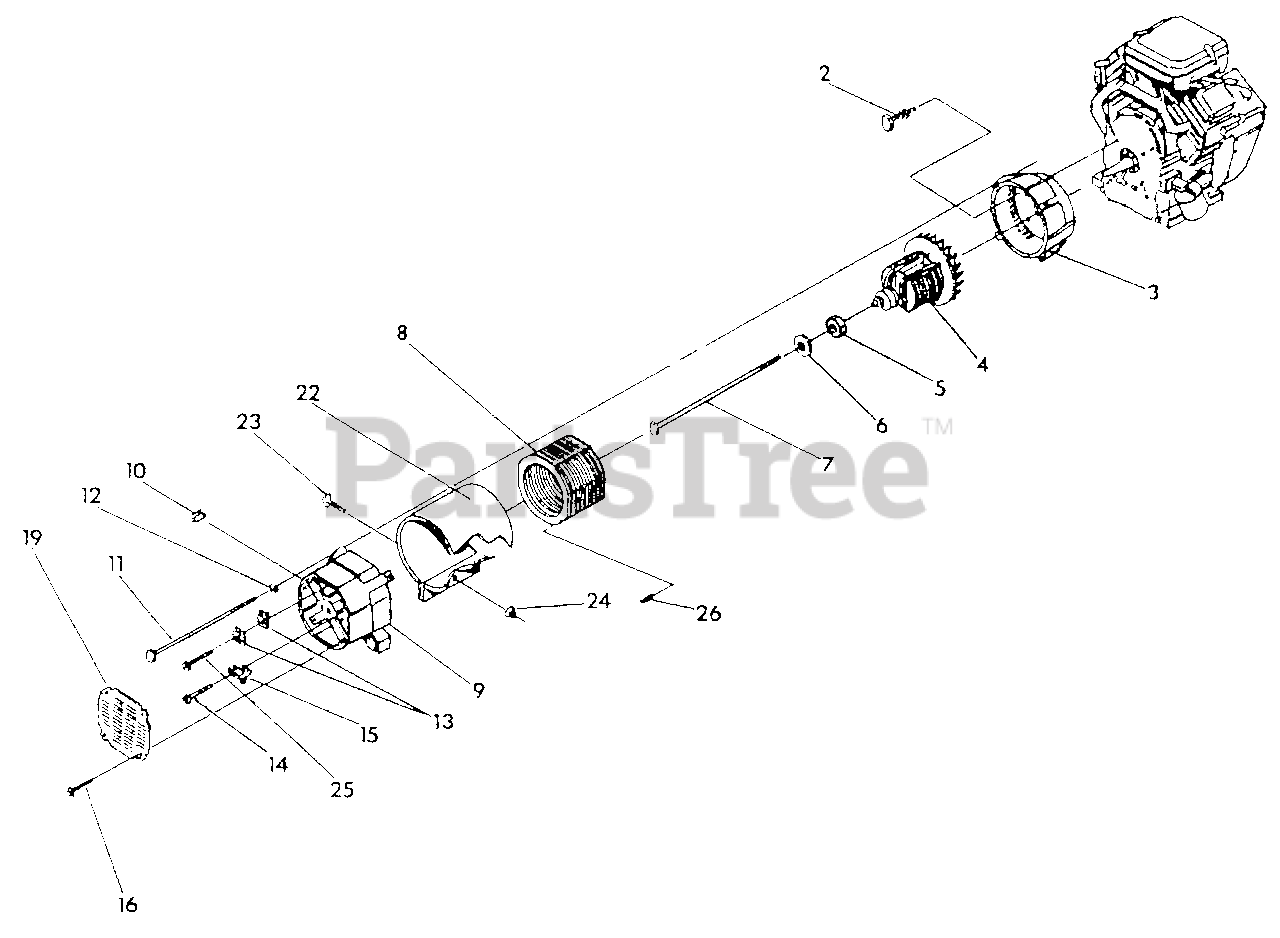

Generator Parts Diagram

  • Title

2

Briggs & Stratton 86307

5/16"-24 x 3/4" Hex Head Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 66365G

Engine Adaptor Housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92553G

Rotor Assembly
(Superseded to 92553GGS)

$697.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

Flat Washer

Note: (Special)

$

$

Currently unavailable

7

Briggs & Stratton 51810

5/16"-24 x 11" Rotor Bolt
(Superseded to 51810GS)

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 94982G

Stator Assembly
(Superseded to 94982GGS)

$620.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton SRV66825B

Rear Bearing Carrier

$

$

Currently unavailable

10

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66449K

M6-1.0 x 200mm Stator Bolt
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

14

Briggs & Stratton 66849

M5-0.8 x 16mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 78388

Rear Bearing Carrier Panel
(Superseded to B4871GS)

$

$

Not available

22

Briggs & Stratton 81887D

Alternator Wrapper

$

$

Not available

23

Briggs & Stratton 52618

M5-0.8 x 12mm Hex Head Screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 52856

M5-0.8 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66849C

M5-0.8 x 20mm Taptite Screw
(Superseded to 66849CGS)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 81917

Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0
