980 - Weed Eater Blower FUEL HOUSING Parts Diagram

Blower

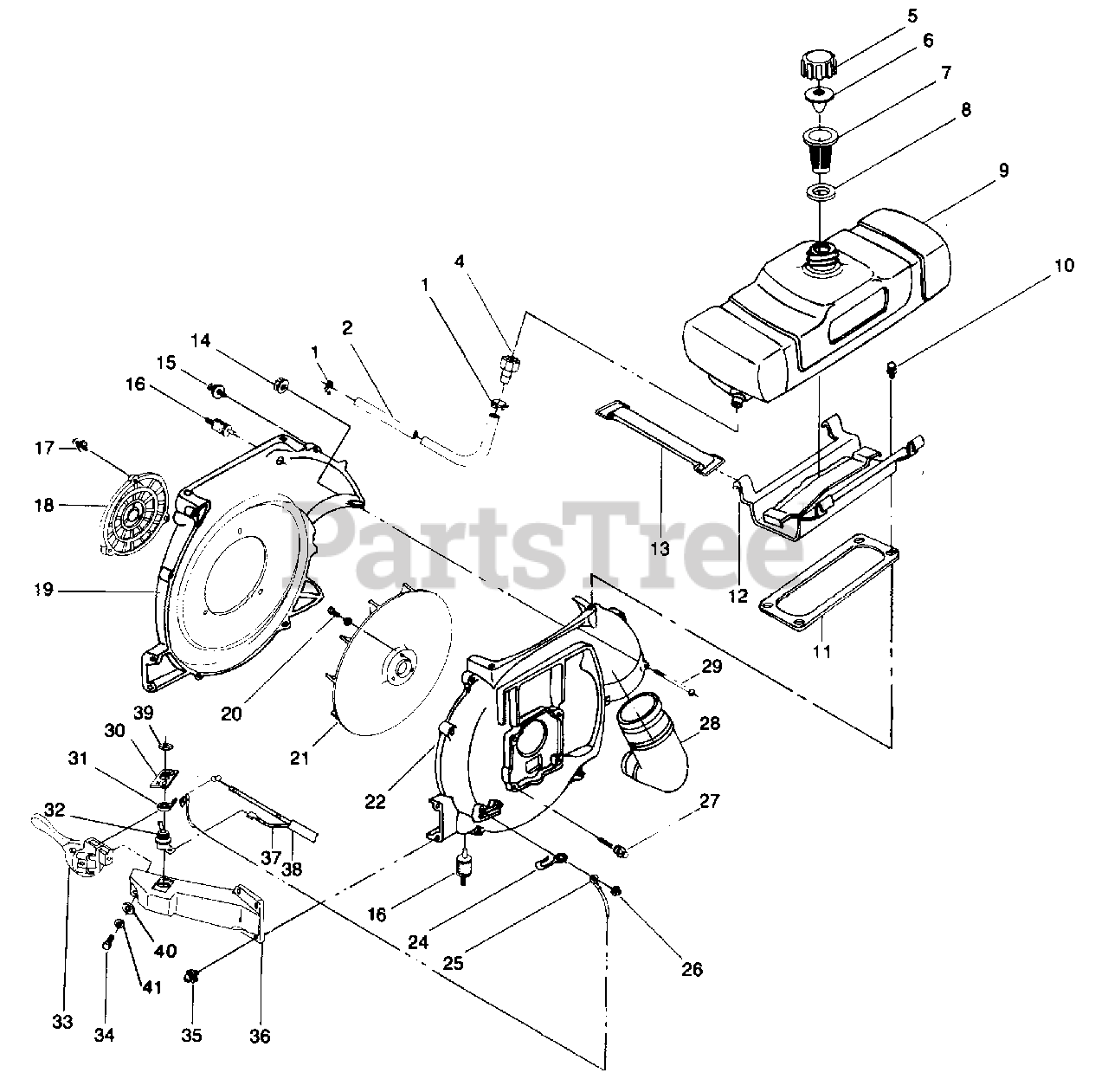

FUEL HOUSING Parts Diagram

  • Title
1

Poulan 094287

Clamp - Fuel Housing (obsolete)

Note: (obsolete)

$

$

Not available

2

Poulan 530094286

Fuel Hose

$

$

Not available

4

Poulan 530094283

Union Assembly

$

$

Not available

5

Poulan 530094281

Cap - Fuel

$

$

Not available

6

Poulan 530094280

Breather

$

$

Not available

7

Poulan 530094279

Strainer

$

$

Not available

8

Poulan 530094278

Washer - Rubber

$

$

Not available

9

Poulan 530094277

Fuel Tank

$

$

Not available

10

Poulan 530094276

Bolt (6 x 12mm) - Hex

$

$

Not available

11

$

$

Not available

12

Poulan 530094273

Tank Base

$

$

Not available

13

Poulan 530094282

Tank Strap - Rubber

$

$

Not available

14

Poulan 530094265

Flange Nut (5mm)

$

$

Not available

15

Poulan 530094268

Bolt (6 x 25mm) - Hex

$

$

Not available

16

Poulan 530094271

Isolator

$

$

Not available

17

Poulan 530094269

Screw (6 x 14mm)

$

$

Not available

18

Poulan 530094261

Fan Cover

$

$

Not available

19

Poulan 530094258

Fan Case - Front

$

$

Not available

20

Poulan 530094267

Bolt (6 x 25mm) - Hex

$

$

Not available

$

$

Not available

22

Poulan 530094259

Fan Case - Rear

$

$

Not available

24

Poulan 530094263

Clip - Fuel Hose

$

$

Not available

25

Poulan 530094294

Grounding Wire

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 530094270

Screw (6 x 12mm)

$

$

Not available

27

Poulan 530094266

Bolt (6 x 45mm) - Hex

$

$

Not available

28

$

$

Not available

29

Poulan 530094264

Screw (5 x 55mm)

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530094292

Switch Plate

$

$

Not available

31

Poulan 530094293

Grounding Connector

$

$

Not available

32

Poulan 530094291

Grounding Switch

$

$

Not available

33

Poulan 530094290

Throttle Lever

$12.99

$

Usually ships in 3-10 days

0

34

Poulan 530094298

Bolt (6 x 10mm) - Hex

$

$

Not available

35

Poulan 530094289

Screw (5 x 16mm)

$

$

Not available

36

Poulan 530094288

Control Arm

$

$

Not available

37

Poulan 530094296

Electrical Wire

$

$

Not available

38

Poulan 530094297

Tube - Throttle Wire

$

$

Not available

39

Poulan 530094419

Nut - Hex - 11mm

$

$

Not available

40

Poulan 094420

Washer - Flat - 6mm (outside vendor)

Note: (Outside vendor)

$

$

Not available

41

Poulan 530094421

Lockwasher - 6mm

$

$

Not available
