98-9240 - Toro ProLine Conversion Kit for GTS 200 BBC Engine ENGINE GTS-200 Parts Diagram

ProLine Conversion Kit for GTS 200 BBC Engine

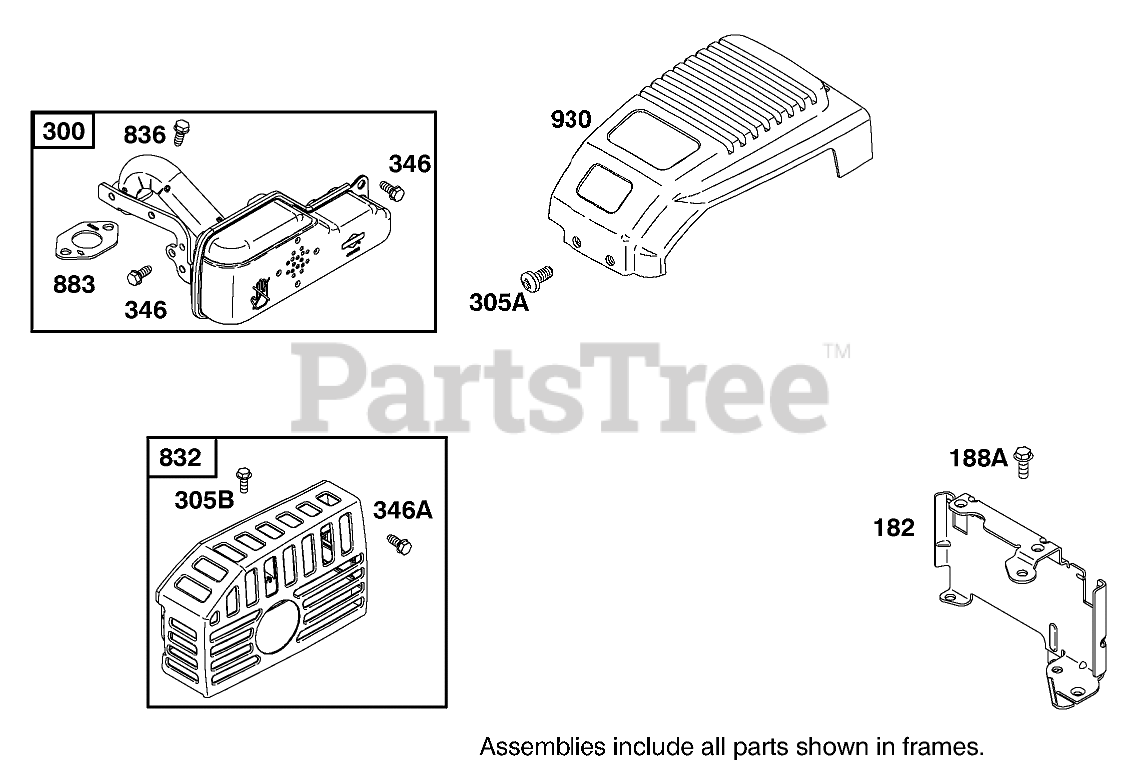

ENGINE GTS-200 Parts Diagram

  • Title
182

Toro 98-9205

BRACKET-TANK, FUEL

$

$

Not available

188A

Toro 98-9202

SCREW-BRACKET, TANK

$

$

Not available

300

Toro 99-0995

MUFFLER-EXHAUST

$

$

Not available

305A

Toro 99-9204

SCREW-HEX, METRIC
(Superseded to 99-9105)

$11.99

$

Usually ships in 3-6 days

0

305B

Toro 99-0998

HEX SCREW

$

$

Not available

346

Toro 99-1047

SCREW-HH

$

$

Not available

346A

Toro 99-0999

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

832

Toro 98-9206

GUARD-MUFFLER

$145.99

$

Usually ships in 3-6 days

0

836

Toro 99-0941

SCREW-HH

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Vavel Overhaul Gasket Set-Part No. 99-0904

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

930

Toro 98-9203

GUARD-REWIND

$79.99

$

Usually ships in 3-6 days

0
