98-9230 - Toro ProLine Conversion Kit for GTS 200 ZS Engine ENGINE GTS-200 Parts Diagram

ProLine Conversion Kit for GTS 200 ZS Engine

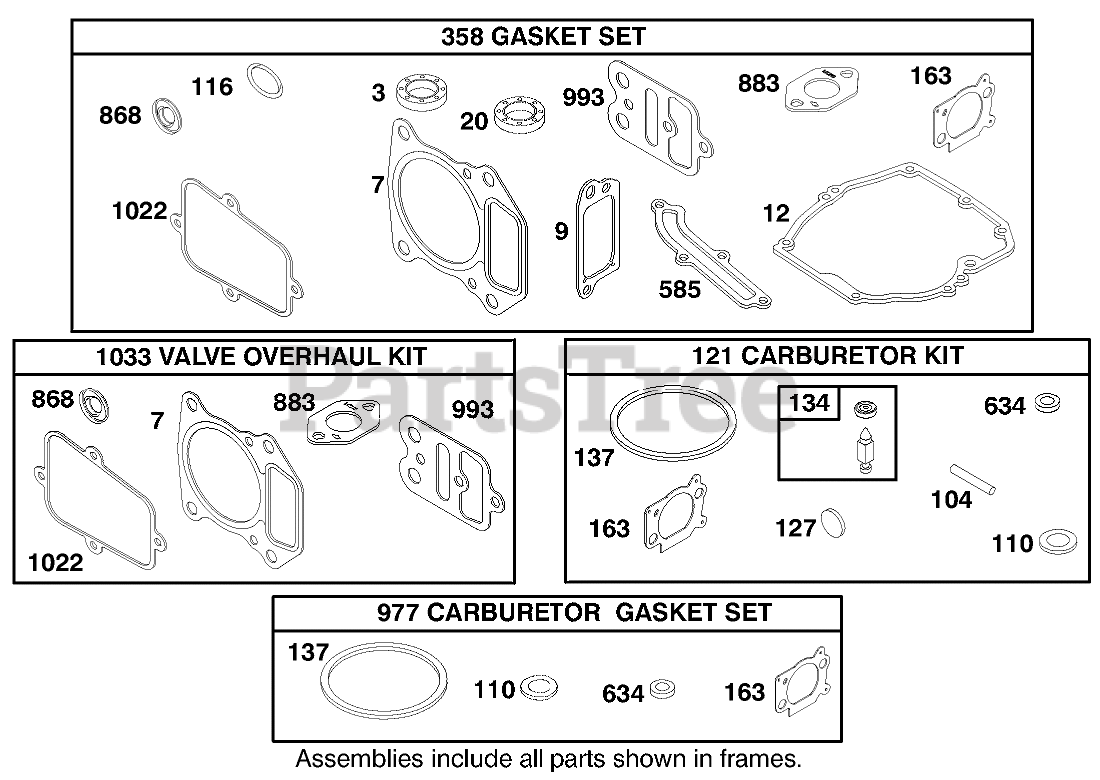

ENGINE GTS-200 Parts Diagram

  • Title

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$4.49

$

Usually ships in 3-6 days

0

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 99-0902

$4.49

$

Usually ships in 3-6 days

0

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Gasket Set-Part No. 99-0902

$21.99

$

Usually ships in 3-6 days

0

20

Toro 99-0955

Oil Seal
(Superseded to 77-7570)

Note: Included in Gasket Set-Part No. 99-0902

$24.99

$

In Stock, only 2 left!

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Kit-Part No. 99-0901

$

$

Not available

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 99-0901

$

$

Not available

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 99-0903

$

$

Not available

116

Toro 99-0916

O-RING

Note: Included in Gasket Set-Part No. 99-0902

$8.99

$

Usually ships in 3-6 days

0

121

Toro 99-0901

Carburetor Kit
(Superseded to 100-5036)

$22.99

$

In Stock, Qty 8

0

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 99-0901

$

$

Not available

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Kit-Part No. 99-0901

$24.99

$

Usually ships in 3-6 days

0

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 99-0903

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 99-0901

$

$

Not available

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-Part No. 99-0903

$4.49

$

In Stock, Qty 20+

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Gasket Set-Part No. 99-0902

$4.49

$

In Stock, Qty 20+

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Kit-Part No. 99-0901

$4.49

$

In Stock, Qty 20+

0

358

Toro 99-0902

Gasket Set
(Superseded to 100-5035)

$

$

Not available

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 99-0902

$13.99

$

Usually ships in 3-6 days

0

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 99-0903

$

$

Not available

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 99-0901

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$

$

Not available

977

Toro 99-0903

Gasket Set-Carburetor
(Superseded to 100-5034)

$

$

Not available

993

Toro 99-0948

PLATE-GASKET

Note: Included in Gasket Set-Part No. 99-0902

$14.99

$

Usually ships in 3-6 days

0

993

Toro 99-0948

PLATE-GASKET

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$14.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Gasket Set-Part No. 99-0902

$24.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$24.99

$

Usually ships in 3-6 days

0

1033

Toro 99-0904

Gasket Set-Valve Overhaul
(Superseded to 117-7558)

$

$

Not available
