9797-0 - Generac EXL 5,500 Watt Portable Generator, Rev 2 (1995-10) Cradle and Generator Parts Diagram

EXL 5,500 Watt Portable Generator, Rev 2

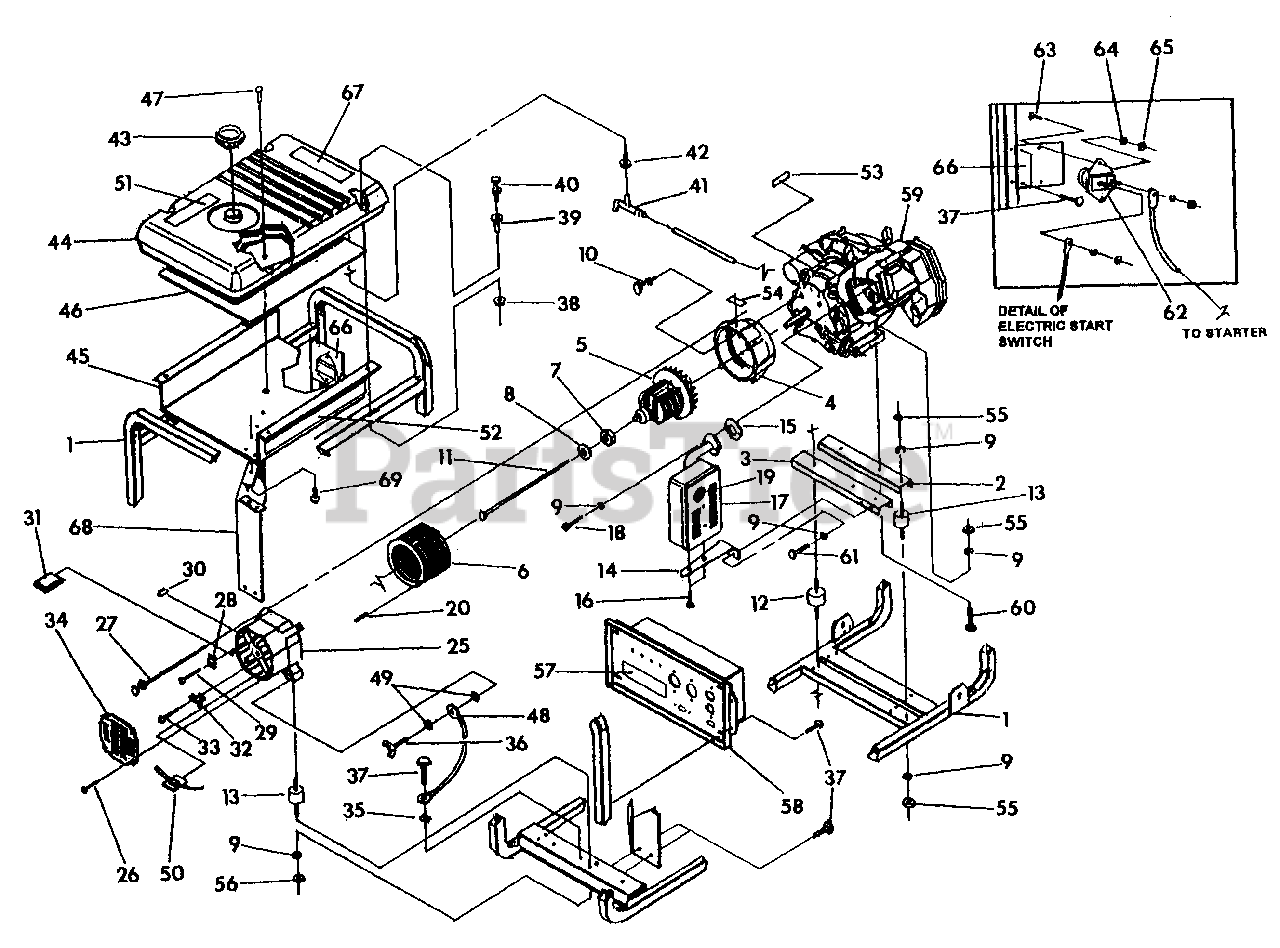

Cradle and Generator Parts Diagram

  • Title

1

Briggs & Stratton 92432

Cradle

$

$

Currently unavailable

2

Briggs & Stratton 92531

Engine Support

$

$

Currently unavailable

3

Briggs & Stratton 92731

Engine & Muffler Support
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

Engine Adaptor Housing
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92678G

Rotor Assembly
(Superseded to 92678GGS)

$

$

Not available

6

Briggs & Stratton 94980G

Stator Assembly
(Superseded to 94980GGS)

$440.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 Flat Washer

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

5/16"-24 x 3/4" Screw
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 28092

5/16"-24 x 9-1/4" Capscrew
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

Vibration Mount
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532

Muffler Bracket
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239

Exhaust Gasket
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 91153

Muffler
(Superseded to A7433GS)

$

$

Not available

18

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

19

Briggs & Stratton 83083

Spark Arrest Screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 81917

4mm x 10mm Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825C

Rear Bearing Carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

M5-0.8 x 12mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308A

M6-1.0 x 145mm Stator Bolt
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849C

M5-0.8 x 30mm Screw
(Superseded to 66849CGS)

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

Drive Module
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 66849

M5-0.8 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

35

Briggs & Stratton 22769

Washer, #10 Int. Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

No. 10 Self Drilling Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 78831B

M6-1.0 x 60mm Screw
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 92035

Fuel Tank

$

$

Not available

45

Briggs & Stratton 92039

Heat Shield

$

$

Currently unavailable

46

Briggs & Stratton 92665

#2-1/4" thick Insulation
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

Insulation Clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

Ground Wire

$

$

Not available

49

Briggs & Stratton 26850

M6 Shakeproof Washer

$

$

Not available

50

Briggs & Stratton 57893

Cable Tie Mount

$

$

Currently unavailable

51

Briggs & Stratton 92982

Decal-Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 96057

Decal-Heat Shield
(Superseded to 96057GS)

$11.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 78817

Decal-Data
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 81886

Decal-STA-BIL
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 25244

5/16"-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

56

Unknown

$

$

Not available

57

Briggs & Stratton 96058

Decal-Control Panel
(Superseded to 96058GS)

$12.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 92630

Control Box Assembly
(Superseded to 92630GS)

$490.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 96323

11 H.P. Engine

$

$

Currently unavailable

60

Briggs & Stratton 22531

5/16"-18 x 1-3/4" Capscrew
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22142

5/16"-18 x 3/4" Capscrew
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 77282

Starter Switch

$

$

Not available

63

Briggs & Stratton 22287

1/4"-20 x 3/4" Screw
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22127

1/4"-20 Hex Nut

$

$

Not available

66

Briggs & Stratton 78289

Starter Switch Bracket
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 93826

Decal-Starting Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 96068

Heat Shield

$

$

Currently unavailable

69

Briggs & Stratton 56893

No. 10-24 x 1/2" Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0
