9794-0 - Generac XE 3,250 Watt Portable Generator Generator And Cradle (10/95) Parts Diagram

XE 3,250 Watt Portable Generator

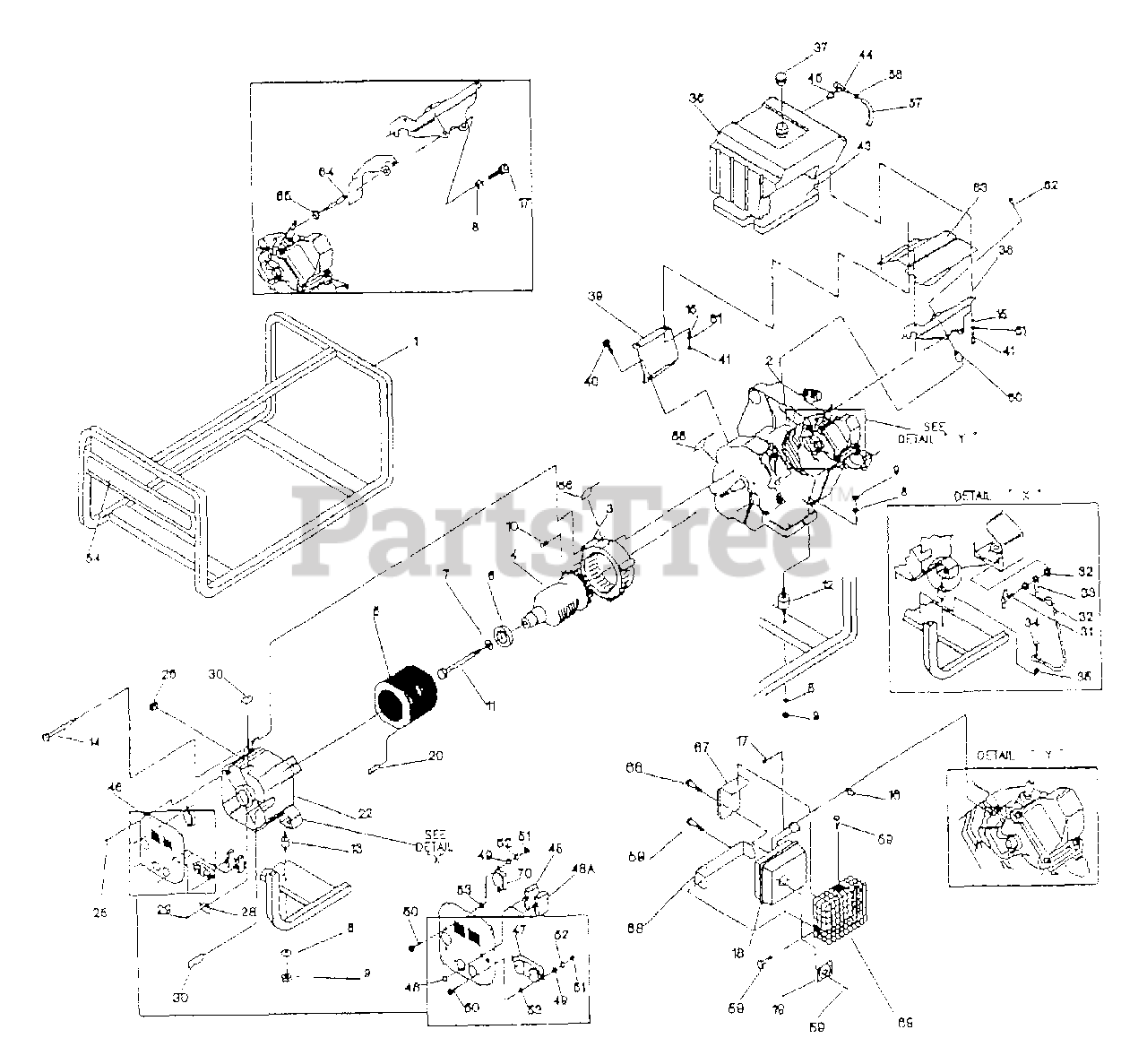

Generator And Cradle (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 93643

3250 XL Cradle

$

$

Currently unavailable

2

Briggs & Stratton 96004

6.5 HP XL Engine

$

$

Currently unavailable

3

Briggs & Stratton 66365

Engine Adaptor Housing
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 94997G

Rotor Assembly
(Superseded to 94997GGS)

$489.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 94996G

Stator Assembly
(Superseded to 94996GGS)

$

$

Not available

6

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 67451

M8 Special Flat Washer

$

$

Currently unavailable

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

10

Briggs & Stratton 86307

5/16-24 x 3/4" Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 53122

5/16-24 x 6-1/2" Capscrew
(Superseded to 53122GS)

$10.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 85651

Vibration Mount
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 85652

Vibration Mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

14

Briggs & Stratton 86308

M6-1.0 x 115mm Stator Bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 89476

Exhaust Gasket
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

18

Briggs & Stratton 88688

Muffler
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 81917

M4 x 10mm Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

22

UNKNOWN

$

$

Not available

25

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 91825

Brush Holder Assembly

$

$

Not available

29

Briggs & Stratton 66849

M5-0.7 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84242

Grommet
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 26850

M6 Shakeproof Washer

$

$

Not available

33

14353621

Ground Wire

$

$

Not available

34

Briggs & Stratton 86292

#10 Self-drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 23672

#10 Shakeproof Washer

$

$

Currently unavailable

36

Briggs & Stratton 89620

Fuel Tank

$

$

Currently unavailable

37

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 94547

Fuel Tank Front Bracket
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

39

Briggs & Stratton 88317

Fuel Tank Rear Bracket

$

$

Currently unavailable

40

Briggs & Stratton 83512

M8-1.25 x 15mm Screw
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 26893

1/4"-20 x 3/4" Capscrew
(Superseded to 7026893YP)

$28.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 90562

Fiberglass lnsulation

$

$

Not available

44

Briggs & Stratton 80270

Plastic Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 95600

Control Panel Cover
(Superseded to 95600GS)

$24.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 68759

12OV, Duplex Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

48

Briggs & Stratton 94396B

20 amp Circuit Breaker
(Superseded to 94396BGS)

$30.99

$

Usually ships in 2-12 days

0

48A

Briggs & Stratton 94396A

15 amp Circuit Breaker
(Superseded to 94396AGS)

$35.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

51

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

53

Briggs & Stratton 23365

98 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 92982

Decal - Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 78817

Alternator Data Decal
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 81886

STA-BIL Decal
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 82580A

Fuel Hose

$

$

Not available

58

Briggs & Stratton 48031G

3/16" Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 90299

M5 x 10mm Screw

$

$

Not available

60

Briggs & Stratton 91224

Spacer - 20mm long 3/8" I.D. x 11/16" O.D.

$

$

Currently unavailable

61

22473

1/4" Flat Washer

$

$

Not available

62

Briggs & Stratton 91225

M8-1.25 x 35mm Screw

$

$

Not available

63

Briggs & Stratton 94659

Heat Shield
(Superseded to 691685)

$3.99

$

In Stock, Qty 5

0

64

Briggs & Stratton 91285

Tank Mount Head Bolt

$

$

Not available

65

Briggs & Stratton 92752

Flat Washer

$

$

Currently unavailable

66

Briggs & Stratton 56893

#10-24 x 1/2" Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

67

Briggs & Stratton 92535

Muffler Support Bracket

$

$

Currently unavailable

68

Briggs & Stratton 90300

Muffler Support Bracket
(Superseded to 90300GS)

$11.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 89712

Muffler Guard

$

$

Currently unavailable

70

Briggs & Stratton 68867

120/240 Volts, 20 amp Locking Type Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days
