9779-4 - Generac XL 6,500 Watt Portable Generator Wheel Kit Parts Diagram

XL 6,500 Watt Portable Generator

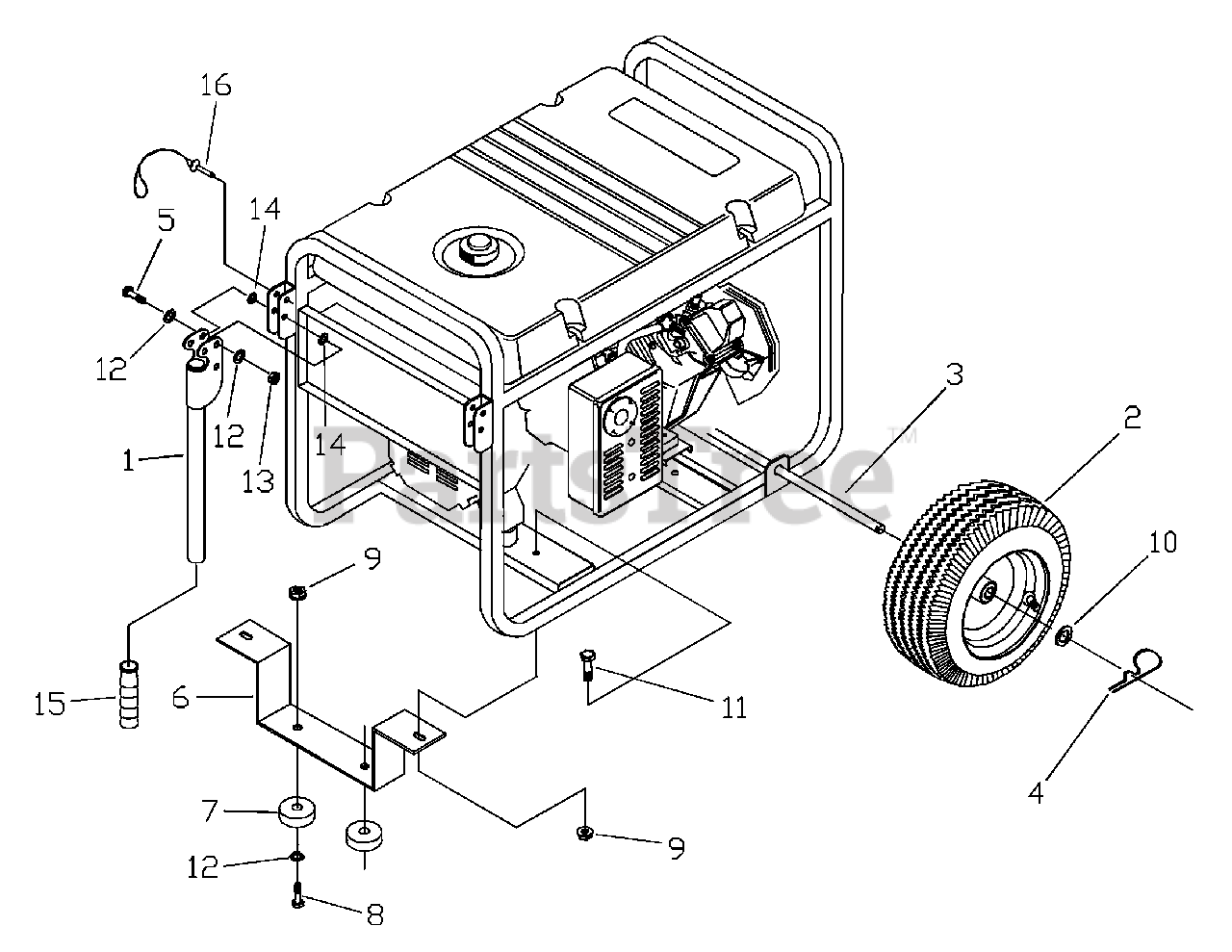

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton BB5586GS

HANDLE

$

$

Not available

2

Briggs & Stratton B4966GS

WHEEL
(Superseded to 209636GS)

$93.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 93693GGS

AXLE
(Superseded to 191267GGS)

$29.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 87005AGS

PIN, Retaining
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 39287GS

HHCS, M8 - 1.25 x 45

$3.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton B186927GS

LEG, Support

$

$

Not available

7

Briggs & Stratton 27007GS

MOUNT,Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 42909GS

CAPSCREW, Hex Hd. M8 - 1.25 x 30

$

$

Not available

9

Briggs & Stratton 52858GS

NUT, Lock M8

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 22247GS

WASHER,Wheel
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 6

0

11

Briggs & Stratton 39253GS

CAPSCREW, Hex Hd. - M8 - 1.25 x 20
(Superseded to 703988)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22145GS

WASHER, Flat, 5/16-M8
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 49820GS

NUT, M8 Nylok

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 187104GS

WASHER, Nylon

$

$

Not available

15

Briggs & Stratton B4605GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4135GS

PIN, with Lanyard

$

$

Not available
